Infrastructure-as-Code with Proxmox: GitOps - Terraform Pipeline

In this module, we’ll establish the strategies for developing and testing Terraform plans. We’ll finish the module by creating a production plan to clone the Debian 13 Packer template and deploy to Proxmox VE via the GitLab pipeline.

0xBEN0xBEN

Quick Recap

In the previous module, we expanded upon our GitOps pipelines by introducing best practices with Terraform plan development, testing locally, and applying in the pipeline.

• Briefly covered the use-case for Terraform and why professionals use it
• Introduced the development strategy
  • Local iterative refinement
    • Start with a blank slate
    • Build out the core directories and files
    • terraform init, terraform fmt, terraform validate, terraform plan
      • Check the output for any permissions or configuration issues
      • Fix any issues and terraform plan again
      • Monitor and repeat
    • terraform apply
      • Monitor the output on the console and in Proxmox VE
      • Fix any issues, terraform plan and terraform apply again
      • Monitor, repeat
    • terraform plan -destroy and terraform apply
  • Prepare the .gitignore file

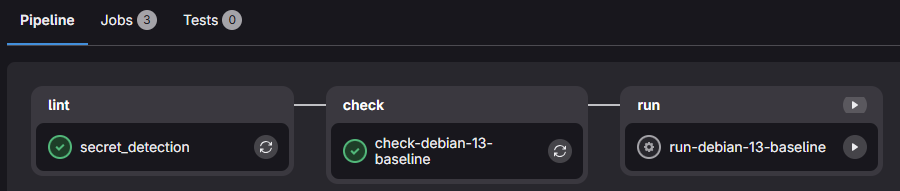

  • Prepare the .gitlab-ci.yml pipeline configuration
  • git add, git commit, git push

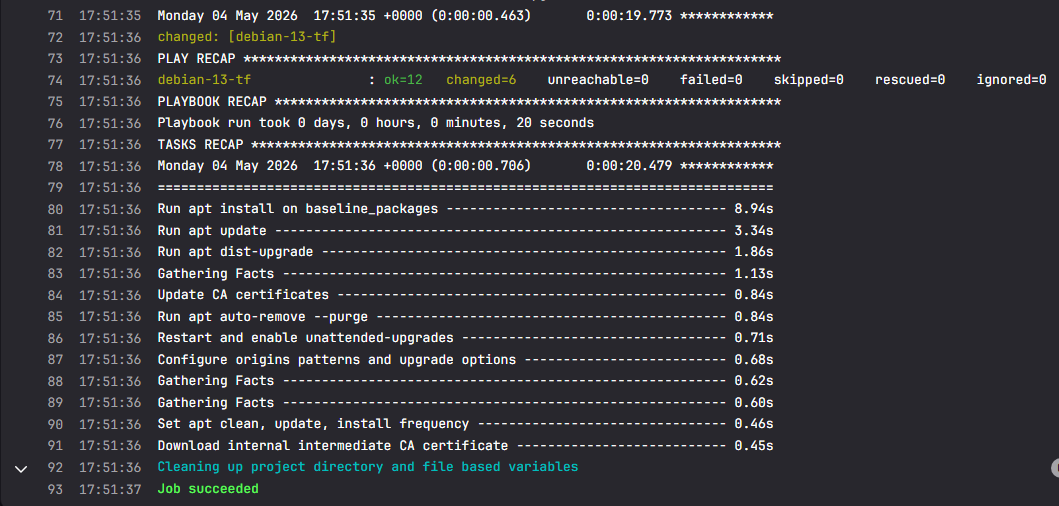

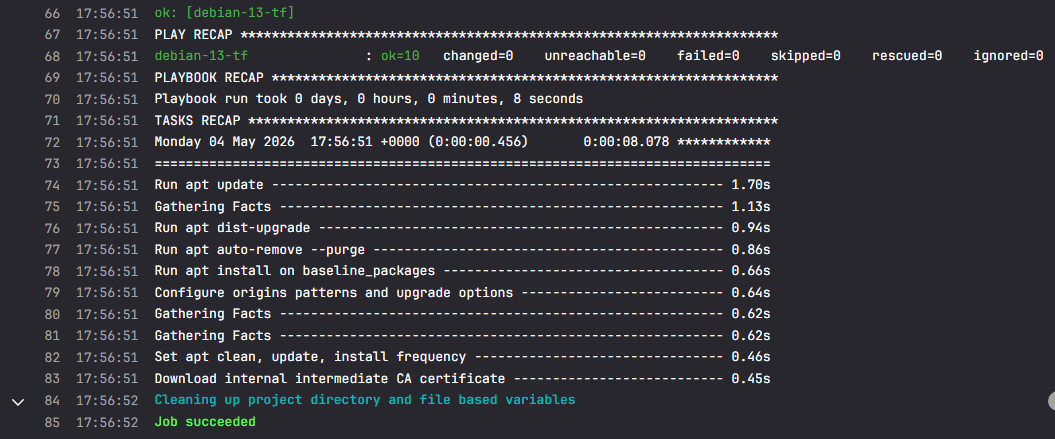

  • Let the pipeline apply the final deployment
• Briefly talked about adding new Terraform deployments moving forward

Pipeline Diagram

Ansible Overview

In the previous two modules — Terraform and Packer — we established that:

• IT teams use HashiCorp Packer to define system templates using code
• Then — as one example — teams use HashiCorp Terraform to:
  • Create plans around those templates and how they should be configured in various environments
    • CPU cores, Disk size, RAM, Cloud-Init, Networking, etc
• Then, deploy those plans
• Terraform has many more use-cases than just cloning VMs. You can use Terraform to create a resource pool, SDN, firewall rules, and deploy multiple VMs to the resource pool and SDN, as another example.

That's where Ansible comes in. Ansible is an agentless configuration management tool.

• No agent is required to be installed on the host
• If Ansible can reach it over the network, then all that remains is:
  • Authentication
  • Deciding if privileged access is required on the box
• Cloud-Init was used to populate:
  • The default user and public SSH key
  • In our Terraform plan, recall the following:

  # Cloud-Init Configuration (Matches 'cloud_init = true' in Packer)
  # This injects the hostname, SSH keys, and static IP into the cloned VM
  initialization {
    datastore_id = var.target_disk_storage_pool
    ip_config {
      ipv4 {
        address = "dhcp"
      }
    }
    dns {
      domain  = var.cloud_init_domain
      servers = var.clout_init_dns_servers
    }
    user_account {
      username = var.ssh_username
      keys     = [var.ssh_public_key]
    }
  }

cloud_init_domain      = "lab.home.internal" # Set according to the new VM's VLAN
clout_init_dns_servers = ["10.0.32.1"]

With all of this information in hand, we should be able to access the host using:

• Hostname: {hostname}.lab.home.internal — or dynamic inventory IP
• Username: ansible — cloud-init default user, has sudoers access
• SSH private key: Stored in Infisical

Development Strategy

The development strategy will be nearly identical to the way we did things in the past two modules — Terraform and Packer.

Remote Development Box

I will also be developing remotely as done in the previous module:

1. Remote development box
2. Connect using SSH
3. git clone the infrastructure/ansible repository
4. Open the directory
5. Start a new Git branch for the work

Local Iterative Refinement

1. Add the directory hierarchy
2. Add files and source code
3. Pull the docker image from GitLab Container Registry

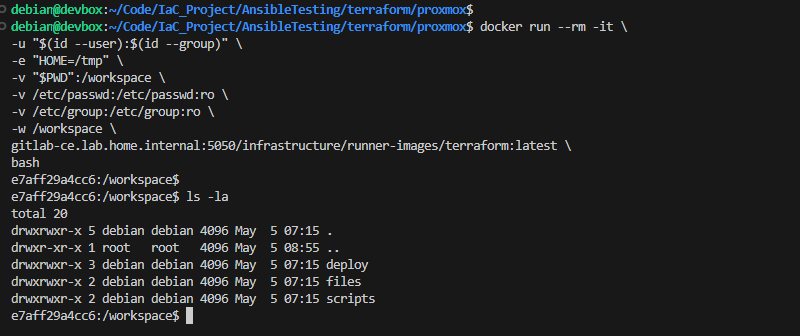

4. Start an ephemeral container and map the directory as a volume
5. Run infisical login with the previously defined machine ID
6. Run infisical export to load Ansible environment variables
7. Create a test target in Proxmox with a unique tag

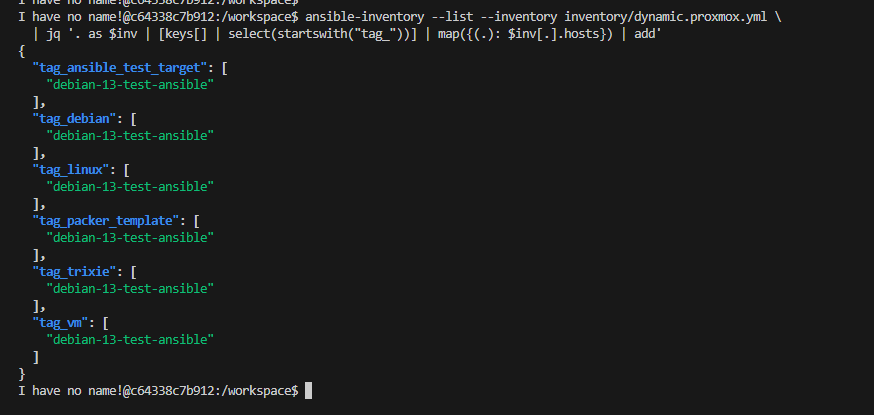

8. Set up the dynamic inventory
9. Create the group variables for your VM with your unique tag
10. Write the first iteration of your playbook targeting your test group

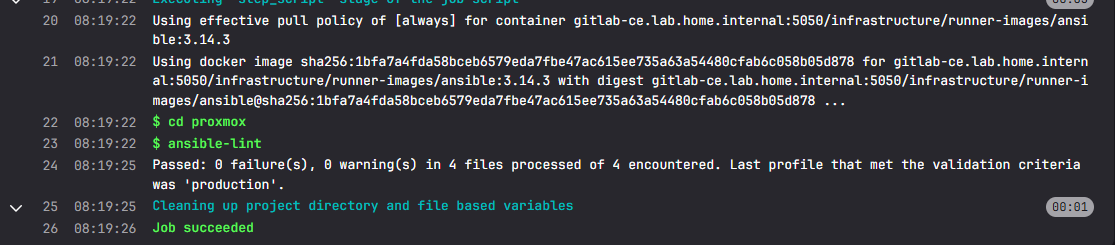

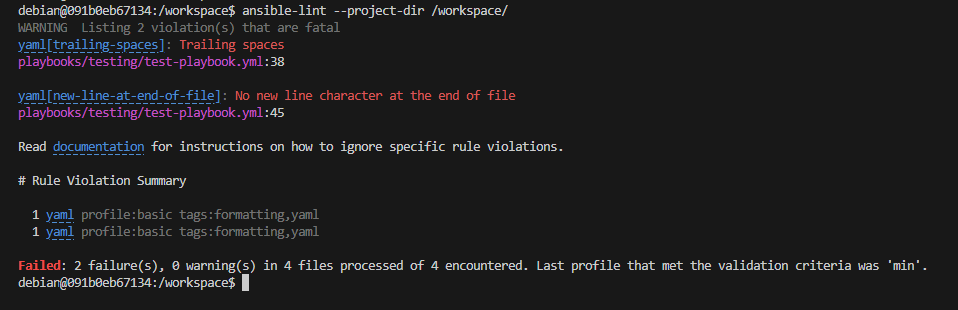

11. Run ansible-lint
    1. Fix any errors
       1. Run ansible-lint and repeat

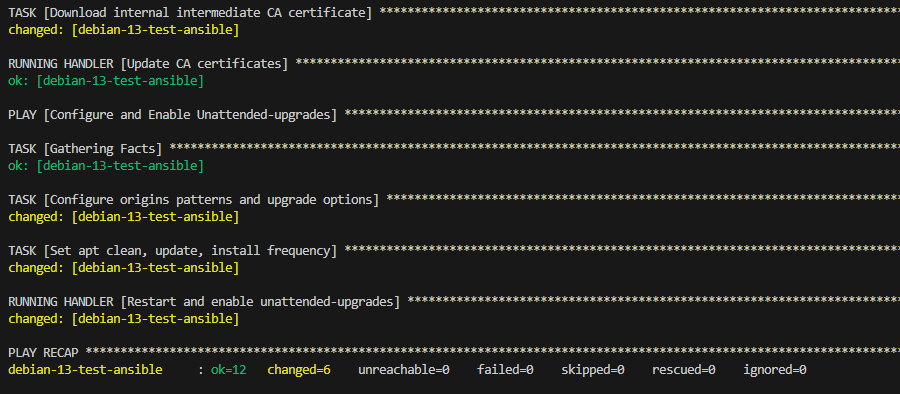

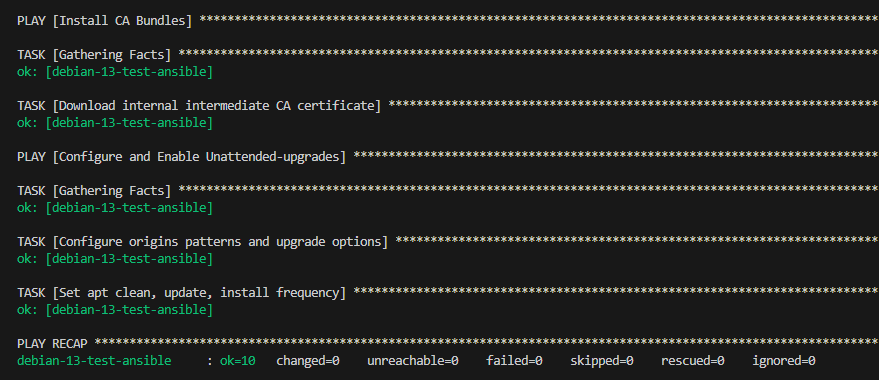

12. Run ansible-playbook, correct any issues, and repeat

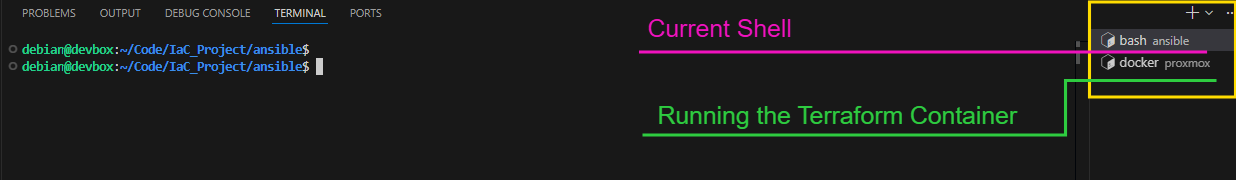

Development Environment

Remote Development Box

Like I did in the Terraform module — and the Packer module before it — I'll be using Visual Studio Code with a remote SSH connection to my developer box. Please refer back to the Packer module for guidance on setting up the initial connection.

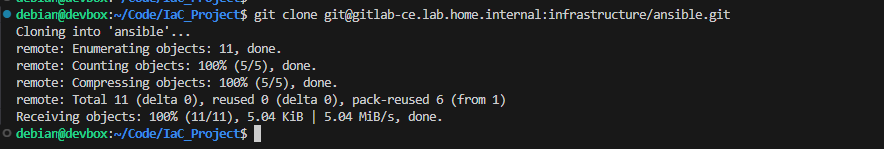

Cloning the Ansible Repository

In the Packer module, I also set up Git authentication using SSH keys. I'll refer you back to that module for setting that up, but you can also reference my notes here.

cd ~/Code/IaC_Project

git clone git@gitlab-ce.lab.home.internal:infrastructure/ansible.git

cd ansible

git checkout -b initial-development-work

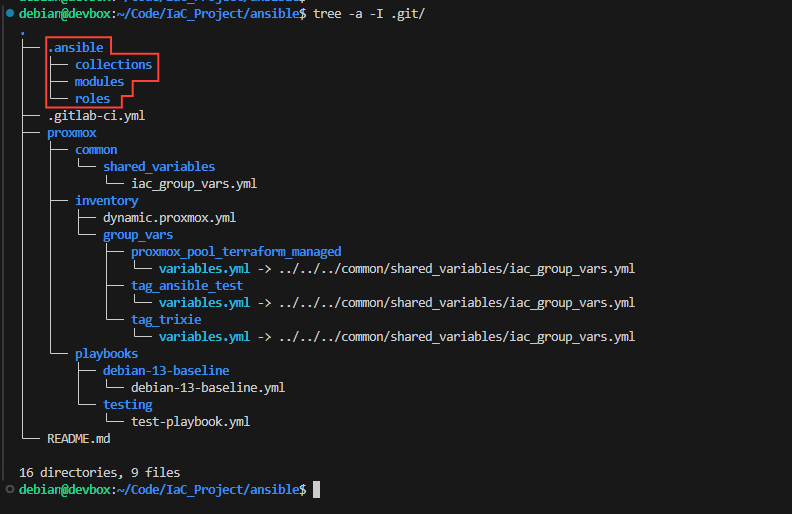

Repository Structure

ansible
|---- .gitignore
|---- .gitlab-ci.yml
'---- proxmox/
      |---- common/
      |     '---- shared_variables/          # Group variables that are repeated across multiple hosts
      |            '---- iac_group_vars.yml  # Will symbolically link to directories below
      |
      |---- inventory
      |     |---- dynamic.proxmox.yml        # File must end in "proxmox.yml" or "proxmox.yaml"
      |     '---- group_vars/
      |           |---- proxmox_pool_terraform_managed/
      |           '---- tag_ansible_test_target/
      |
      '---- playbooks/
            |---- debian-13-baseline/
            |     '---- debian-13-baseline.yml
            '---- testing/
                  '---- test-playbook.yml

Create the Core Structure

touch .gitignore

touch .gitlab-ci.yml

mkdir -p proxmox/common/shared_variables/

mkdir -p proxmox/inventory/group_vars/{proxmox_pool_terraform_managed,tag_ansible_test_target}

mkdir -p proxmox/playbooks/{debian-13-baseline,testing}

touch proxmox/common/shared_variables/iac_group_vars.yml

touch proxmox/inventory/dynamic.proxmox.yml

touch proxmox/playbooks/debian-13-baseline/debian-13-baseline.yml

touch proxmox/playbooks/testing/test-playbook.yml

Ansible Concepts

Inventory Precedence

When executing ansible on the command line, inventory will be discovered using the following precedence:

1. COMMAND LINE FLAG
   1. -i or --inventory flag pointing to an explicit inventory file
      1. ansible-playbook -i ./inventory/hosts.ini ./playbook/playbook.yml
2. ENVIRONMENT VARIABLE
   1. If -i or --inventory are NOT passed on the command line
      1. Check for a $ANSIBLE_INVENTORY environment variable
      2. export ANSIBLE_INVENTORY="${PWD}/inventory/hosts.ini"
      3. ansible-playbook ./playbook/playbook.yml
3. CONFIGURATION FILES
   1. If 1 or 2 are not defined
      1. Checks for $PWD/ansible.cfg — current working directory
         1. cd ./playbook/
         2. nano ansible.cfg
         3. inventory = /path/to/inventory.ini under [defaults]
         4. ansible-playbook ./playbook.yml
            1. Finds ansible.cfg in current directory references inventory configuration
      2. "$HOME/.ansible.cfg"
         1. If 1, 2, or 3.a are NOT found, check if a .ansible.cfg file exists in the user's home directory
         2. Checks if a inventory = /path/to/inventory.ini line exists
      3. /etc/ansbile/ansible.cfg
         1. If 1, 2, 3.a, or 3.b are NOT found, read the default /etc/ansible/ansible.cfg
         2. Checks if a inventory = /path/to/inventory.ini line exists
      4. /etc/ansible/hosts
         1. If 1, 2, 3.a, 3.b, or 3.c are NOT found, read this as the fallback

Merging Multiple Inventories

In the event you want to merge multiple inventories at runtime, you can use two methods:

Individual Files

• COMMAND LINE
  • -i /path/to/file1.yml -i /path/to/file2.yml
• ENVIRONMENT VARIABLE
  • export ANSIBLE_INVENTORY=/path/to/file1.yml,/path/to/file2.yml
• CONFIGURATION FILE
  • inventory = /path/to/file1.yml,/path/to/file2.yml

Directory of Files

Make the Directory

mkdir inventory

cp file1.yml inventory/

cp file2.yml inventory/

Pointing to the Directory

• COMMAND LINE
  • -i inventory/ ./playbook/playbook.yml
• ENVIRONMENT VARIABLE
  • export ANSIBLE_INVENTORY=inventory/
• CONFIGURATION FILE
  • inventory=/path/to/inventory/

Group Variables

Group variables are an absolute necessity when working with hosts in Ansible. Groups are logical units by which you can organize your hosts. Some examples of groups include:

• Operating system
• Region
• Category — production, staging, dev, web server, workstation, etc

Using the operating system as a logical grouping makes a lot of sense, because Ansible uses different protocols for managing them:

• Linux: SSH
• Windows: WinRM (default), SSH on newer Windows hosts

Group Variables Example

Make the Inventory Directory and File

mkdir inventory

cat << EOF > inventory/inventory.ini
# Aliases
dc1 192.168.10.5
dc2 192.168.10.6
workstation1 192.168.100.11
workstation2 192.168.100.12
web1 10.10.10.11
web2 10.10.10.12
mail1 10.10.10.15

# Windows Group
[windows]
dc1
dc2
workstation1
workstation2

# Linux Group
[linux]
web1
web2
mail1
EOF

Make the Group Variable Folders

mkdir -p inventory/group_vars/{windows,linux}

Example Group Variables

Windows

cat << EOF > inventory/group_vars/windows/windows.yml
---
ansible_user: domain_admin@mydomain.tld
ansible_password: $uper5tr0ng
ansible_connection: winrm
ansible_winrm_transport: ntlm
ansible_winrm_server_cert_validation: ignore

# Use the same user and pass when performing administrative tasks
ansible_become_user: "{{ ansible_user }}"
ansible_become_password: "{{ ansible_password }}"
ansible_become_method: runas

Linux

cat << EOF > inventory/group_vars/linux/linux.yml
---
ansible_ssh_private_key_file: /root/ssh-priv-key.pem
EOF

Group Variable Discovery

Consider this example ansible-playbook command example...

ansible-playbook -i inventory/inventory.ini "$HOME/playbooks/test/test.yml"

Because you passed -i inventory/inventory.ini on the command line, Ansible is going to inspect for variables with precedence.

1. First... check for .inventory/host_vars/{hostname} to check for host-specific variables
2. Then... inspect .inventory/inventory.ini for host-specific variables
3. Then... check for
   1. ./inventory/group_vars/windows/
   2. ./inventory/group_vars/linux/
   3. .inventory/group_vars/all — group-agnostic variables for all hosts
4. Then... check ./inventory/inventory.ini for [group:vars] definitions — child vars, then parent
5. Then... check ./inventory/inventory.ini for [all:vars]

Create a Test Target

Separating Dev and Prod

Proxmox VE Testing Resources

Similarly to how we did things in the Packer and Terraform modules, we will create a separate group, service account, and API token with permissions scoped to limited resources.

#!/bin/bash

REALM="pve"
GROUP="AnsibleTesting"
USERNAME="svc_devbox_ansible@${REALM}"
TOKEN_NAME="ansible-testing-token"
TF_TEST_POOL="terraform-testing"
TF_TEST_POOL_PATH="/pool/${TF_TEST_POOL}"

# Create the group
pveum group add $GROUP --comment "Group for any service accounts needing to test terrafrom plans"

# Create the service account
pveum user add $USERNAME --comment "Service account for devbox testing"

# Add the user to the group
pveum user modify $USERNAME --groups $GROUP

# AnsibleTesting needs to be able to list VMs in the Terraform Testing pool
pveum aclmod $TF_TEST_POOL_PATH --group $GROUP --role PVEAuditor

# Create an API token for the user
# No privilege separation, since inheriting off the group's permissions
pveum user token add $USERNAME $TOKEN_NAME --privsep 0

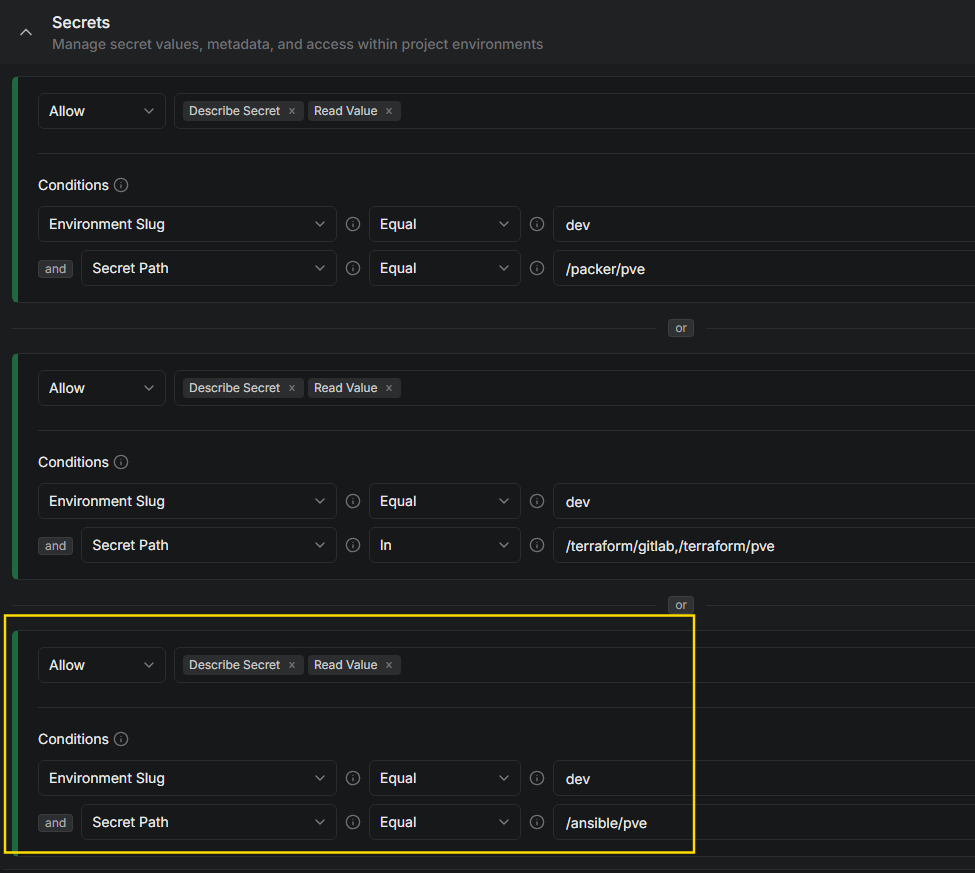

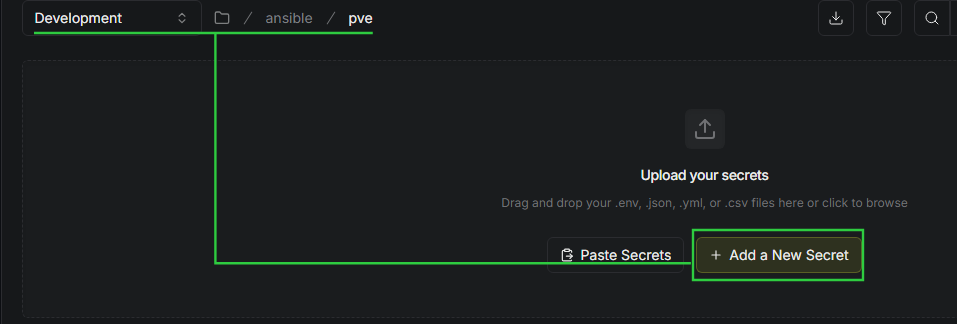

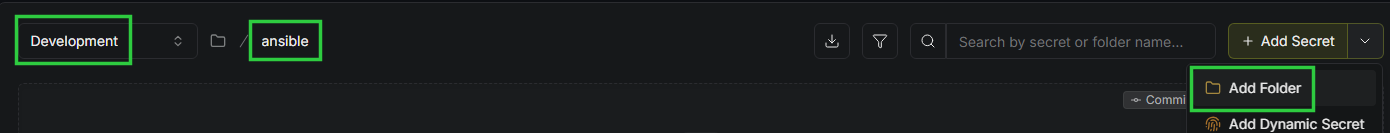

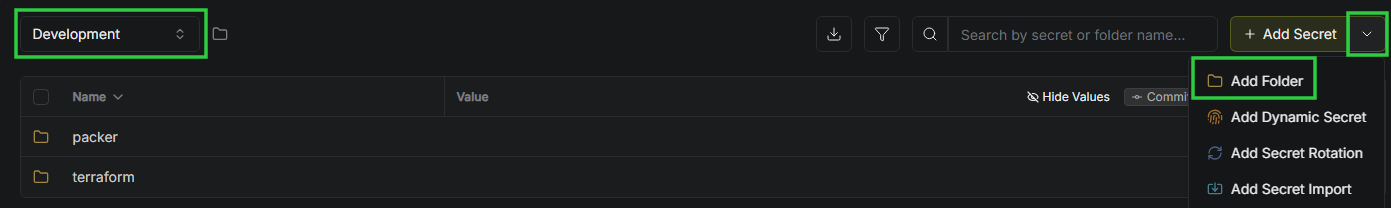

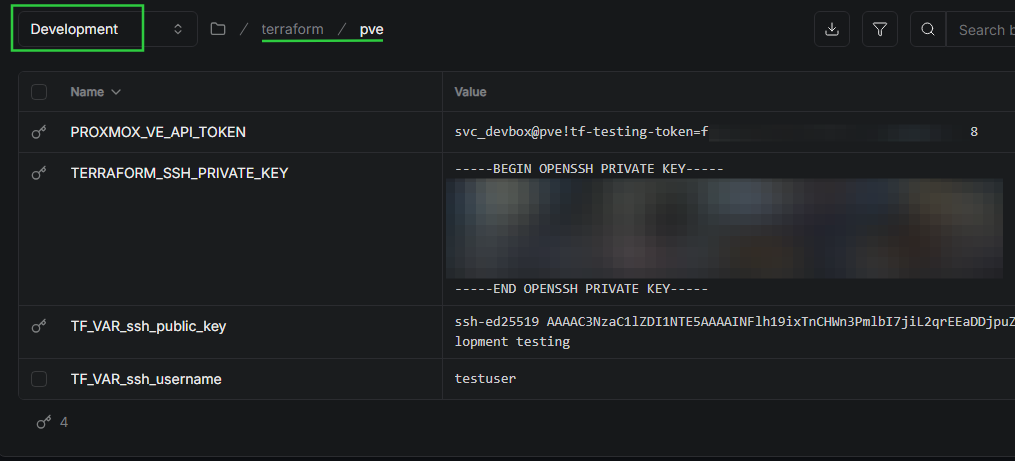

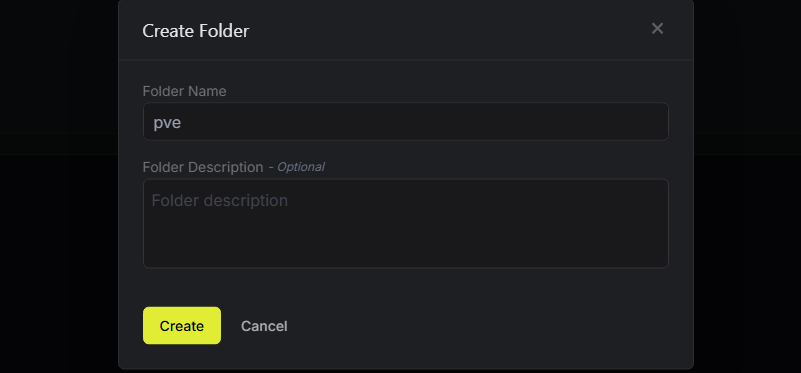

Save Secret in Infisical Dev

Secret 1

• Key: PROXMOX_URL
• Value: https://proxmox.lab.home.internal:8006

Secret 2

• Key: PROXMOX_USER
• Value: svc_devbox_ansible@pve

Secret 3

• Key: PROXMOX_TOKEN_ID
• Value: ansible-testing-token

Secret 4

• Key: PROXMOX_TOKEN_SECRET
• Value: 51exxxxx-xxxx-xxxx-xxxx-xxxxxxxxxd7c

Secret 5

• Key: ANSIBLE_HOST_KEY_CHECKING
• Value: False
• Comment: Disable Ansible SSH host key checking, as we don't have PKI-signed host keys

Test Clone of Packer Template

Make Directory to Store Test Code

mkdir ~/Code/IaC_Project/AnsibleTesting

cd ~/Code/IaC_Project/AnsibleTesting

Clone Our Working Template

git clone git@gitlab-ce.lab.home.internal:infrastructure/terraform.git

cd terraform

rm -rf .git/ ci-helpers/ .gitignore .gitlab-ci.yml README.md

cd proxmox/deploy/linux/debian/

cp -r debian-13-vm/ debian-13-test

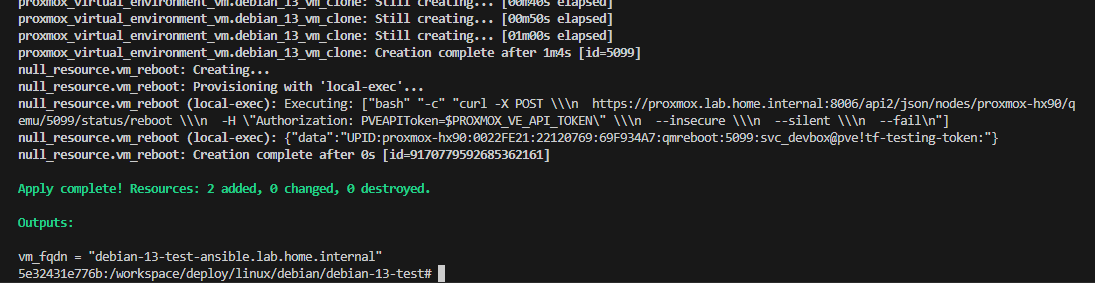

Modify the Test VM Code

cd ~/Code/IaC_Project/AnsibleTesting/terraform/proxmox/deploy/linux/debian/debian-13-test

rm backend.tf

nano debian-13-vm.auto.tfvars

vm_name                  = "debian-13-test-ansible"
vm_description           = "Debian 13 VM for testing Ansible playbook"
vm_tags                  = ["ansible-test-target"]
resource_pool            = "terraform-testing"

Run the Terraform Container

cd ~/Code/IaC_Project/AnsibleTesting/terraform/proxmox

docker run --rm -it \
-u "$(id --user):$(id --group)" \
-e "HOME=/tmp" \
-v "$PWD":/workspace \
-v /etc/passwd:/etc/passwd:ro \
-v /etc/group:/etc/group:ro \
-w /workspace \
gitlab-ce.lab.home.internal:5050/infrastructure/runner-images/terraform:latest \
bash

• Mount /etc/passwd and /etc/group from the host to the container to force the container to acknowledge our UID / GID
  • These files are already read-only on the host anyway
  • We want to launch the container with our UID and GID using the to ensure that any files created from within the container do not cause ownership issues inside the repository.

cd deploy/linux/debian/debian-13-test/

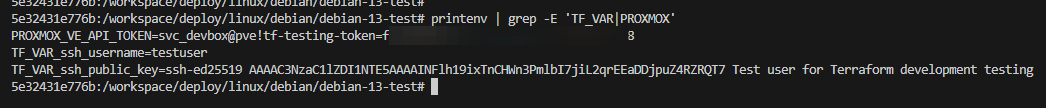

Fetch Secrets From Infisical Dev

When we import the secrets from /terraform/pve in the Development environment, the following will occur:

• TF_VAR_ssh_username and TF_VAR_ssh_public_key will be added to the Cloud-Init drive configuration of our test VM in the Terraform plan
• PROXMOX_VE_API_TOKEN will be used to build the VM in Proxmox VE
• We can echo -e $TERRAFORM_SSH_PRIVATE_KEY and pipe to ssh-add - to allow SSH key authentication via the ssh-agent

read -e -s -p 'Enter your machine ID (input hidden): ' machine_id
export MACHINE_ID="$machine_id"
read -e -s -p 'Enter your machine secret (input hidden): ' machine_secret
export MACHINE_SECRET="$machine_secret"
read -e -p 'Enter your Infisical project ID (input shown): ' infisical_project_id
export INFISICAL_PROJECT_ID="$infisical_project_id"

INFISICAL_ACCESS_TOKEN=$(infisical login \
--domain="https://secrets.lab.home.internal" \
--method="universal-auth" \
--client-id="${MACHINE_ID}" \
--client-secret="${MACHINE_SECRET}" \
--silent \
--plain)

eval $(infisical export \
--domain="https://secrets.lab.home.internal" \
--token="${INFISICAL_ACCESS_TOKEN}" \
--projectId="${INFISICAL_PROJECT_ID}" \
--env=dev \
--path="/terraform/pve" \
--format=dotenv-export \
--silent)

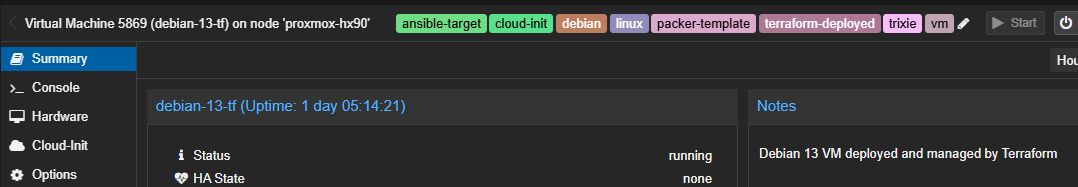

Deploy the Test VM

terraform init

terraform fmt .

terraform validate .

terraform plan -out=test-vm.tfplan

terraform apply "test-vm.tfplan"

Proxmox Dynamic Inventory

Overview

In the Ansible paradigm, it would be perfectly acceptable to have a static inventory.ini file. The only problem with that is:

• We may be deploying or destroying VMs / infrastructure
• We may move VMs to different VLANs or change the hostname
• We may introduce other changes to the environment that causes the hostname or IP address to change

It would highly unscalable to update the inventory.ini file every time a host comes online or goes offline. Instead, it would be much more scalable to use a dynamic inventory system that finds hosts specific conditions.

proxmox/inventory/

dynamic.proxmox.yml

---
plugin: community.proxmox.proxmox

# AUTHENTICATION
# ----------------------------------------------
# Using 'infisical export --format=dotenv-export'
# Brings in the following environment variables:
#   - $PROXMOX_TOKEN_ID
#   - $PROXMOX_TOKEN_SECRET
#   - $PROXMOX_URL
#   - $PROXMOX_USER
# These variables are automatically discovered by 'community.proxmox'
# ---------------------------------------------------------------

# ANSIBLE GENERAL
# ----------------------------------------------------
# Using ACME certs from internal PKI in my environment
# Ansible container has been configured to trust this CA
# -------------------------------------------------------
# Set to 'false' if you have the default PVE certs on your PVE nodes
validate_certs: true
# Gathers facts like tags, IPs, status, etc for hosts
want_facts: true


# DYNAMIC INVENTORY
# -----------------
# KEYED GROUPS
#   - This approach is truly the most dynamic
#   - Ansible will pull every VM / LXC you allow it to from PVE
#   - It will look at EVERY TAG and create groups for EVERY TAG
#   - Any tag with a hyphen will be sanitized for Jinja2 parsing
#   - Groups will be prefixed by "tag_"
#     - Tag: ansible-test      -> tag_ansible_test       <- group name
#     - Tag: debian            -> tag_debian             <- group name
#     - Tag: terraform-managed -> tag_terraform_managed  <- group name
#     - Tag: web_servers       -> tag_web_servers        <- group name
#     - etc...
# --------------------------------------------------------------------
keyed_groups:
  - key: proxmox_tags_parsed # group hosts by tag
    prefix: tag # keyword before the group name
    separator: "_" # character to add after the prefix


# TARGETING HOSTS
# ---------------
# It is recommended to add the 'compose:' block LATER
# First test WITHOUT the 'compose:' block by running:
#   - `ansible-inventory --list -i /path/to/dynamic.proxmox.yml`
# Inspect the JSON output and figure out how you want to target hosts
#   - FQDN?
#   - IP Address?
# The block below uses the FQDN, because of the DHCP Dynamic DNS in my environment
#   - Example: test-vm.lab.home.internal
# --------------------------------------------------------------------------------
compose:
  ansible_host: proxmox_name + '.' + proxmox_searchdomain


Shared Variables

common/shared_variables

iac_group_vars.yml

---
# Logging in with the username "ansible"
# This matches the cloud-init settings from the Terraform plan
ansible_user: "{{ lookup('ansible.builtin.env', 'SSH_USERNAME') }}"
# Set to true to allow the user to run commands with elevation
ansible_become: true
# Use the "sudo" method to elevate
ansible_become_method: sudo
# When running elevated commands, run as "root"
ansible_become_user: root


Setting up the Test Environment

Firewall Rules

1. Allow DevBox to reach PVE API
   1. Source: DevBox
      Source Port: any
   2. Destination: Proxmox Node(s)
      Destination Port: 8006
2. Allow DevBox to Pull from Container Registry
   1. Source: DevBox
      Source Port: any
   2. Destination: GitLab CE Server
      Destination Port: 5050
3. Allow DevBox to SSH to Target VM
   1. Source: DevBox
      Source Port: any
   2. Destination: Target VM VLAN — easiest solution
      Destination Port: 22

Install Docker on DevBox (Debian)

Debian

Learn how to install Docker Engine on Debian. These instructions cover the different installation methods, how to uninstall, and next steps.

Docker IncDocker Inc

sudo usermod -a -G docker $(whoami)

Pull the Ansible Image from GitLab

Docker Credential Helper

Docker Credential Help... | 0xBEN | Notes

Install Prerequisites sudo apt update && sudo apt install -y gpg pass pinentry-tty curl Setup Pass…

0xBEN | Notes

docker login gitlab-ce.lab.home.internal:5050

Pull the Ansible Image

docker pull gitlab-ce.lab.home.internal:5050/infrastructure/runner-images/ansible:latest

Testing the Ansible Container

Now is an excellent opportunity to test out pulling ansible from our Container Registry and making sure the containerized environment can run Ansible playbooks without a hitch. It also has the infisical CLI installed, so we should be ready to go.

cd ~/Code/IaC_Project/ansible/proxmox

docker run --rm -it \
-u "$(id --user):$(id --group)" \
-e "HOME=/tmp" \
-e "ANSIBLE_HOME=/tmp/.ansible" \
-e "XDG_CACHE_HOME=/tmp/.cache" \
-v "$PWD":/workspace \
-v /etc/passwd:/etc/passwd:ro \
-v /etc/group:/etc/group:ro \
-w /workspace/ \
gitlab-ce.lab.home.internal:5050/infrastructure/runner-images/ansible:latest \
bash

• The -e flags are to pass environment variables to suppress ansible-lint warnings
• Mount /etc/passwd and /etc/group from the host to the container to force the container to acknowledge our UID / GID
  • These files are already read-only on the host anyway
  • We want to launch the container with our UID and GID using the to ensure that any files created from within the container do not cause ownership issues inside the repository.

Infisical Access

In the Packer Module, we already took the following steps to facilitate Infisical access from DevBox:

• Created a custom DevBox Role role inside the IaC Project project
• Added a Machine Identity to IaC Project project
• Gave the DevBox Role role to the machine identity
• Created a Universal Auth token and saved it in a password vault

We just need to adjust the role slightly to allow DevBox to authenticate and pull dev and specifically /ansible/pve.

read -e -s -p 'Enter your machine ID (input hidden): ' machine_id
export MACHINE_ID="$machine_id"
read -e -s -p 'Enter your machine secret (input hidden): ' machine_secret
export MACHINE_SECRET="$machine_secret"
read -e -p 'Enter your Infisical project ID (input shown): ' infisical_project_id
export INFISICAL_PROJECT_ID="$infisical_project_id"

INFISICAL_ACCESS_TOKEN=$(infisical login \
--domain="https://secrets.lab.home.internal" \
--method="universal-auth" \
--client-id="${MACHINE_ID}" \
--client-secret="${MACHINE_SECRET}" \
--silent \
--plain)

eval $(infisical export \
--domain="https://secrets.lab.home.internal" \
--token="${INFISICAL_ACCESS_TOKEN}" \
--projectId="${INFISICAL_PROJECT_ID}" \
--env=dev \
--path="/ansible/pve" \
--format=dotenv-export \
--silent)

export SSH_PRIVATE_KEY=$(infisical secrets get TERRAFORM_SSH_PRIVATE_KEY \
--domain="https://secrets.lab.home.internal" \
--token="${INFISICAL_ACCESS_TOKEN}" \
--projectId="${INFISICAL_PROJECT_ID}" \
--env=dev \
--path="/terraform/pve" \
--output=dotenv \
--silent | sed ':a; N; $! ba; s/\n/\\n/g' | cut -d '=' -f 2-)

export SSH_USERNAME=$(infisical secrets get TF_VAR_ssh_username \
--domain="https://secrets.lab.home.internal" \
--token="${INFISICAL_ACCESS_TOKEN}" \
--projectId="${INFISICAL_PROJECT_ID}" \
--env=dev \
--path="/terraform/pve" \
--output=dotenv \
--silent | cut -d '=' -f 2-)

Testing the Dynamic Inventory

ansible-inventory --list --inventory inventory/dynamic.proxmox.yml \
  | jq '. as $inv | [keys[] | select(startswith("tag_"))] | map({(.): $inv[.].hosts}) | add'

Target the Test VM

Group Variables Overview

Assuming you've read the comments in dynamic.proxmox.yml above, you should now understand that the community.proxmox.proxmox plugin will execute the following based on our configuration:

1. Connect to Proxmox VE API using environment variables from Infisical
2. Query all VMs / LXCs / Node configurations in the environment
3. Proxmox VE will only return resources available to our token
4. Dynamic inventory keyed_groups will organize them into groups based on tags
   1. Prefix each group name with tag_
   2. Replace bad charcters — i.e. - becomes _
   3. So example, tag: ansible-test becomes ansible_test
   4. Example group name: tag_ansible_test
5. Then, dynamically compose: hostnames by:
   1. Referencing the VM name as proxmox_name
   2. Concatenate with . + proxmox_searchdomain from cloud-init settings
   3. Example:
      1. VM Name: ansible-test-target
      2. Cloud-Init Domain: .lab.home.internal
      3. FQDN: ansible-test-target.lab.home.internal — all facilitated by DHCP dynamic DNS

inventory/group_vars/

tag_ansible_test_target/

variables.yml

cd /workspace/inventory/group_vars/tag_ansible_test_target/

ln -s ../../../common/shared_variables/iac_group_vars.yml ./variables.yml

playbooks/

testing/

test-playbook.yml

---
# Debian 13 VM baseline configuration
# Update, Upgrade, and Install Packages
- name: Apt Packages
  hosts: tag_ansible_test_target # Targets /pool/terraform-managed
  become: true
  vars:
    baseline_packages:
      - htop
      - unzip
      - ca-certificates
      - gnupg
      - lsb-release
      - apt-listchanges
      - unattended-upgrades
  tasks:
    - name: Run apt update
      ansible.builtin.apt:
        update_cache: true

    - name: Run apt dist-upgrade
      ansible.builtin.apt:
        upgrade: dist

    - name: Run apt install on baseline_packages
      ansible.builtin.apt:
        name: "{{ baseline_packages }}"
        state: present

    - name: Run apt auto-remove --purge
      ansible.builtin.apt:
        autoremove: true
        purge: true

# Install Internal PKI Bundle
- name: Install CA Bundles
  hosts: tag_ansible_test_target
  become: true
  vars:
    sub_ca_server: "https://sub-ca.pki.home.internal"
    sub_ca_cert_url: "{{ sub_ca_server }}/roots.pem"
  tasks:
    - name: Download internal intermediate CA certificate
      ansible.builtin.get_url:
        url: "{{ sub_ca_cert_url }}"
        dest: /usr/local/share/ca-certificates/internal-intermediate.crt
        mode: '0644'
        validate_certs: false # Server isn't trusted yet
      notify: Update CA certificates # Matches the handler name...
  handlers:
    - name: Update CA certificates # ...here
      ansible.builtin.command: update-ca-certificates
      changed_when: false

# Enable unattended-upgrades package
- name: Configure and Enable Unattended-upgrades
  hosts: tag_ansible_test_target
  become: true
  tasks:
    - name: Configure origins patterns and upgrade options
      ansible.builtin.copy:
        dest: /etc/apt/apt.conf.d/50unattended-upgrades
        mode: '0644'
        content: |
          Unattended-Upgrade::Origins-Pattern {
            "origin=Debian,codename=${distro_codename}-updates";
            "origin=Debian,codename=${distro_codename},label=Debian";
            "origin=Debian,codename=${distro_codename},label=Debian-Security";
            "origin=Debian,codename=${distro_codename}-security,label=Debian-Security";
          };
          Unattended-Upgrade::AutoFixInterruptedDpkg "true";
          Unattended-Upgrade::InstallOnShutdown "false";
          Unattended-Upgrade::Remove-Unused-Kernel-Packages "true";
          Unattended-Upgrade::Remove-New-Unused-Dependencies "true";
          Unattended-Upgrade::Remove-Unused-Dependencies "true";
          Unattended-Upgrade::Automatic-Reboot "true";
          Unattended-Upgrade::Automatic-Reboot-WithUsers "true";
          Unattended-Upgrade::Automatic-Reboot-Time "04:00";
          Unattended-Upgrade::OnlyOnACPower "false";
      notify: Restart and enable unattended-upgrades # Matches the handler name...

    - name: Set apt clean, update, install frequency
      ansible.builtin.copy:
        dest: /etc/apt/apt.conf.d/20auto-upgrades
        mode: '0644'
        content: |
          APT::Periodic::Update-Package-Lists "1";
          APT::Periodic::Download-Upgradeable-Packages "1";
          APT::Periodic::AutocleanInterval "7";
          APT::Periodic::Unattended-Upgrade "1";
      notify: Restart and enable unattended-upgrades # Matches the handler name...
  handlers:
    - name: Restart and enable unattended-upgrades # ...here
      ansible.builtin.systemd_service:
        name: unattended-upgrades
        state: restarted
        enabled: true
        daemon_reload: true


Linting

cd /workspace/

ansible-lint --project-dir /workspace/

Go through the output here and correct any issues pointed out by ansible-lint. You want to fix those issues early, especially before they cause issues with your pipeline execution.

• I need to remove the space at the end of line 38 on test-playbook.yml
• I need to add a new line at the end of the file on test-playbook.yml

Test the Playbook

Based on everything we've discussed before, the following should happen:

1. Ansible loads ./inventory/dynamic.proxmox.yml
2. community.proxmox.proxmox plugin reads the following variables from the environment:
   1. PROXMOX_TOKEN_ID
   2. PROXMOX_TOKEN_SECRET
   3. PROXMOX_USER
   4. PROXMOX_URL
3. Connects to the Proxmox VE API queries all hosts
4. Organizes the VMs into groups based on tags
5. Creates host names based on proxmox_name + '.' + proxmox_searchdomain, forming the FQDN — i.e. debian-13-test-ansible.lab.home.internal
6. In the playbook, we have hosts: tag_ansible_test_target, which is formed from the tag we added earlier — ansible-test-target
7. Because the inventory file is at ./inventory/dynamic.proxmox.yml, Ansible checks for .inventory/group_vars/tag_ansible_test/
   1. It loads the .yml file found in this directory
   2. This .yml file tells Ansible how to connect to the host

cd /workspace/

eval $(ssh-agent)

echo -e "$SSH_PRIVATE_KEY" | ssh-add -

ansible-playbook \
--inventory ./inventory/dynamic.proxmox.yml \
./playbooks/testing/test-playbook.yml

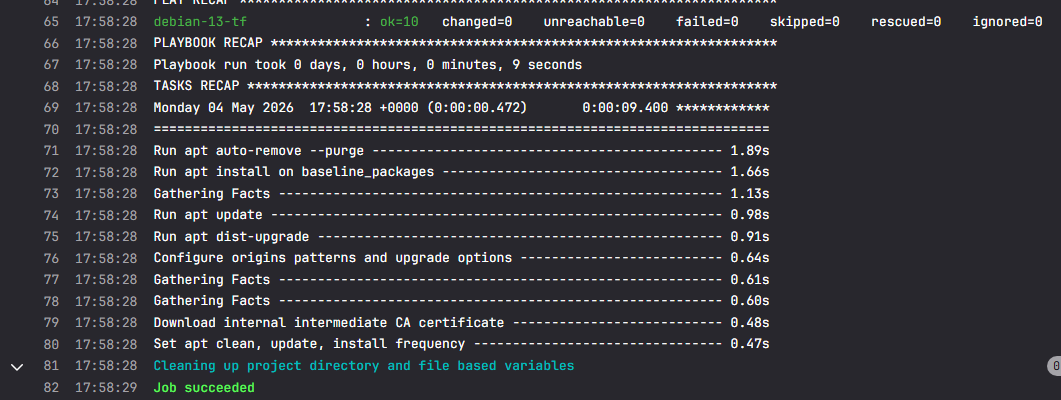

Idempotency

Idempotency is the concept that — no matter if the playbook is run 1 time or 10 times, the outcome should be the same. Ansible has fact checking built-in to determine if tasks need to be re-run.

Let's put it to the test.

ansible-playbook \
--inventory ./inventory/dynamic.proxmox.yml \
./playbooks/testing/test-playbook.yml

This makes Ansible incredibly efficient, because on consecutive runs, whether running for the 2nd time or the 100th time, it will only ever change what needs changing.

Destroy the Test VM

terraform plan -destroy -out=test-vm.tfplan

terraform apply test-vm.tfplan

cd ../../

rm -rf terraform

Production

Debian 13 VM

Now that we've thoroughly tested the Docker container, we're ready to set up the production environment.

Group Variables

cd ~/Code/IaC_Project/ansible/proxmox/inventory/group_vars

mkdir {tag_trixie,proxmox_pool_terraform_managed}

cd ~/Code/IaC_Project/ansible/proxmox/inventory/group_vars/tag_trixie

ln -s ../../../common/shared_variables/iac_group_vars.yml ./variables.yml

cd ~/Code/IaC_Project/ansible/proxmox/inventory/group_vars/proxmox_pool_terraform_managed

ln -s ../../../common/shared_variables/iac_group_vars.yml ./variables.yml

Playbook

cd ~/Code/IaC_Project/ansible/proxmox

mkdir playbooks/debian-13-baseline

proxmox/playbooks/debian-13-baseline

debian-13-baseline.yml

---
# Debian 13 VM baseline configuration
# Update, Upgrade, and Install Packages
- name: Apt Packages
  hosts: proxmox_pool_terraform_managed # Targets /pool/terraform-managed
  become: true
  vars:
    baseline_packages:
      - htop
      - unzip
      - ca-certificates
      - gnupg
      - lsb-release
      - apt-listchanges
      - unattended-upgrades
      - bat # cat clone with syntax highlighting
  tasks:
    - name: Run apt update
      ansible.builtin.apt:
        update_cache: true

    - name: Run apt dist-upgrade
      ansible.builtin.apt:
        upgrade: dist

    - name: Run apt install on baseline_packages
      ansible.builtin.apt:
        name: "{{ baseline_packages }}"
        state: present

    - name: Run apt auto-remove --purge
      ansible.builtin.apt:
        autoremove: true
        purge: true

# Install Internal PKI Bundle
- name: Install CA Bundles
  hosts: proxmox_pool_terraform_managed
  become: true
  vars:
    sub_ca_server: "https://sub-ca.pki.home.internal"
    sub_ca_cert_url: "{{ sub_ca_server }}/roots.pem"
  tasks:
    - name: Download internal intermediate CA certificate
      ansible.builtin.get_url:
        url: "{{ sub_ca_cert_url }}"
        dest: /usr/local/share/ca-certificates/internal-intermediate.crt
        mode: '0644'
        validate_certs: false # Server isn't trusted yet
      notify: Update CA certificates # Matches the handler name...
  handlers:
    - name: Update CA certificates # ...here
      ansible.builtin.command: update-ca-certificates
      changed_when: false

# Enable unattended-upgrades package
- name: Configure and Enable Unattended-upgrades
  hosts: proxmox_pool_terraform_managed
  become: true
  tasks:
    - name: Configure origins patterns and upgrade options
      ansible.builtin.copy:
        dest: /etc/apt/apt.conf.d/50unattended-upgrades
        mode: '0644'
        content: |
          Unattended-Upgrade::Origins-Pattern {
            "origin=Debian,codename=${distro_codename}-updates";
            "origin=Debian,codename=${distro_codename},label=Debian";
            "origin=Debian,codename=${distro_codename},label=Debian-Security";
            "origin=Debian,codename=${distro_codename}-security,label=Debian-Security";
          };
          Unattended-Upgrade::AutoFixInterruptedDpkg "true";
          Unattended-Upgrade::InstallOnShutdown "false";
          Unattended-Upgrade::Remove-Unused-Kernel-Packages "true";
          Unattended-Upgrade::Remove-New-Unused-Dependencies "true";
          Unattended-Upgrade::Remove-Unused-Dependencies "true";
          Unattended-Upgrade::Automatic-Reboot "true";
          Unattended-Upgrade::Automatic-Reboot-WithUsers "true";
          Unattended-Upgrade::Automatic-Reboot-Time "04:00";
          Unattended-Upgrade::OnlyOnACPower "false";
      notify: Restart and enable unattended-upgrades # Matches the handler name...

    - name: Set apt clean, update, install frequency
      ansible.builtin.copy:
        dest: /etc/apt/apt.conf.d/20auto-upgrades
        mode: '0644'
        content: |
          APT::Periodic::Update-Package-Lists "1";
          APT::Periodic::Download-Upgradeable-Packages "1";
          APT::Periodic::AutocleanInterval "7";
          APT::Periodic::Unattended-Upgrade "1";
      notify: Restart and enable unattended-upgrades # Matches the handler name...
  handlers:
    - name: Restart and enable unattended-upgrades # ...here
      ansible.builtin.systemd_service:
        name: unattended-upgrades
        state: restarted
        enabled: true
        daemon_reload: true


Linting

Again, run ansible-lint early. You don't want to waste pipeline cycles over simple linting issues.

cd /workspace/

ansible-lint --project-dir /workspace/

Look over the output, fix any issues, and re-run ansible-lint until you get a passing result.

Taking Inventory of the Repo

Identify Sensitive Directories and Files

cd ~/Code/IaC_Project/ansible/

tree -a -I .git/

.gitignore

# Ignore all Ansible cache files
**/.ansible/

Pipeline Configuration

.gitlab-ci.yml

# Source in the Infisical authentication helper
include:
  - project: 'infrastructure/ci-helpers'
    ref: main
    file: '/infisical.gitlab-ci.yml'
  - template: Security/Secret-Detection.gitlab-ci.yml
  - template: Security/SAST.gitlab-ci.yml

# Trigger pipeline in the web, merge requests to main (or other default), and on schedules
workflow:
  rules:
    - if: $CI_PIPELINE_SOURCE == "web"

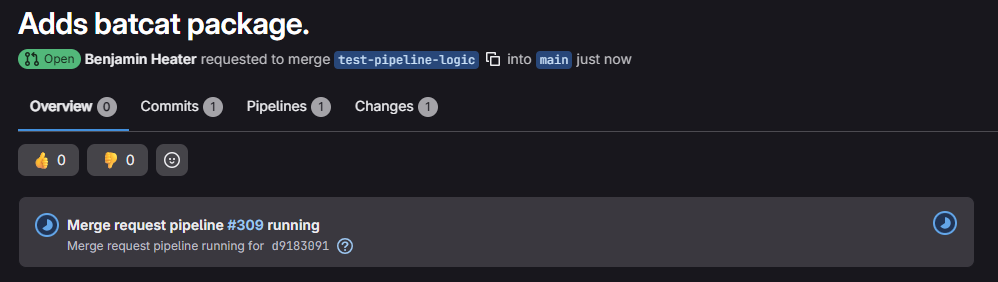

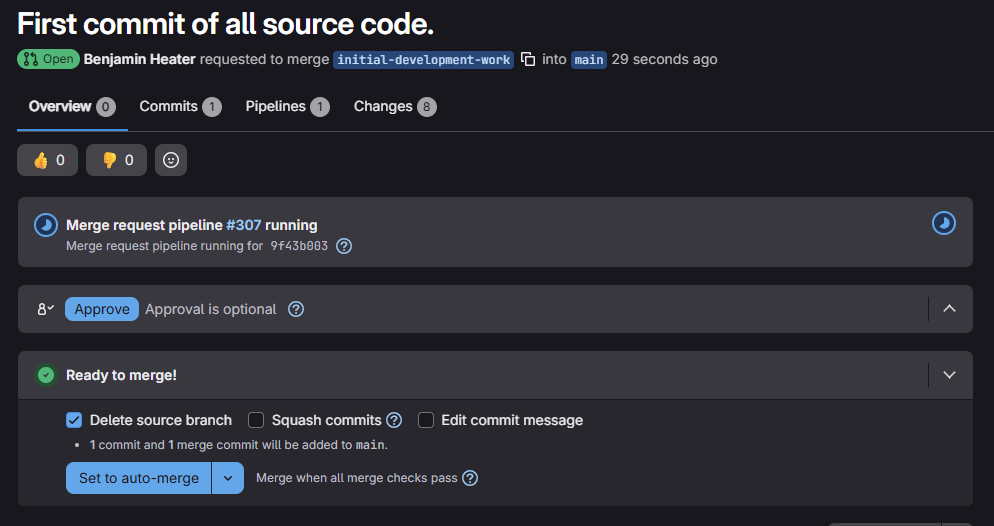

    - if: $CI_PIPELINE_SOURCE == "merge_request_event"
    - if: $CI_PIPELINE_SOURCE == "schedule"

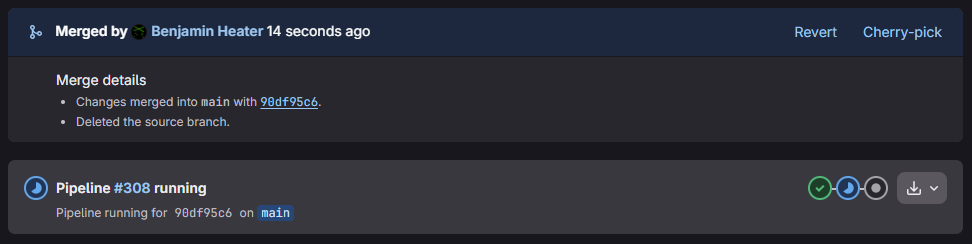

    - if: $CI_COMMIT_BRANCH == $CI_DEFAULT_BRANCH

# Order of stages to run the pipeline

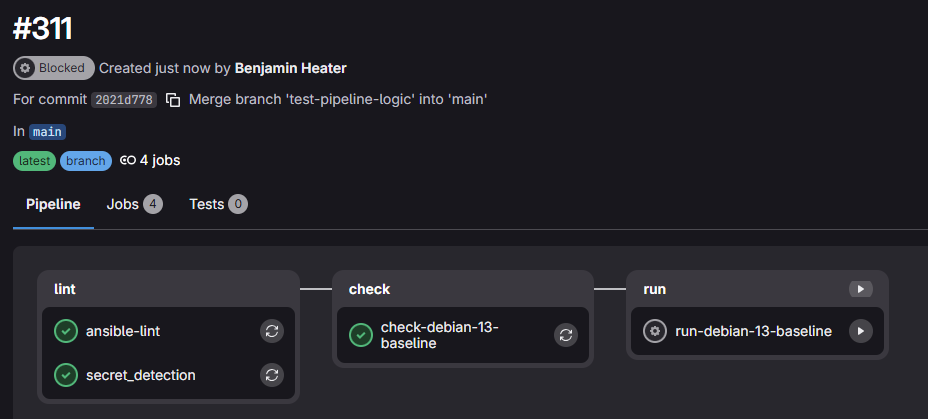

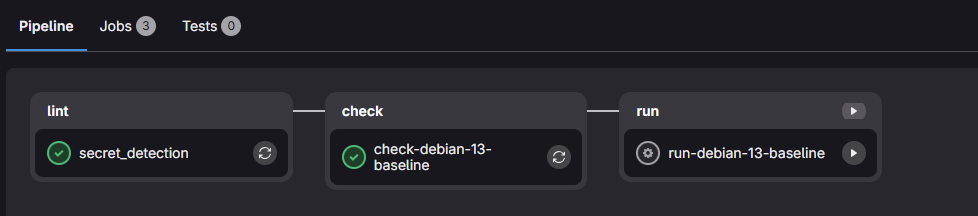

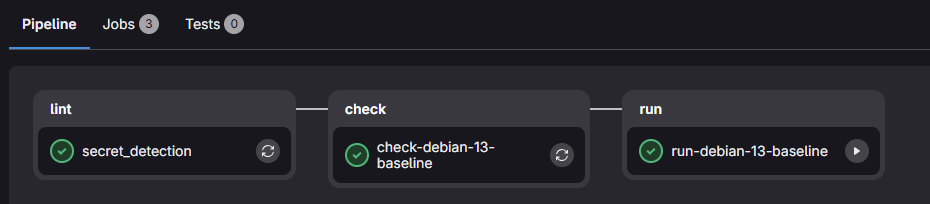

stages:
  - lint
  - check
  - run

# ----- SECRETS SCANNING START ----- #

sast:
  stage: lint

secret_detection:
  stage: lint

# ----- SECRETS SCANNING END ----- #

# Global pipeline variables
# Authentication to container registry to pull Dockerized ansible
variables:
  ANSIBLE_IMAGE: "$CI_REGISTRY/infrastructure/runner-images/ansible:${ANSIBLE_VERSION}" # References version variable from group CI/CD settings
  DOCKER_AUTH_CONFIG: >
    {
      "auths": {
        "$CI_REGISTRY": {
          "username": "$CI_REGISTRY_USER",
          "password": "$CI_JOB_TOKEN"
        }
      }
    }
  # Ansible configurations as environment variables
  # Alternatively, these can be set in a "ansible.cfg" file
  # Define formatting and profiling configurations to make output more readable
  ANSIBLE_STDOUT_CALLBACK: "default"
  ANSIBLE_CALLBACK_RESULT_FORMAT: "yaml"
  ANSIBLE_FORCE_COLOR: "true"
  ANSIBLE_LOAD_CALLBACK_PLUGINS: "true"
  ANSIBLE_CALLBACKS_ENABLED: "ansible.posix.timer,ansible.posix.profile_tasks"

# ---- Hidden Jobs (i.e. Helper Functions) ----#

.syntax-check:
  image: $ANSIBLE_IMAGE
  interruptible: true
  extends: .infisical-auth # Requires infisical as it must pull inventory to run syntax check
  stage: check
  tags: [ansible] # Triggers protected runner
  variables:
      INFISICAL_SECRET_PATH: "/ansible/pve" # Pull prod secrets using Infisical OIDC
  before_script:
    - !reference [.infisical-auth, before_script]
  script:
    - export ANSIBLE_INVENTORY=${INVENTORY_FILE}
    - ansible-playbook --syntax-check ${PLAYBOOK_FILE}
    - echo "Playbook syntax check passed."
  rules:
    # Rules are evaluated from top to bottom, so put this first
    # Do not run this hidden job on scheduled jobs against the default branch
    # See ".run-playbook" rules for more details on this "if:" block
    - if: $CI_PIPELINE_SOURCE == "schedule" && $CI_COMMIT_BRANCH == $CI_DEFAULT_BRANCH
      when: never
    # Triggers job any time code is commited to default branch
    # But only if code changed on the target files
    - if: $CI_COMMIT_BRANCH == $CI_DEFAULT_BRANCH
      changes:
        - "${INVENTORY_FILE}"
        - "${PLAYBOOK_FILE}"
    # Job automatically runs on manual web trigger
    - if: $CI_PIPELINE_SOURCE == "web"

.run-playbook:
  image: $ANSIBLE_IMAGE
  extends: .infisical-auth
  stage: run
  tags: [ansible] # Triggers protected runner
  variables:
      INFISICAL_SECRET_PATH: "/ansible/pve" # Pull prod secrets using Infisical OIDC
  before_script:
    - !reference [.infisical-auth, before_script]
  script:
    # The top-two "export" commands leverage the $INFISICAL_ACCESS_TOKEN variable
    # That is exported by the ".infisical-auth" helper, and therefore has the scope
    # Of OIDC token access
    - |
      export SSH_PRIVATE_KEY=$(infisical secrets get TERRAFORM_SSH_PRIVATE_KEY \
        --domain="https://secrets.lab.home.internal" \
        --token="${INFISICAL_ACCESS_TOKEN}" \
        --projectId="${INFISICAL_PROJECT_ID}" \
        --env=prod \
        --path="/terraform/pve" \
        --output=dotenv \
        --silent | sed ':a; N; $! ba; s/\n/\\n/g' | cut -d '=' -f 2-)
      export SSH_USERNAME=$(infisical secrets get TF_VAR_ssh_username \
        --domain="https://secrets.lab.home.internal" \
        --token="${INFISICAL_ACCESS_TOKEN}" \
        --projectId="${INFISICAL_PROJECT_ID}" \
        --env=prod \
        --path="/terraform/pve" \
        --output=dotenv \
        --silent | cut -d '=' -f 2-)
    - eval $(ssh-agent -s)
    - echo -e "$SSH_PRIVATE_KEY" | ssh-add -
    - export ANSIBLE_INVENTORY=${INVENTORY_FILE}
    - ansible-playbook ${PLAYBOOK_FILE}
  rules:
    # Rules are evaluated top to bottom, so this must come first
    # It wouldn't make much sense to only run ansible-playbook on commit to main
    # Or, always have to trigger the job manually in the web

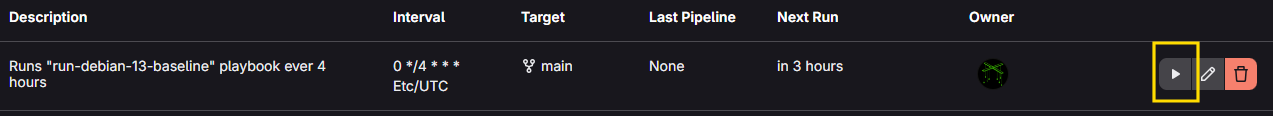

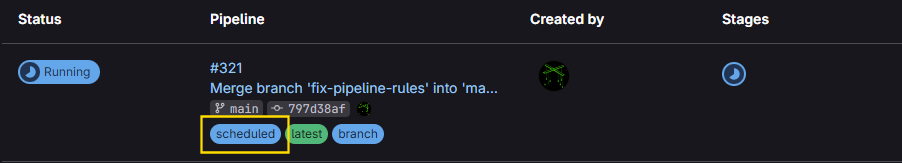

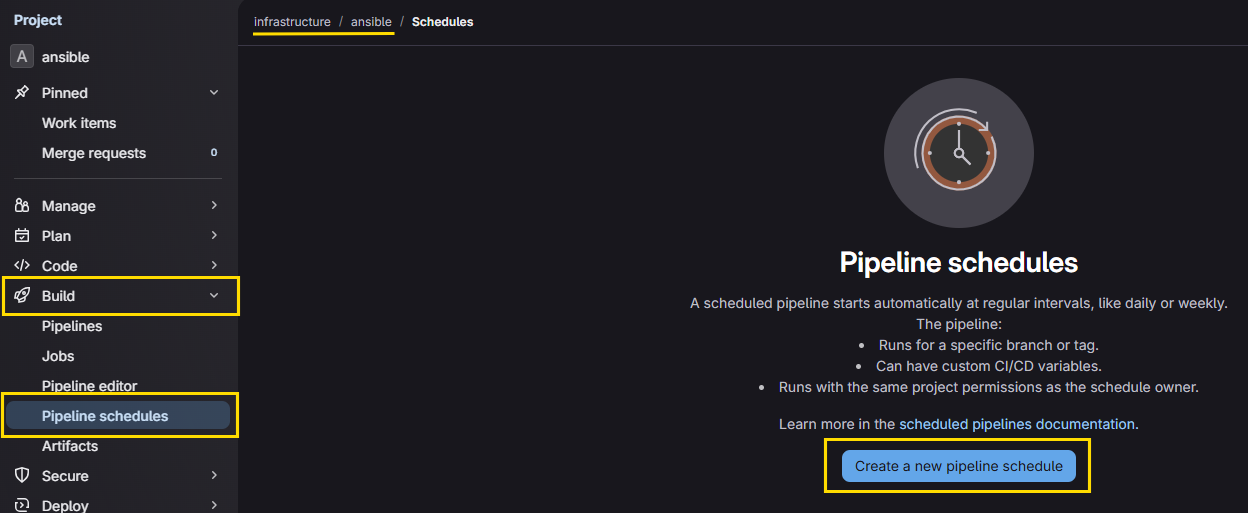

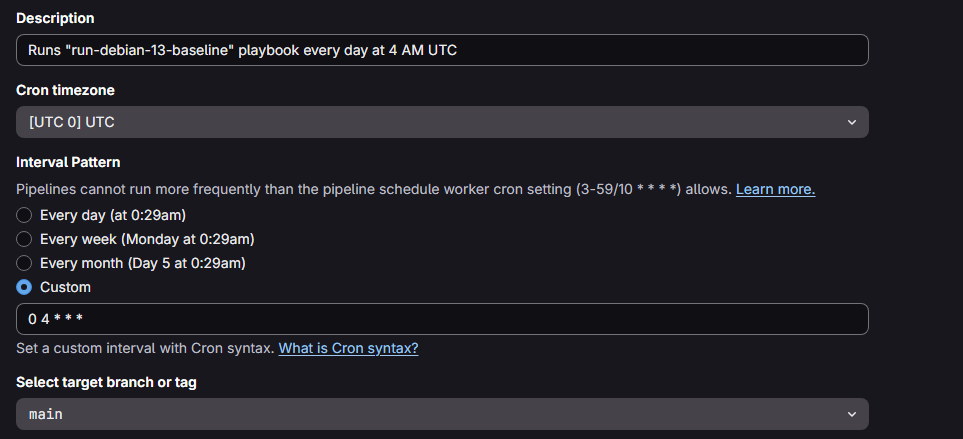

    # GitLab has a pipeline scheduler, whereby we'll pass create the schedule and...

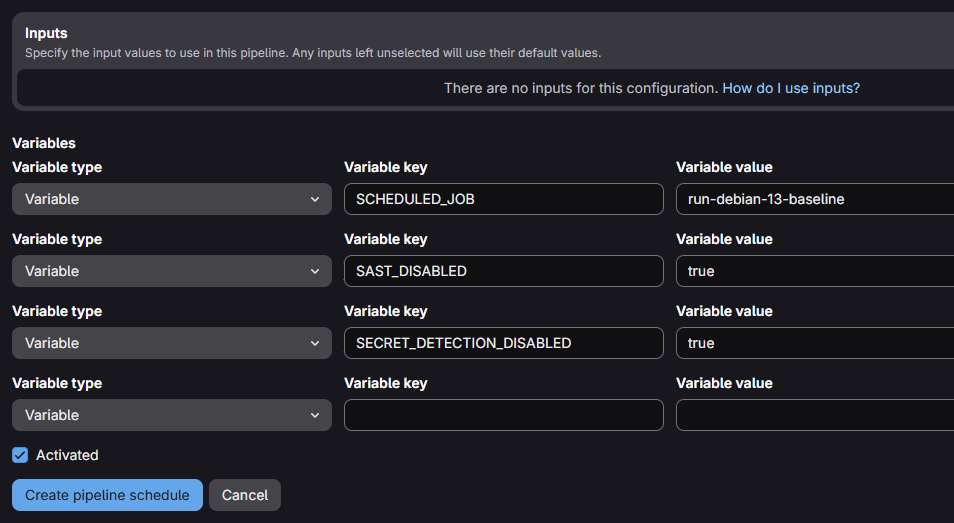

    #   - Add a variable to the schedule:
    #       Variable: "SCHEDULED_JOB"
    #       Value:    "run-debian-13-baseline" (for example)
    # Because this is a hidden job, it will always note the calling job as $CI_JOB_NAME
    #   - Since "run-debian-13-baseline" below calls this hidden job
    #   - The $CI_JOB_NAME variable will match the scheduled job variable
    # This rule also only allows the scheduler to run it on the "default" branch
    - if: >-
        $CI_PIPELINE_SOURCE == "schedule" &&
        $CI_COMMIT_BRANCH == $CI_DEFAULT_BRANCH &&
        $SCHEDULED_JOB == $CI_JOB_NAME
      when: on_success
    # Triggers job any time code is commited to default branch
    # But only if code changed on the target files
    - if: $CI_COMMIT_BRANCH == $CI_DEFAULT_BRANCH
      changes:
        - "${INVENTORY_FILE}"
        - "${PLAYBOOK_FILE}"
      when: manual
    # Job waits for user to start on manual web trigger
    - if: $CI_PIPELINE_SOURCE == "web"
      when: manual
  timeout: 1 hour


# ---- LINTER  ---- #

ansible-lint:
  image: $ANSIBLE_IMAGE
  interruptible: true
  stage: lint
  tags: [lint] # Triggers unprotected runner
  script:
    - cd proxmox
    - ansible-lint
  rules:
    # Rules are evaluated from top to bottom, so put this first
    # Do not run this job on scheduled jobs against the default branch
    # See ".run-playbook" rules for more details on this "if:" block
    - if: $CI_PIPELINE_SOURCE == "schedule" && $CI_COMMIT_BRANCH == $CI_DEFAULT_BRANCH
      when: never
    # Triggers job when merge request created
    # But only if code changed inside the working directory
    # Automatically runs
    - if: $CI_PIPELINE_SOURCE == "merge_request_event"
      changes:
        - "proxmox/**/*"
    # Job automatically runs on manual web trigger
    # Automatically runs
    - if: $CI_PIPELINE_SOURCE == "web"


# ---- DEBIAN 13 BASELINE ---- #

check-debian-13-baseline:
  extends: .syntax-check
  variables:
    INVENTORY_FILE: "proxmox/inventory/dynamic.proxmox.yml"
    PLAYBOOK_FILE: "proxmox/playbooks/debian-13-baseline/debian-13-baseline.yml"

run-debian-13-baseline:
  extends: .run-playbook
  variables:
    INVENTORY_FILE: "proxmox/inventory/dynamic.proxmox.yml"
    PLAYBOOK_FILE: "proxmox/playbooks/debian-13-baseline/debian-13-baseline.yml"

Merge Request

Quick Review

We're ready to commit the code to the repository, but first, a quick review of what we've done.

On the DevBox

• We cloned the Packer template and created a test target
• We've defined all of the source code
• We've pulled the terraform Docker image from the container registry
  • Tested infisical export from prod
• Pulled inventory from Proxmox VE using dynamic.proxmox.yml
• Tested ansible-playbook on the test VM successfully
• Wrote the production playbook and checked it with the --check flag

Firewall Rules

1. Allow Protected Runner to reach PVE API
   1. Source: Protected Runner
      Source Port: any
   2. Destination: Proxmox Node(s)
      Destination Port: 8006
2. Allow Protected Runner to Pull from Container Registry
   1. Source: Protected Runner
      Source Port: any
   2. Destination: GitLab CE Server
      Destination Port: 5050
3. Allow Unprotected Runner to Pull from Container Registry
   1. Source: Unprotected Runner
      Source Port: any
   2. Destination: GitLab CE Server
      Destination Port: 5050
4. Allow Protected Runner to SSH to Target VM
   1. Source: Protected Runner
      Source Port: any
   2. Destination: Target VM VLAN — easiest solution
      Destination Port: 22

Commit the Code

cd ~/Code/IaC_Project/ansible

git add .

git commit -m "First commit of all source code."

git push -u origin initial-development-work -o merge_request.create

Inspect the Merge Request Pipeline

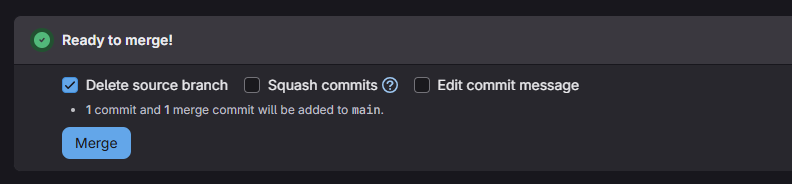

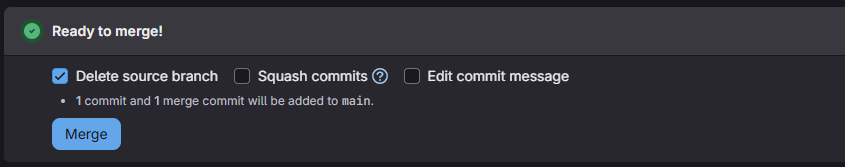

Merge into Main

git switch main

git pull --prune

git branch -d initial-development-work

Pipeline Sanity Check

Code Change

We can make a very cosmetic change to something in debian-13-baseline.yml — say adding an extra package to the apt tasks.

cd ~/Code/IaC_Project/ansible

git checkout -b test-pipeline-logic

BEFORE: debian-13-baseline.yml

    baseline_packages:
      - htop
      - unzip
      - ca-certificates
      - gnupg
      - lsb-release
      - apt-listchanges
      - unattended-upgrades

AFTER: debian-13-baseline.yml

    baseline_packages:
      - htop
      - unzip
      - ca-certificates
      - gnupg
      - lsb-release
      - apt-listchanges
      - unattended-upgrades
      - bat # cat clone with syntax highlighting

git add . && git commit -m "Adds batcat package."

git push -u origin test-pipeline-logic -o merge_request.create

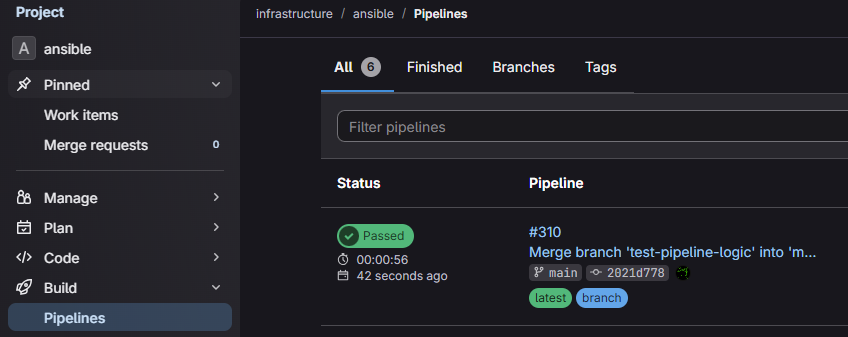

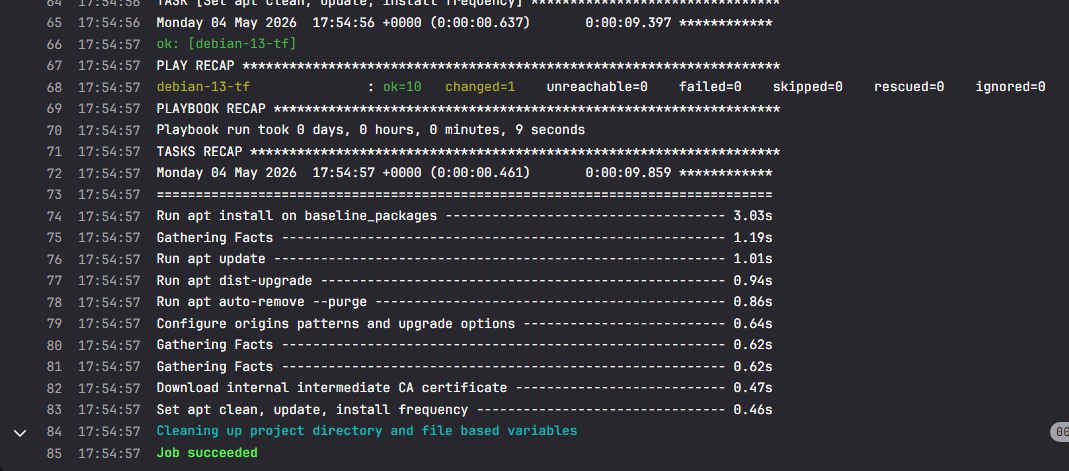

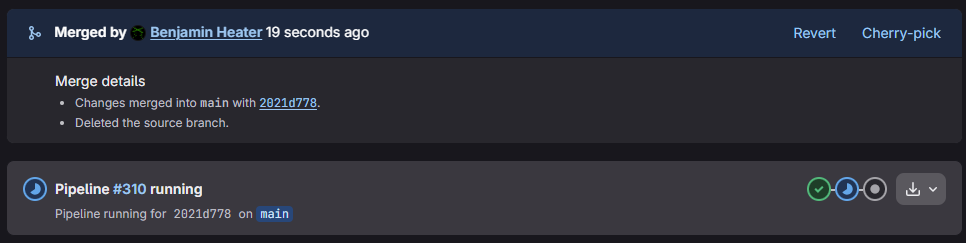

Manual Pipeline Run

cd ~/Code/IaC_Project/ansible

git switch main && git pull --prune

git branch -d test-pipeline-logic

Scheduled Pipeline Job

Create a New Pipeline Schedule

    - if: >-
        $CI_PIPELINE_SOURCE == "schedule" &&
        $CI_COMMIT_BRANCH == $CI_DEFAULT_BRANCH &&
        $SCHEDULED_JOB == $CI_JOB_NAME
      when: on_success

run-debian-13-baseline:
  extends: .run-playbook
  variables:
    INVENTORY_FILE: "proxmox/inventory/dynamic.proxmox.yml"
    PLAYBOOK_FILE: "proxmox/playbooks/debian-13-baseline/debian-13-baseline.yml"

Effectively, what's happening is...

1. The scheduler runs the .gitlab-ci.yml pipeline with SCHEDULED_JOB=run-debian-13-baseline.
2. The entire pipeline runs, but each job's rules: block will determine what executes based on the if: $CI_PIPELINE_SOURCE == "schedule" condition and any other Boolean logic along with it
   1. Rules are evaluated from top to bottom, so rule ordering matters when controlling what runs in scheduled jobs
3. During pipeline execution, check-debian-13-baseline will run but will be blocked by its rules: conditions
4. During pipeline execution, run-debian-13-baseline will run due to its rules: conditions
   1. When it calls .run-playbook, the variable CI_JOB_NAME=run-debian-13-baseline will be set
   2. This causes $SCHEDULED_JOB == $CI_JOB_NAME to evaluate to true
   3. And because it's running on main, the job will execute

The Case for Modular Schedules

In the example above, we created a pipeline schedule that runs a single pipeline job based on rules: blocks and $SCHEDULED_JOB name matching.

It's logical to assume that as you experiment, you're likely to add additional infrastructure to your lab such as:

• Ubuntu Packer template
• Ubuntu Terraform plan
• Ansible playbook to configure Ubuntu hosts — e.g. run-ubuntu-baseline
• Ansible playbook to configure security settings — e.g. run-security-hardening
• Etc.

Some reasons for this include:

1. Single Point of Failure — If one job fails in the pipeline, the whole pipeline fails
2. Differing Schedules — You may want to run different run- playbooks at different schedules
3. Manual Triggers — If they're all lumped in one pipeline, a manual trigger starts all jobs

Moving forward, your workflow should be:

1. Develop the playbook, test it locally on your DevBox
2. Test it on the merge request pipeline
3. Create a scheduled job with the following variables
   1. SCHEDULED_JOB : run-pipeline-job-name
   2. SAST_DISABLED : true
   3. SCHEDULED_JOB : true

Closing the Ansible Module

Quick Review

Lessons Learned

• We established the model of local iterative refinement
  • We don't want to test and troubleshoot in the pipeline, as it's too time-consuming
  • We do want to test and troubleshoot locally in our development environment while we debug issues until a playbook successfully runs
• We established some core concepts of Ansible
• We identified the need for a separate Proxmox VE token that would be scoped solely to /pool/terraform-testing
• We identified the workflow for testing Ansible Playbooks in the development environment
  • Clone and de-git the terraform repo to keep the tests out of source control
  • Copy a Terraform plan and modify .auto.tfvars to create a VM in /pool/terraform-testing
  • Launch the terraform container and terraform plan and terraform apply
  • Create a group_vars directory that matches the test VM's tag
  • Symbolically link the iac_group_vars.yml file in this directory
  • Draft your playbook and ansible-lint it, then test with ansible-playbook
• We also touched on the concept of idempotency

Moving Forward

• Our pipeline for debian-13-vm should now be stable enough that we can:
  • Start a new feature branch
  • Make changes to the template or variables
  • git add ., git commit, and git push and let the pipeline handle future builds
• For new Ansible playbooks...
  • You'll create your source code and repeat the local iterative refinement until you have a successful build
    • Use your ansible container from the GitLab Container Registry
    • Log into Infisical with universal auth and import secrets from
  • Then, after testing, you'll update .gitlab-ci.yml with any new jobs required to apply your Ansible playbooks
  • git add, git commit, and git push your new template and pipeline
• Updating your README.md
  • At some point, you should update your README.md file
  • In this file, you should outline the steps you (or other developers) should take when carrying out local development and testing and commits to production

Helpful Links

Community.Proxmox — Ansible Community Documentation

Ansible playbooks — Ansible Community Documentation

GitHub - taruch/ansible-examples: A few starter examples of ansible playbooks, to show features and how they work together. See http://galaxy.ansible.com for example roles from the Ansible community for deploying many popular applications.

A few starter examples of ansible playbooks, to show features and how they work together. See http://galaxy.ansible.com for example roles from the Ansible community for deploying many popular appl…

GitHubtaruch

Next Step

Infrastructure-as-Code with Proxmox: Conclusion

In this module, we’ll discuss some lingering ideas for the project, and closing the loop on some technical debt.

0xBEN0xBEN
